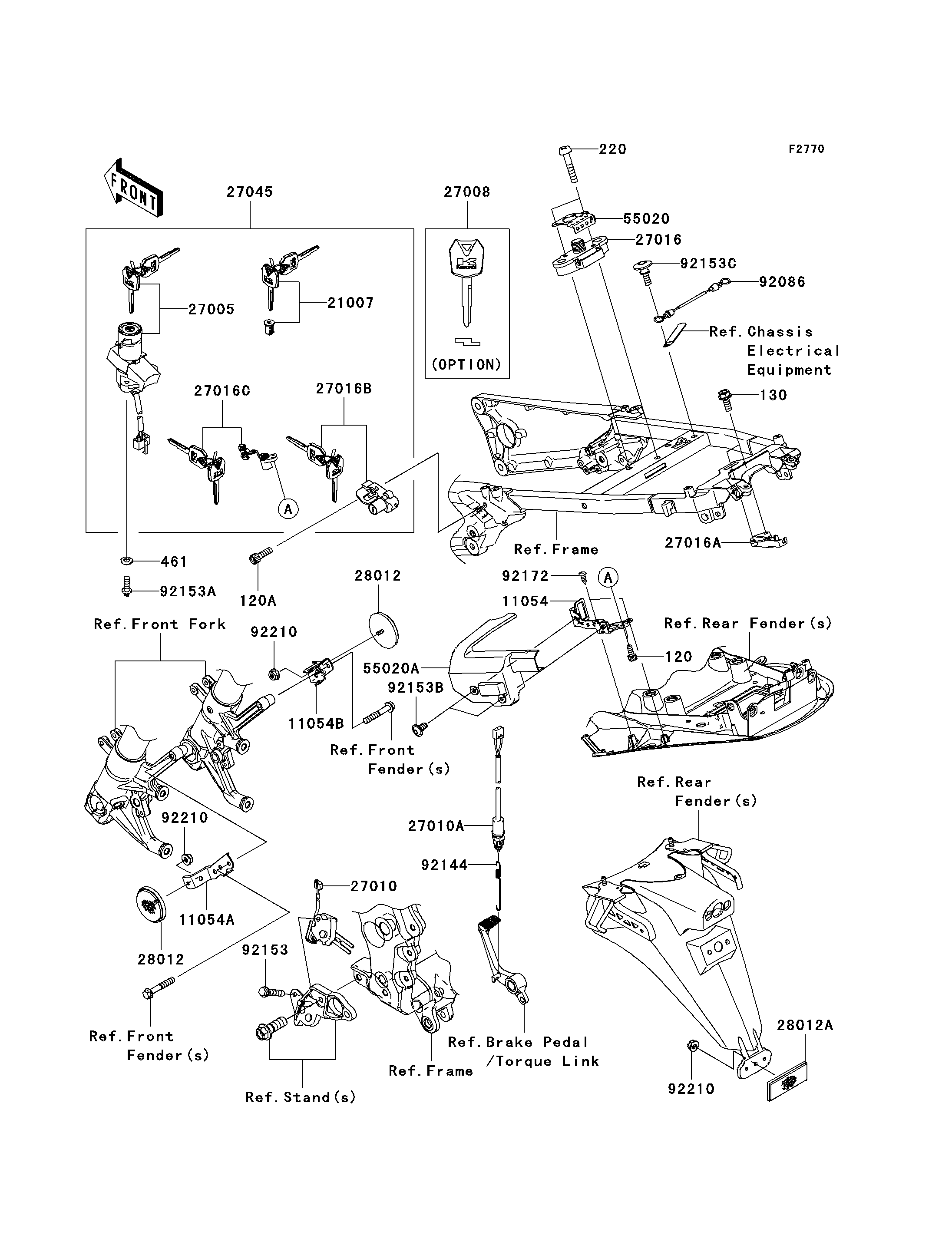

2008 Ninja® ZX™-14 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
120A
130
220
461
11054
11054A
11054B
21007
27005
27008
27010
27010A
27016
27016A
27016B
27016C
27045
28012
28012
28012A
55020
55020A
92086
92144
92153
92153A
92153B
92153C
92172
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CA0512 2
BOLT-SOCKET,6X20 120A 120CA0620 1
BOLT-FLANGED,6X12 130 130BA0612 2
SCREW-PAN-CROSS,6X35 220 220AA0635 2
WASHER-SPRING,6MM 461 461DA0600 2
BRACKET,SEAT LOCK 11054 11054-0068 1
BRACKET,REFLECTOR,FR,LH 11054A 11054-0692 1
BRACKET,REFLECTOR,FR,RH 11054B 11054-0693 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5139 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0064 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,SEAT STRIKER 27016A 27016-1115 1
LOCK-ASSY,HELMET 27016B 27016-5326 1
LOCK-ASSY,SEAT 27016C 27016-5339 1
SWITCH-ASSY 27045 27045-5341 1
REFLECTOR-REFLEX 28012 28012-0008 2
REFLECTOR-REFLEX 28012A 28012-1077 1
GUARD,SEAT STRIKER 55020 55020-0082 1
GUARD,SEAT LOCK 55020A 55020-0275 1
WIRE,L=150 92086 92086-1075 1
SPRING,REAR BRAKE SWITCH 92144 92144-1753 1
BOLT,FLANGED,6X30 92153 92153-1425 1
BOLT,TORX,6X16 92153A 92153-1426 2
BOLT,SOCKET,6X12 92153B 92153-1617 2
BOLT,SOCKET,6X21 92153C 92153-1618 1
SCREW,TAPPING,5X12 92172 92172-0239 2
NUT,FLANGED,5MM 92210 92210-0007 3
