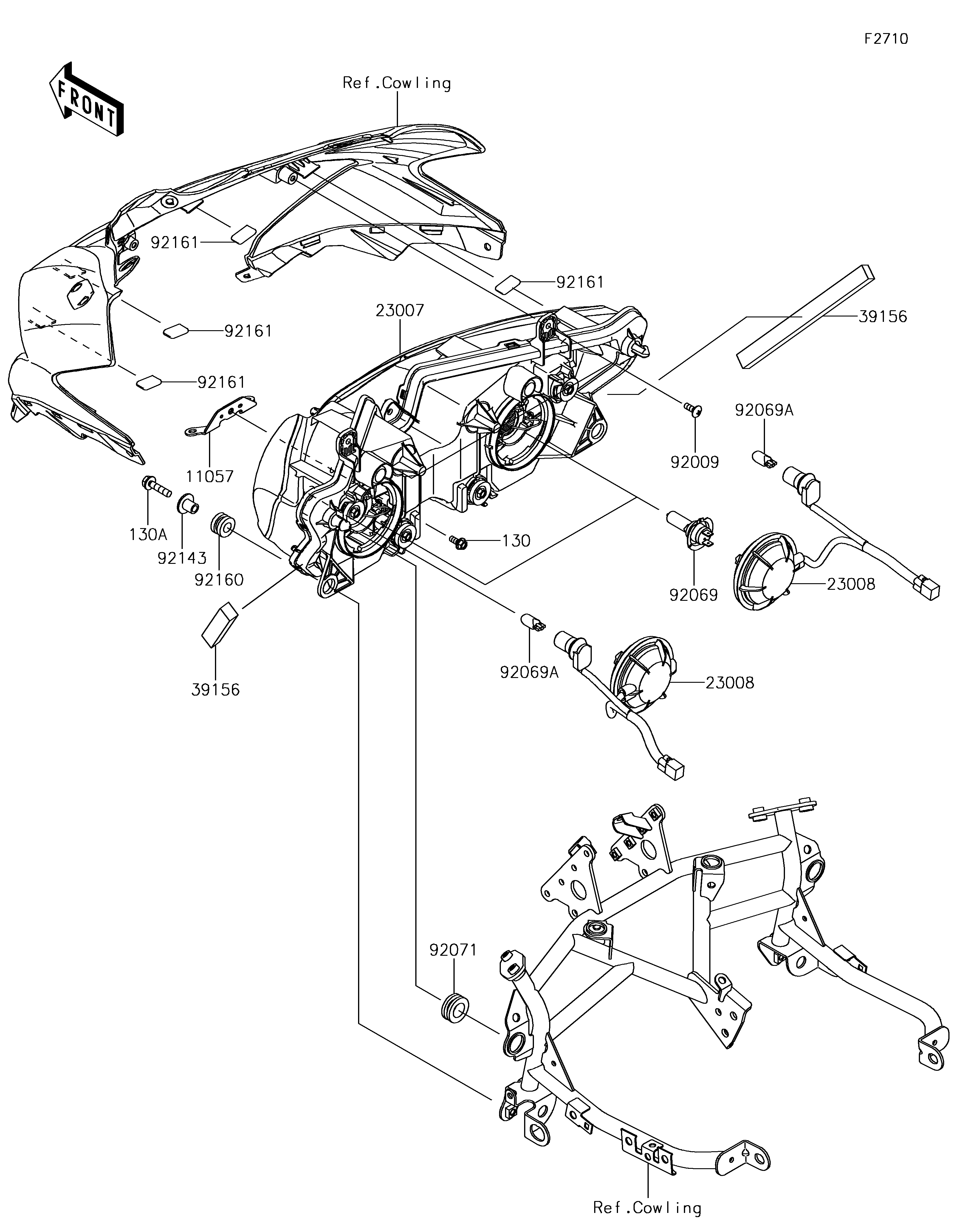

Parts Diagrams |
11057
130
130A
23007
23008
23008
39156
39156
92009
92069
92069A
92069A
92071
92143
92160
92161
92161
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-0136 | 1 | ||
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 1 | ||
| BOLT-FLANGED,6X25 | 130A | 130BA0625 | 2 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-0209 | 1 | ||
| SOCKET-ASSY,HEAD LAMP | 23008 | 23008-0178 | 2 | ||
| PAD,15X170X10 | 39156 | 39156-2184 | 2 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 2 | ||
| BULB,12V 55W,H7 | 92069 | 92069-0053 | 2 | ||
| BULB,12V 5W | 92069A | 92069-0092 | 2 | ||
| GROMMET | 92071 | 92071-1131 | 2 | ||
| COLLAR | 92143 | 92143-1353 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 2 | ||
| DAMPER,12X23 | 92161 | 92161-1367 | 4 |
| BRACKET | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP,HEAD LAMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,HEAD LAMP | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD,15X170X10 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 55W,H7 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 5W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X12 | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,12X23 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
