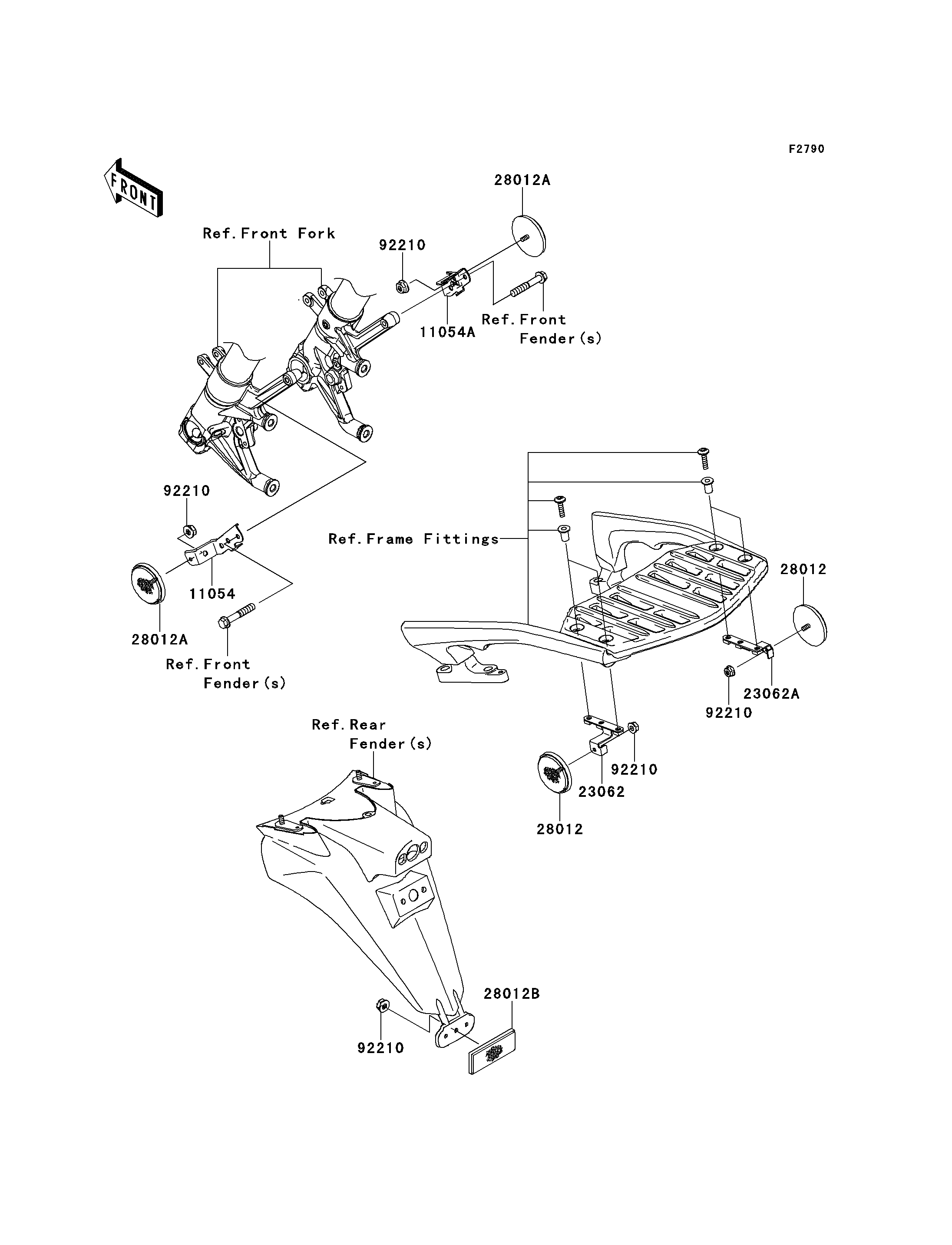

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

11054
11054A
23062
23062A
28012
28012
28012A
28012A
28012B
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR,LH 11054 11054-0692 1
BRACKET,REFLECTOR,FR,RH 11054A 11054-0693 1
BRACKET-COMP,REFLECTOR,RR,LH 23062 23062-0073 1
BRACKET-COMP,REFLECTOR,RR,RH 23062A 23062-0074 1
REFLECTOR-REFLEX 28012 28012-0002 2
REFLECTOR-REFLEX 28012A 28012-0008 2
REFLECTOR-REFLEX 28012B 28012-1077 1
NUT,FLANGED,5MM 92210 92210-0007 5
