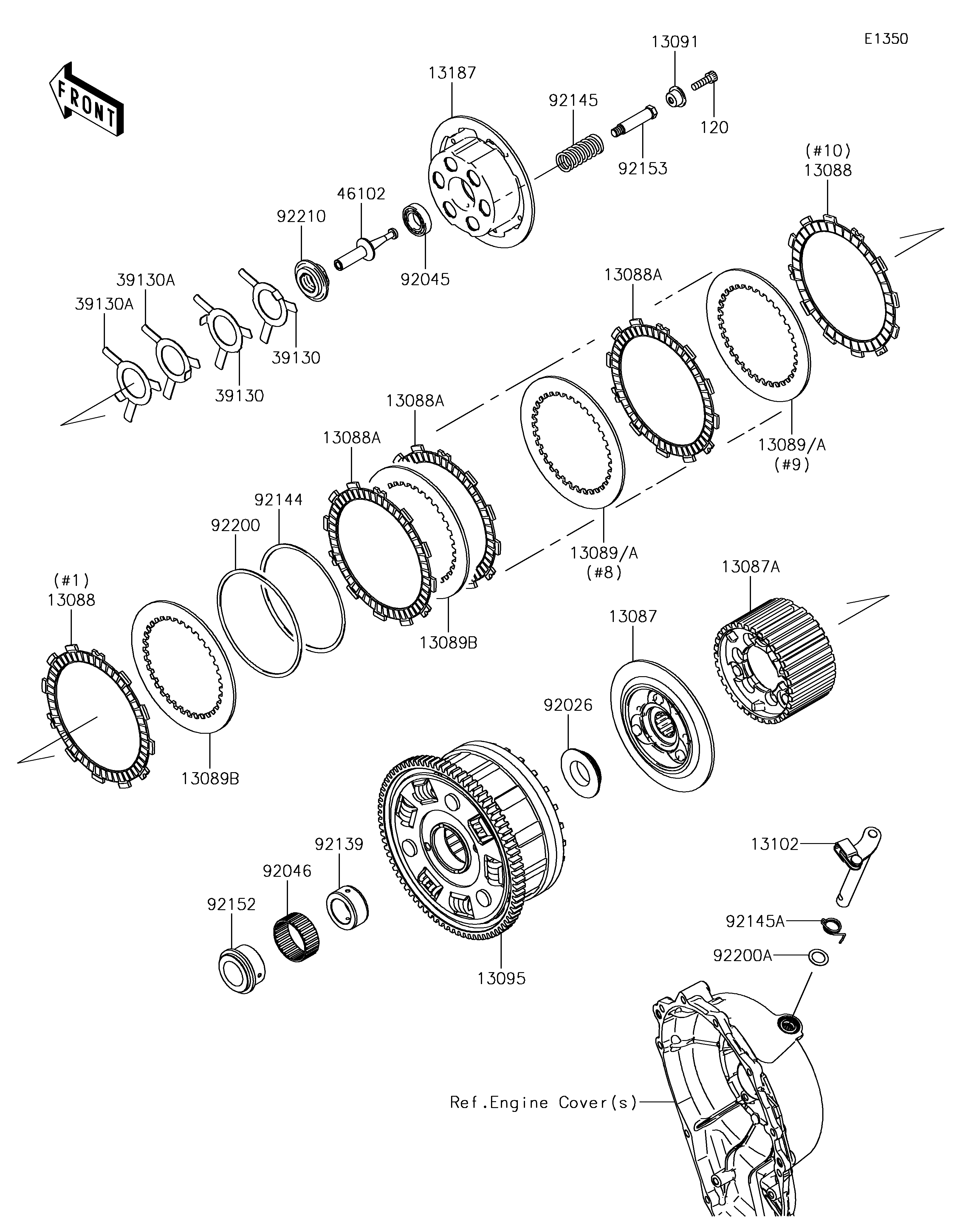

2018 NINJA® ZX™-10R ABS - Clutch

DOWNLOAD PDF
SELECT A NEW PART
120
13087
13087A
13088
13088
13088A
13088A
13088A
13089
13089
13089A
13089A
13089B
13089B
13091
13095
13102
13187
39130
39130
39130A
39130A
46102
92026
92045
92046
92139
92144
92145
92145A
92152
92153
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120Q0620 6
HUB-CLUTCH 13087 13087-0010 1
HUB-CLUTCH 13087A 13087-0011 1
PLATE-FRICTION 13088 13088-0003 2
PLATE-FRICTION 13088A 13088-0013 8
PLATE-CLUTCH,T=2.3 13089 13089-0008 AR
PLATE-CLUTCH,T=2.6 13089A 13089-0009 2
PLATE-CLUTCH,T=2.9 13089B 13089-1093 7
HOLDER,CLUTCH SPRING 13091 13091-1840 6
HOUSING-COMP-CLUTCH 13095 13095-0582 1
RELEASE-COMP-CLUTCH 13102 13102-0049 1
PLATE-CLUTCH OPERATING 13187 13187-0006 1
SPRING-LEAF 39130 39130-1078 2
SPRING-LEAF 39130A 39130-1079 2
ROD 46102 46102-0609 1
SPACER 92026 92026-0164 1
BEARING-BALL,6903/2A 92045 92045-1053 1
BEARING-NEEDLE 92046 92046-0041 1
BUSHING,25X38X17.3 92139 92139-0304 1
SPRING,FRICTION PLATE 92144 92144-1854 1
SPRING,CLUTCH 92145 92145-0220 6
SPRING,RELEASE-COMP 92145A 92145-1775 1
COLLAR 92152 92152-0866 1
BOLT 92153 92153-0797 6
WASHER,FRICTION PLATE 92200 92200-1260 1
WASHER,12X18.5X0.5 92200A 92200-1487 1
NUT 92210 92210-0152 1
