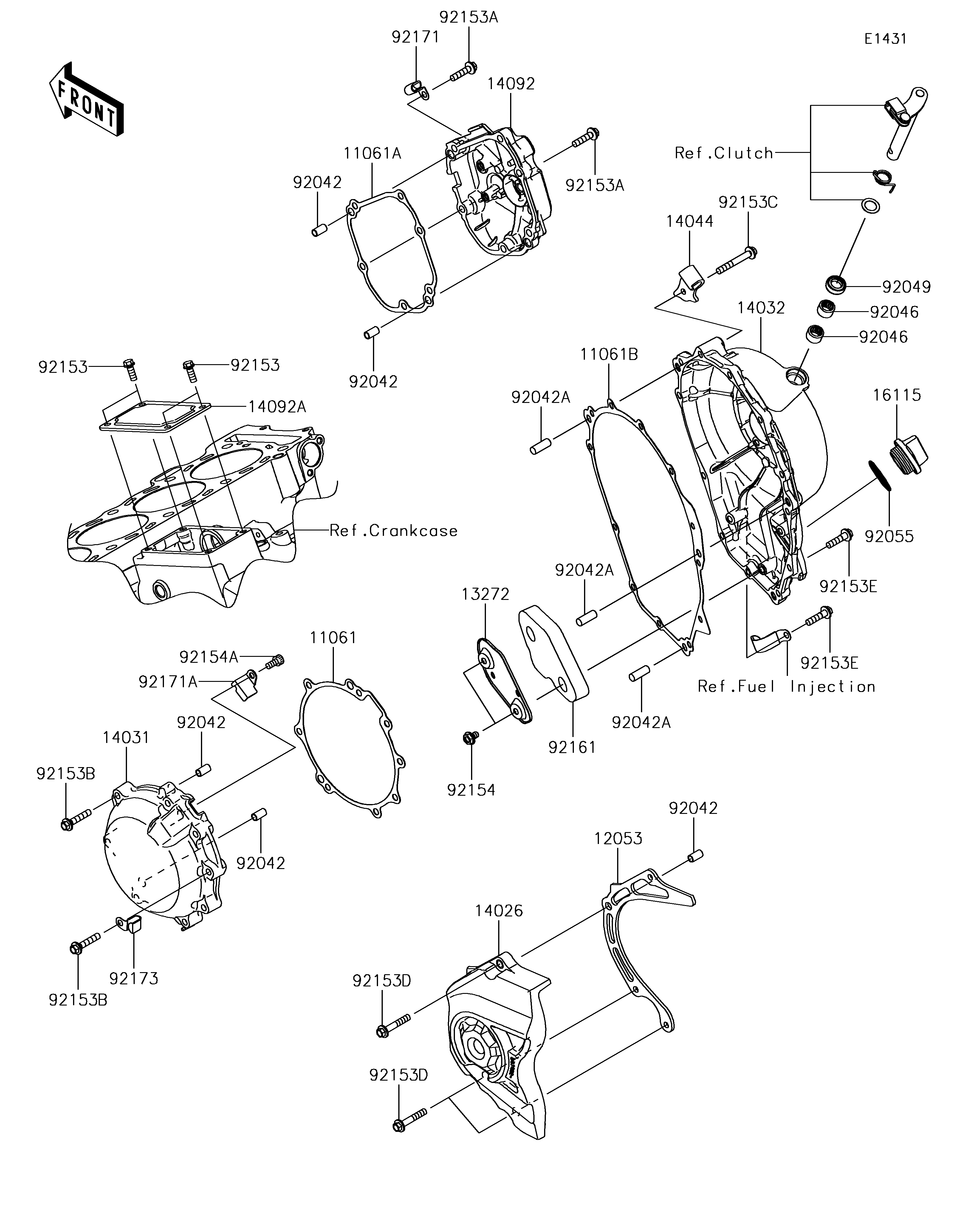

2018 NINJA® ZX™-10R ABS - Engine Cover(s)
11061
11061A
11061B
12053
13272
14026
14031
14032
14044
14092
14092A
16115
92042
92042
92042
92042
92042
92042A
92042A
92042A
92046
92046
92049
92055
92153
92153
92153A
92153A
92153B
92153B
92153C
92153D
92153D
92153E
92153E
92154
92154A
92161
92171
92171A
92173
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,GENERATOR COVER | 11061 | 11061-0441 | 1 | ||
GASKET,PULSER COVER | 11061A | 11061-0442 | 1 | ||
GASKET | 11061B | 11061-0735 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-0229 | 1 | ||
PLATE | 13272 | 13272-0892 | 1 | ||
COVER-CHAIN | 14026 | 14026-0124 | 1 | ||
COVER-GENERATOR | 14031 | 14031-0555 | 1 | ||
COVER-CLUTCH | 14032 | 14032-0560 | 1 | ||
HOLDER-CABLE | 14044 | 14044-0566 | 1 | ||
COVER,PULSER | 14092 | 14092-0152 | 1 | ||
COVER,STARTER | 14092A | 14092-0153 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 5 | ||
PIN,DOWEL,8X22 | 92042A | 92042-044 | 3 | ||
BEARING-NEEDLE,HK1210FM | 92046 | 92046-0034 | 2 | ||
SEAL-OIL,CLUTCH RELEASE | 92049 | 92049-1475 | 1 | ||
RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
BOLT,6X16 | 92153 | 92153-0695 | 4 | ||
BOLT,FLANGED,6X25 | 92153A | 92153-1569 | 6 | ||
BOLT,FLANGED,6X30 | 92153B | 92153-1574 | 8 | ||
BOLT,FLANGED,6X45 | 92153C | 92153-1575 | 1 | ||
BOLT,FLANGED,6X35 | 92153D | 92153-1579 | 3 | ||
BOLT,FLANGED,6X25 | 92153E | 92153-1716 | 11 | ||
BOLT,FLANGED,6X10 | 92154 | 92154-0492 | 2 | ||
BOLT,SOCKET,6X12 | 92154A | 92154-1889 | 1 | ||
DAMPER,CLUTCH COVER | 92161 | 92161-0873 | 1 | ||
CLAMP | 92171 | 92171-0534 | 1 | ||
CLAMP | 92171A | 92171-0938 | 1 | ||
CLAMP | 92173 | 92173-0082 | 1 |
