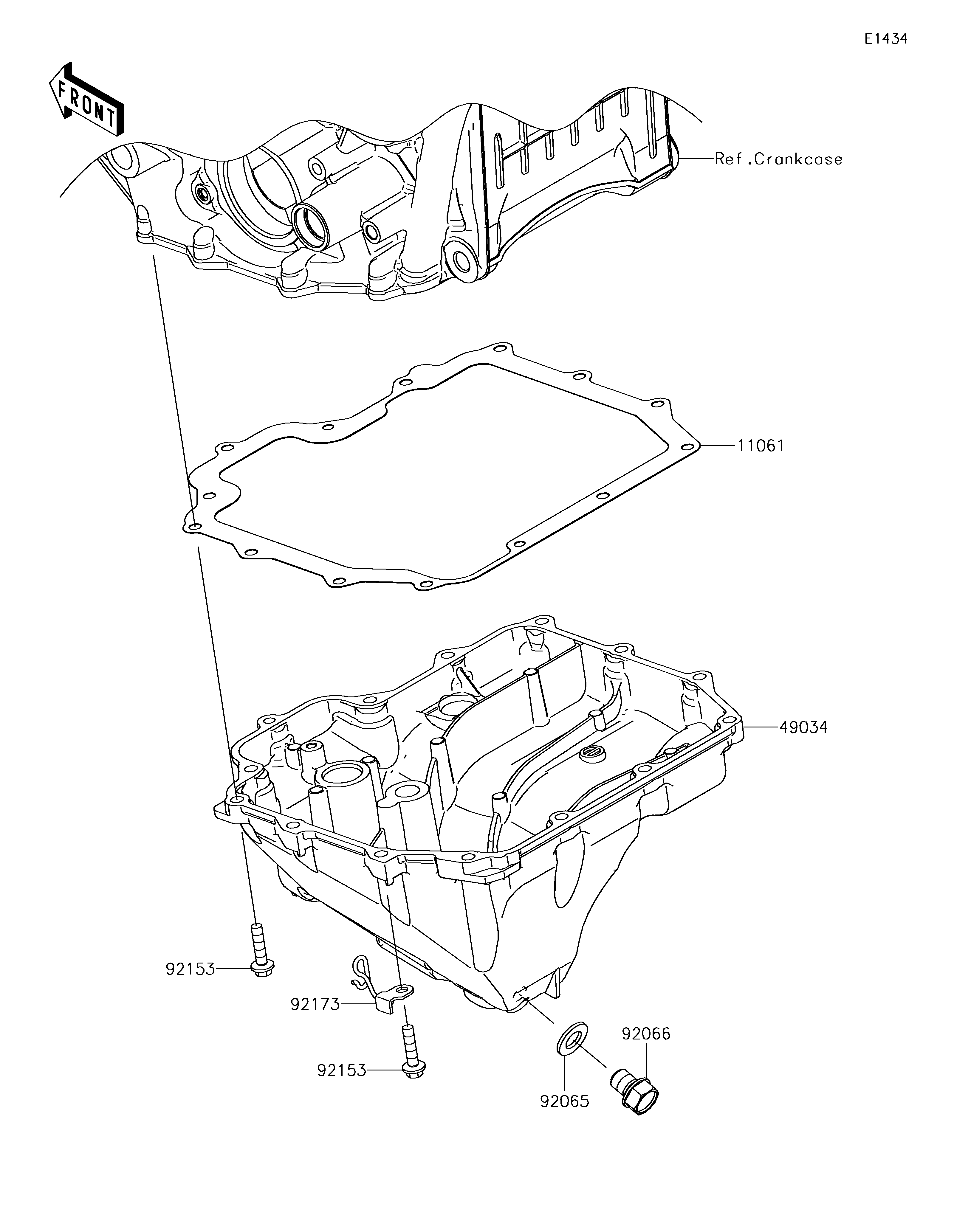

11061
49034
92065
92066
92153
92153
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11061 11061-0747 1
PAN-OIL 49034 49034-0564 1
GASKET,12X22X2 92065 92065-097 1
PLUG,12X15 92066 92066-0079 1
BOLT,FLANGED,6X25 92153 92153-1569 14
CLAMP 92173 92173-1555 1
