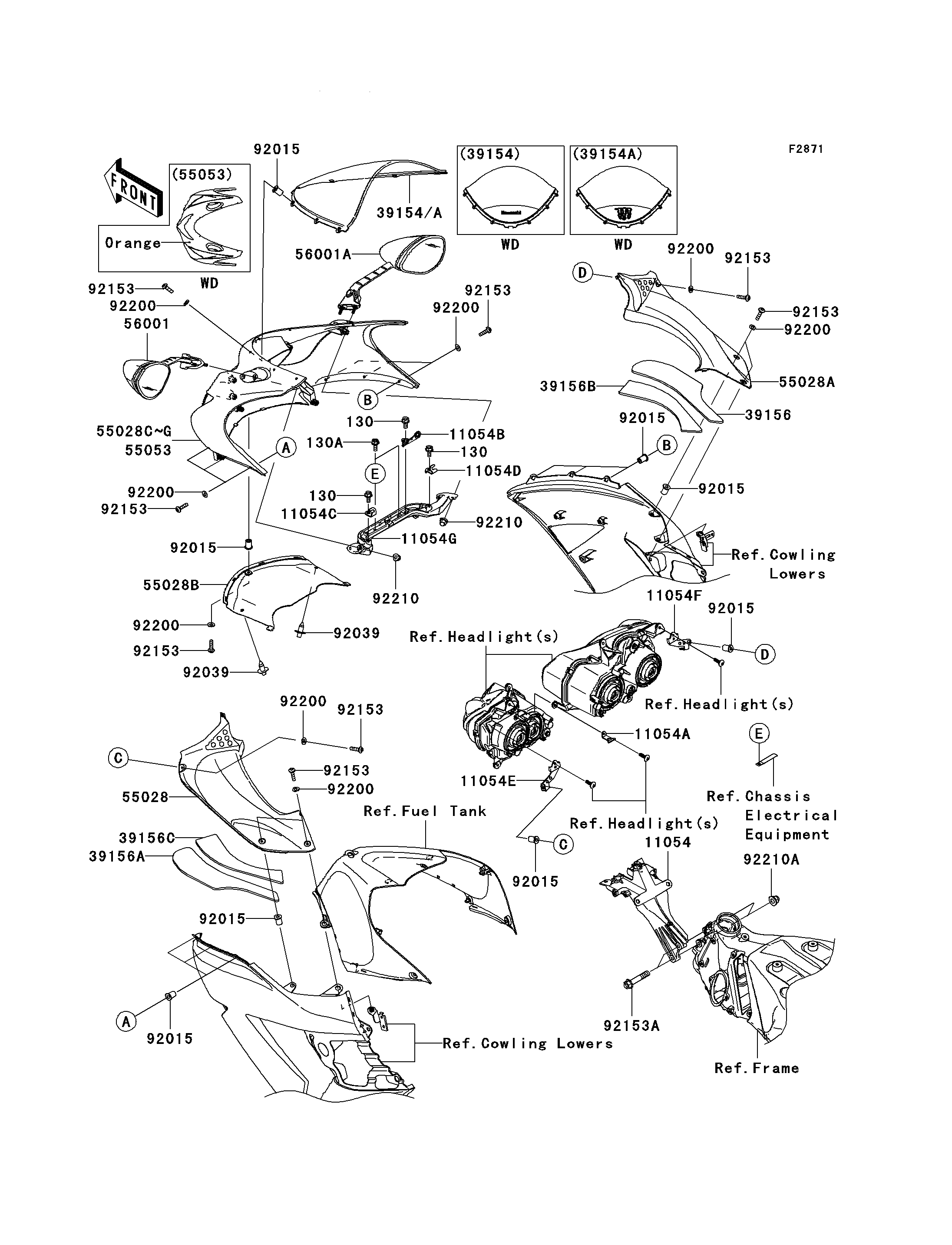

2008 Ninja® ZX™-14 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
11054
11054A
11054B
11054C
11054D
11054E
11054F
11054G
39154
39156
39156A
39156B
39156C
55028
55028A
55028B
55028F
56001
56001A
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 3
BOLT-FLANGED,6X16 130A 130BA0616 2
BRACKET,METER 11054 11054-0057 1
BRACKET,UPP COWLING 11054A 11054-0180 1
BRACKET,DOWN SENSOR 11054B 11054-0239 1
BRACKET,INNER COWLING 11054C 11054-0702 1
BRACKET,INNER COWLING 11054D 11054-0703 1
BRACKET,INNER COWLING,LH 11054E 11054-1305 1
BRACKET,INNER COWLING,RH 11054F 11054-1306 1
BRACKET,MIRROR 11054G 11054-1307 1
WINDSHIELD 39154 39154-5025 1
PAD,INNER COWLING,RH,UPP 39156 39156-0155 1
PAD,INNER COWLING,LH,UPP 39156A 39156-0156 1
PAD,INNER COWLING,RH,LWR 39156B 39156-0157 1
PAD,INNER COWLING,LH,LWR 39156C 39156-0158 1
COWLING,INNER,LH 55028 55028-0061 1
COWLING,INNER,RH 55028A 55028-0062 1
COWLING,FR,CNT 55028B 55028-0095 1
COWLING,UPP,M.M.S.BLUE 55028F 55028-0162-19A 1
MIRROR-ASSY,LH 56001 56001-0135 1
MIRROR-ASSY,RH 56001A 56001-0136 1
NUT,WELL,5MM 92015 92015-1757 17
RIVET 92039 92039-0023 2
BOLT,SOCKET,5X16 92153 92153-1244 19
BOLT,FLANGED,8X45 92153A 92153-1603 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 19
NUT,CAP,6MM 92210 92210-0322 4
NUT,CAP,8MM 92210A 92210-0325 2
COWLING,UPP,SILVER 55028D 55028-0162-17M 1 CAUS
