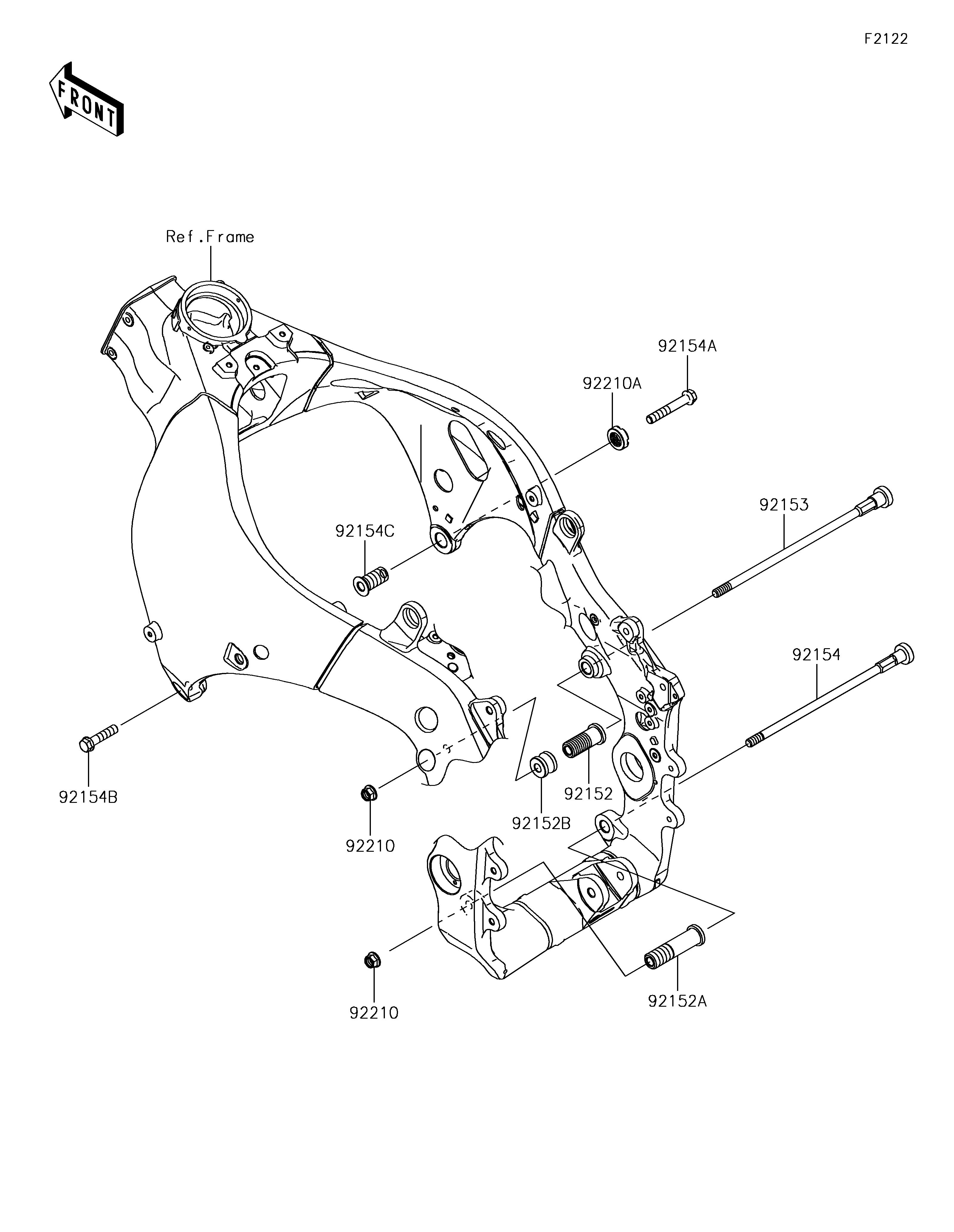

92152
92152A
92152B
92153
92154
92154A
92154B
92154C
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COLLAR,ENGINE MOUNT 92152 92152-0076 1
COLLAR,10.5X20X80 92152A 92152-0860 1
COLLAR 92152B 92152-0984 1
BOLT,SOCKET,10X279 92153 92153-1329 1
BOLT,SOCKET,10X260 92154 92154-0386 1
BOLT,FLANGED,10X65 92154A 92154-1964 1
BOLT,FLANGED,10X40 92154B 92154-1965 1
BOLT,SOCKET,18X38 92154C 92154-1966 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 2
NUT,CASTLE,18MM 92210A 92210-1390 1
