35004
411
411
92039
92039
92154
92154
92154A
92154A
92173
92173A
92200
92200
92200
92200

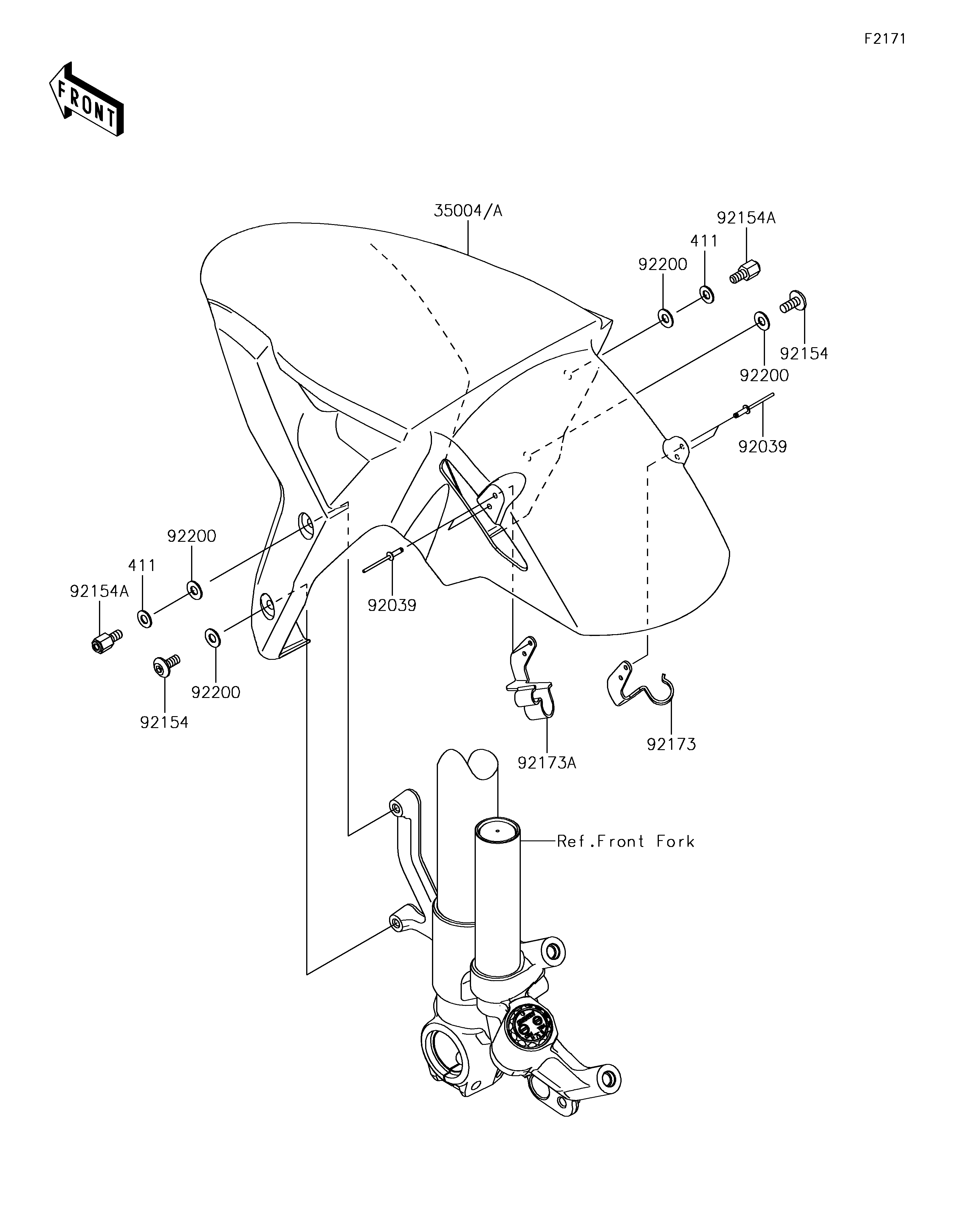

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,N.M.SILVER 35004 35004-0362-60S 1
WASHER-PLAIN,6MM 411 411AB0600 2
RIVET,3.2X9.5 92039 92039-0752 4
BOLT,SOCKET,6X14 92154 92154-1735 2
BOLT,6X12 92154A 92154-1908 2
CLAMP,FENDER,RH 92173 92173-1481 1
CLAMP,FENDER,LH 92173A 92173-1493 1
WASHER,6.5X14X1 92200 92200-1388 4
