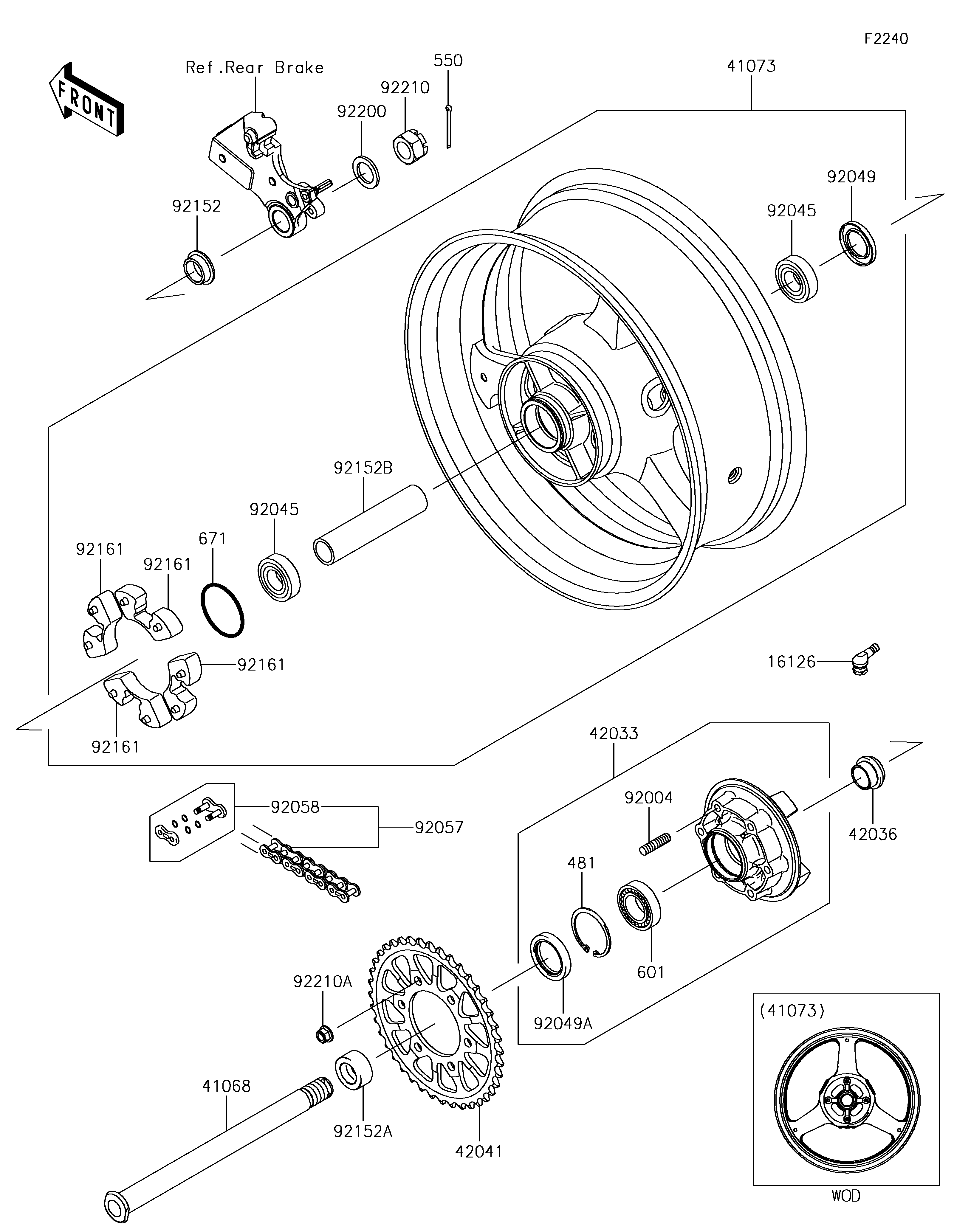

2018 NINJA® ZX™-10R ABS - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
16126
41068
41073
42033
42036
42041
481
550
601
671
92004
92045
92045
92049
92049A
92057
92058
92152
92152A
92152B
92161
92161
92161
92161
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-0735 1
AXLE,RR,24X326 41068 41068-0613 1
WHEEL-ASSY,RR,G.BLACK 41073 41073-0758-18F 1
COUPLING-ASSY,RR HUB 42033 42033-0038 1
SLEEVE,RR HUB,L=22 42036 42036-1279 1
SPROCKET-HUB,39T 42041 42041-0096 1
CIRCLIP 481 481J5500 1
PIN-COTTER,4.0X45 550 550AA4045 1
BEARING-BALL,#6006G 601 601B6006G 1
O RING,60MM 671 671B2560 1
STUD,10X19 92004 92004-0028 6
BEARING-BALL,25X52X15 92045 92045-0804 2
SEAL-OIL,31X52X5 92049 92049-0722 1
SEAL-OIL,PJN 40 55 8 92049A 92049-1376 1
CHAIN,DRIVE,EK525RMX3/3D,114L 92057 92057-0672 1
JOINT-CHAIN 92058 92058-0041 1
COLLAR,25X32X13 92152 92152-0289 1
COLLAR,25X40X18.7 92152A 92152-0867 1
COLLAR 92152B 92152-0868 1
DAMPER,SHOCK,RR HUB 92161 92161-0342 4
WASHER,25.5X38X3.2 92200 92200-0278 1
NUT,CASTLE,24MM 92210 92210-0280 1
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 6
