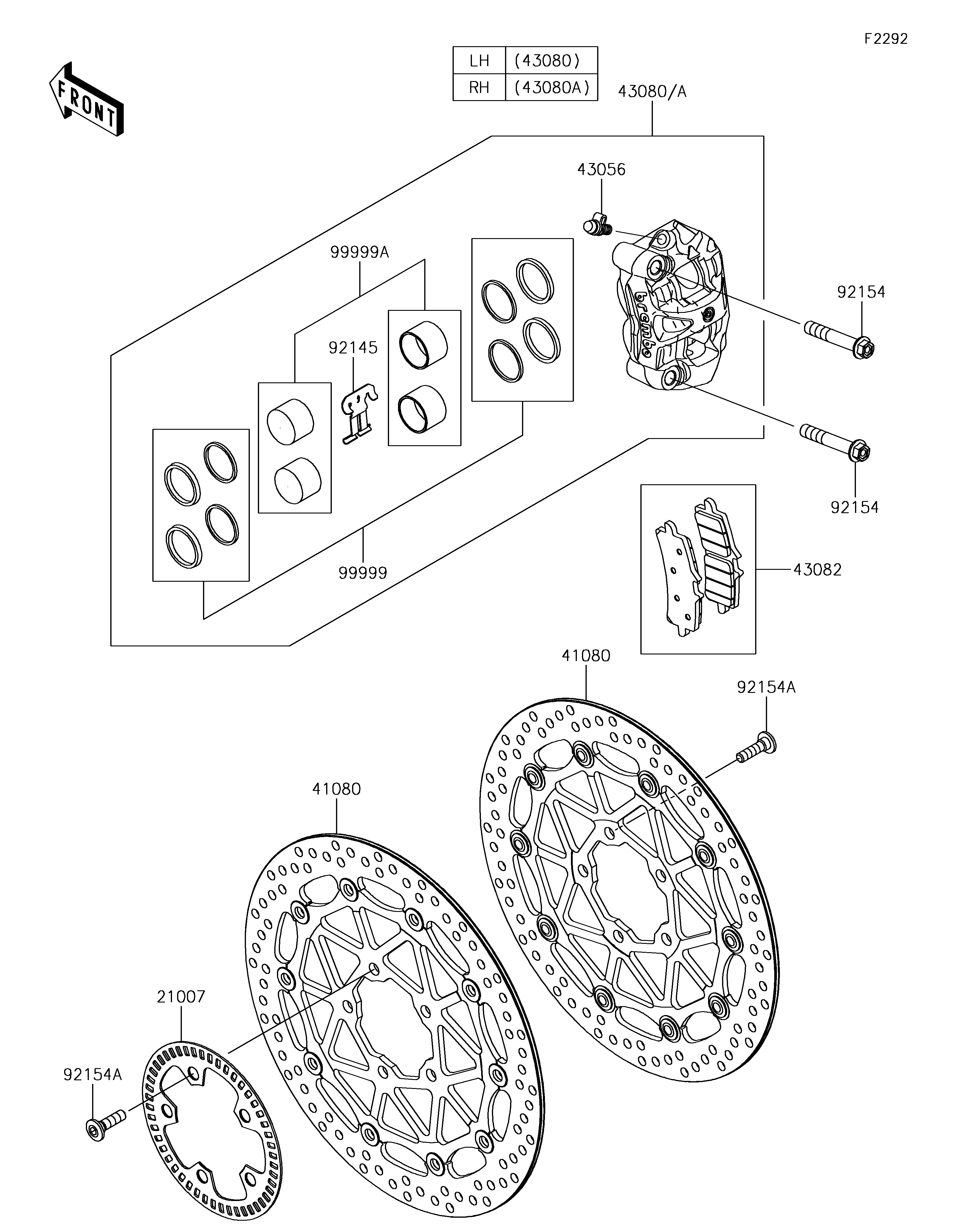

21007
41080
41080
43056
43080
43080A
43082
92145
92154
92154
92154A
92154A
99999
99999A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,FR WHEEL 21007 21007-0166 1
DISC,FR,BLACK/BLACK 41080 41080-0648-18U 2
BREATHER-BRAKE 43056 43056-0015 2
CALIPER-SUB-ASSY,FR,LH,GRAY 43080 43080-0182-51J 1
CALIPER-SUB-ASSY,FR,RH,GRAY 43080A 43080-0183-51J 1
PAD-ASSY-BRAKE 43082 43082-0157 2
SPRING 92145 92145-1684 2
BOLT,FLANGED,10X60 92154 92154-1643 4
BOLT,SOCKET,8X30 92154A 92154-1865 10
KIT.,DUST SEAL 99999 99999-0557 2
KIT.,CALIPER PISTON 99999A 99999-0617 2
