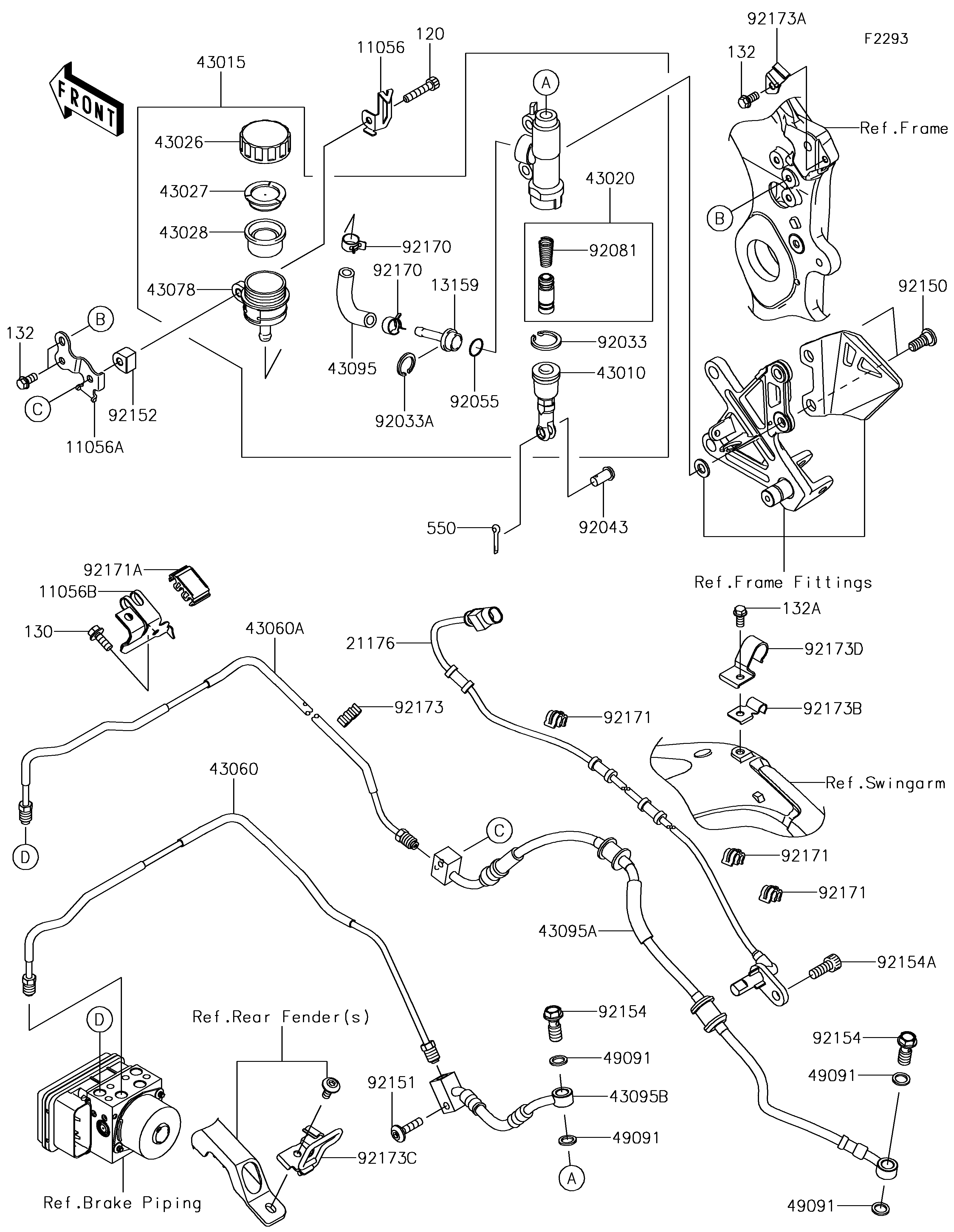

2018 NINJA® ZX™-10R ABS - Rear Master Cylinder
11056
11056
11056A
11056A
11056B
11056B
120
120
130
130
13159
13159
132
132
132
132
132A
132A
21176
21176
43010
43010
43015
43015
43020
43020
43026
43026
43027
43027
43028
43028
43060
43060
43060A
43060A
43078
43078
43095
43095
43095A
43095A
43095B
43095B
49091
49091
49091
49091
49091
49091
49091
49091
92033
92033
92033A
92033A
92043
92043
92055
92055
92081
92081
92150
92150
92151
92151
92152
92152
92154
92154
92154
92154
92154A
92154A
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171A
92171A
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
550
550
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,RESERVOIR TANK CAP | 11056 | 11056-7024 | 1 | ||
BRACKET,RESERVOIR TANK | 11056A | 11056-7786 | 1 | ||
BRACKET,UPP CROSS | 11056B | 11056-7960 | 1 | ||
BOLT-SOCKET,6X35 | 120 | 120CC0635 | 1 | ||
BOLT-FLANGED,6X16 | 130 | 130BA0616 | 1 | ||
CONNECTOR | 13159 | 13159-0009 | 1 | ||
BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 3 | ||
BOLT-FLANGED-SMALL,6X12 | 132A | 132BB0612 | 1 | ||
SENSOR,RR WHEEL | 21176 | 21176-0815 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-0016 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-0640 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-0009 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1053 | 1 | ||
DIAPHRAGM | 43028 | 43028-1065 | 1 | ||
PIPE-BRAKE,RR M/CYLINDER-HU | 43060 | 43060-0095 | 1 | ||
PIPE-BRAKE,ABS UNIT-SWA BKT | 43060A | 43060-0328 | 1 | ||
RESERVOIR | 43078 | 43078-0575 | 1 | ||
HOSE-BRAKE,RESERVOIR | 43095 | 43095-0585 | 1 | ||
HOSE-BRAKE,SWA BKT-RR CAL. | 43095A | 43095-0928 | 1 | ||
HOSE-BRAKE,RR M/CYL.-SWA BKT | 43095B | 43095-0936 | 1 | ||
WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
RING-SNAP,20.9X24.6X1.2 | 92033 | 92033-0079 | 1 | ||
RING-SNAP,20.5MM | 92033A | 92033-1186 | 1 | ||
PIN,8X17 | 92043 | 92043-0104 | 1 | ||
RING-O,14.8X2.4 | 92055 | 92055-0741 | 1 | ||
SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
BOLT,SOCKET,8X25 | 92150 | 92150-1837 | 2 | ||
BOLT,SOCKET,6X25 | 92151 | 92151-1611 | 1 | ||
COLLAR,6.1X16X11.3 | 92152 | 92152-2188 | 1 | ||
BOLT,BANJO,10X23 | 92154 | 92154-1712 | 2 | ||
BOLT,SOCKET,8X20 | 92154A | 92154-1976 | 1 | ||
CLAMP,HOSE | 92170 | 92170-1091 | 2 | ||
CLAMP | 92171 | 92171-0921 | 3 | ||
CLAMP | 92171A | 92171-1731 | 1 | ||
CLAMP | 92173 | 92173-0181 | 1 | ||
CLAMP,MAIN FRAME,RR | 92173A | 92173-1516 | 1 | ||
CLAMP,SWING ARM,MID | 92173B | 92173-1517 | 1 | ||
CLAMP,SWING ARM,RR | 92173C | 92173-1518 | 1 | ||
CLAMP,SWING ARM,MID | 92173D | 92173-1520 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550AA2015 | 1 |
