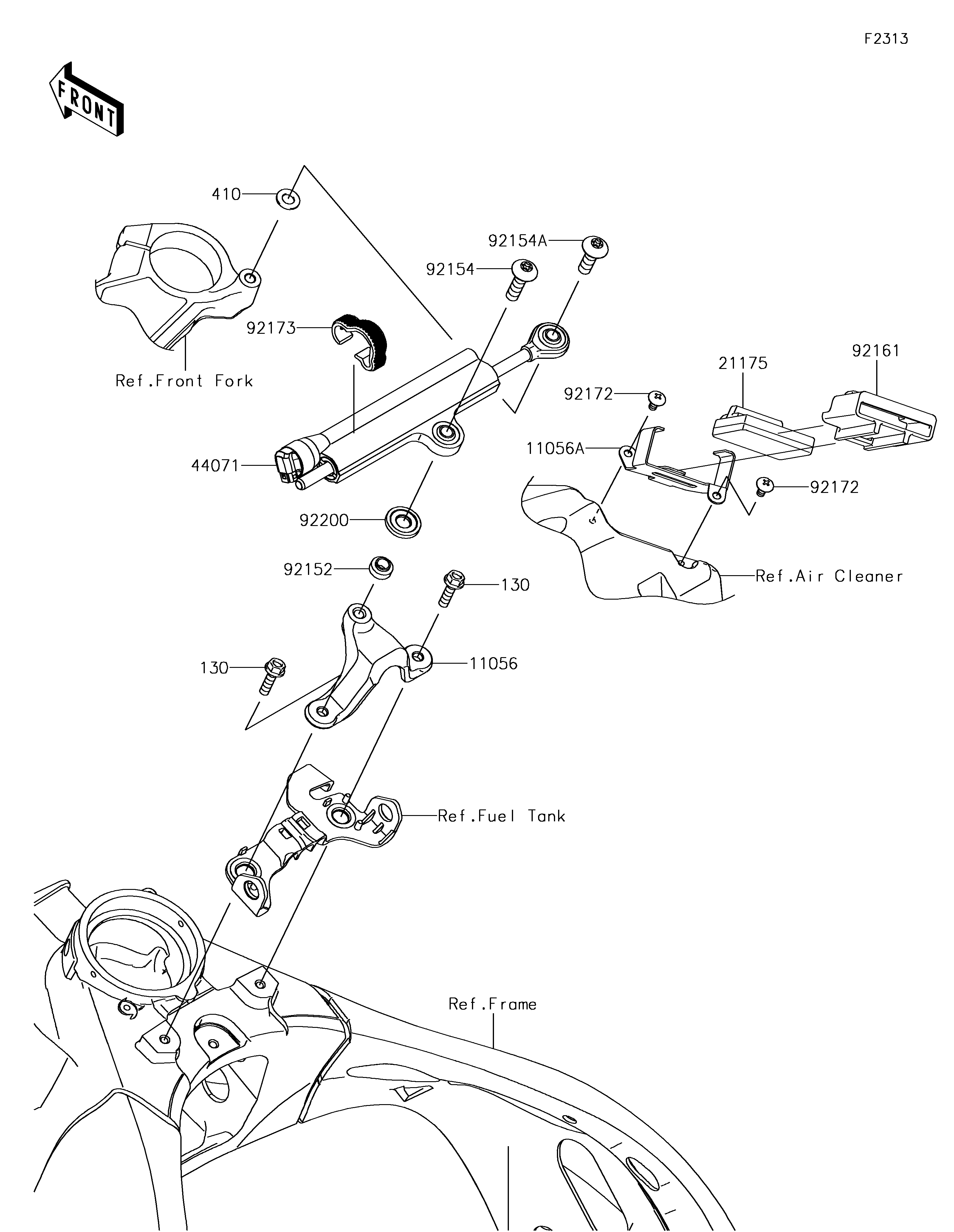

11056
11056A
130
130
21175
410
44071
92152
92154
92154A
92161
92172
92172
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STEERING DAMPER 11056 11056-0173 1
BRACKET,ECU 11056A 11056-7685 1
BOLT-FLANGED,6X20 130 130BA0620 2
CONTROL UNIT-ELECTRONIC,OHLINS 21175 21175-1155 1
WASHER-PLAIN-SMALL,8MM 410 410AA0800 1
DAMPER-ASSY 44071 44071-0857 1
COLLAR,8X10X7.3 92152 92152-2146 1
BOLT,TORX,8X30 92154 92154-1801 1
BOLT,TORX,8X26 92154A 92154-1897 1
DAMPER,ECU 92161 92161-1729 1
SCREW,TAPPING,5X10 92172 92172-0262 2
CLAMP 92173 92173-1023 1
WASHER 92200 92200-0293 1
