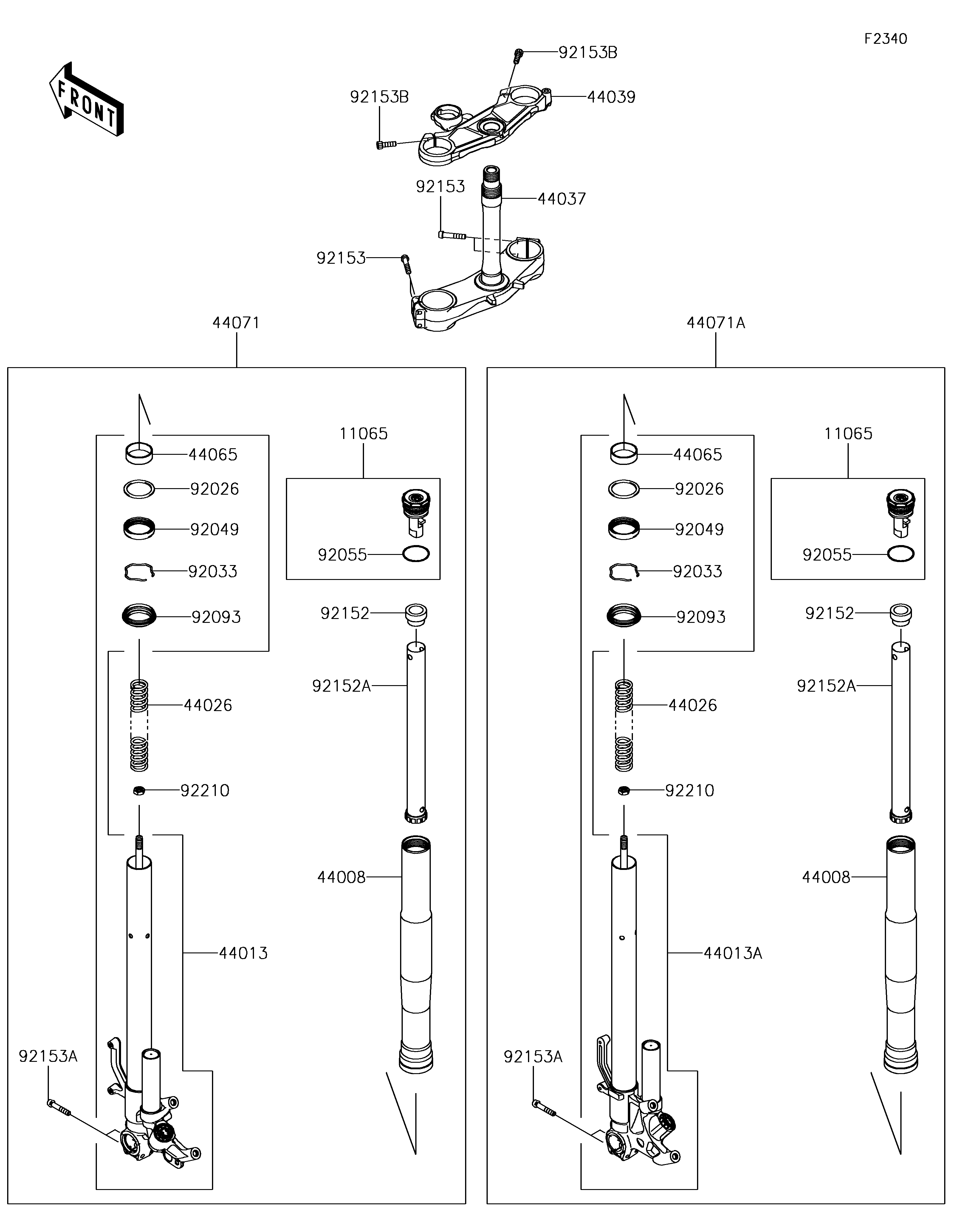

2018 NINJA® ZX™-10R ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
44008
44008
44013
44013A
44026
44026
44037
44039
44065
44065
44071
44071A
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92152
92152
92152A
92152A
92153
92153
92153A
92153A
92153B
92153B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,G.B.GREEN 11065 11065-0958-50Y 2
PIPE-FORK OUTER,BLACK 44008 44008-0082-499 2
PIPE-FORK INNER,LH,BLACK 44013 44013-0284-59S 1
PIPE-FORK INNER,RH,BLACK 44013A 44013-0285-59S 1
SPRING-FRONT FORK,11.25N/MM 44026 44026-0202 2
HOLDER-FORK UNDER 44037 44037-0159 1
HOLDER-FORK UPPER 44039 44039-0164 1
BUSHING-FRONT FORK 44065 44065-0026 2
DAMPER-ASSY,LH,BLACK 44071 44071-1207-59R 1
DAMPER-ASSY,RH,BLACK 44071A 44071-1208-59R 1
SPACER 92026 92026-0165 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0064 2
RING-O,FORK CAP 92055 92055-1497 2
SEAL,DUST 92093 92093-0042 2
COLLAR 92152 92152-2238 2
COLLAR 92152A 92152-2239 2
BOLT 92153 92153-0853 4
BOLT,SOCKET,8X35 92153A 92153-0854 4
BOLT,SOCKET,8X25 92153B 92153-1625 2
NUT 92210 92210-1506 2
