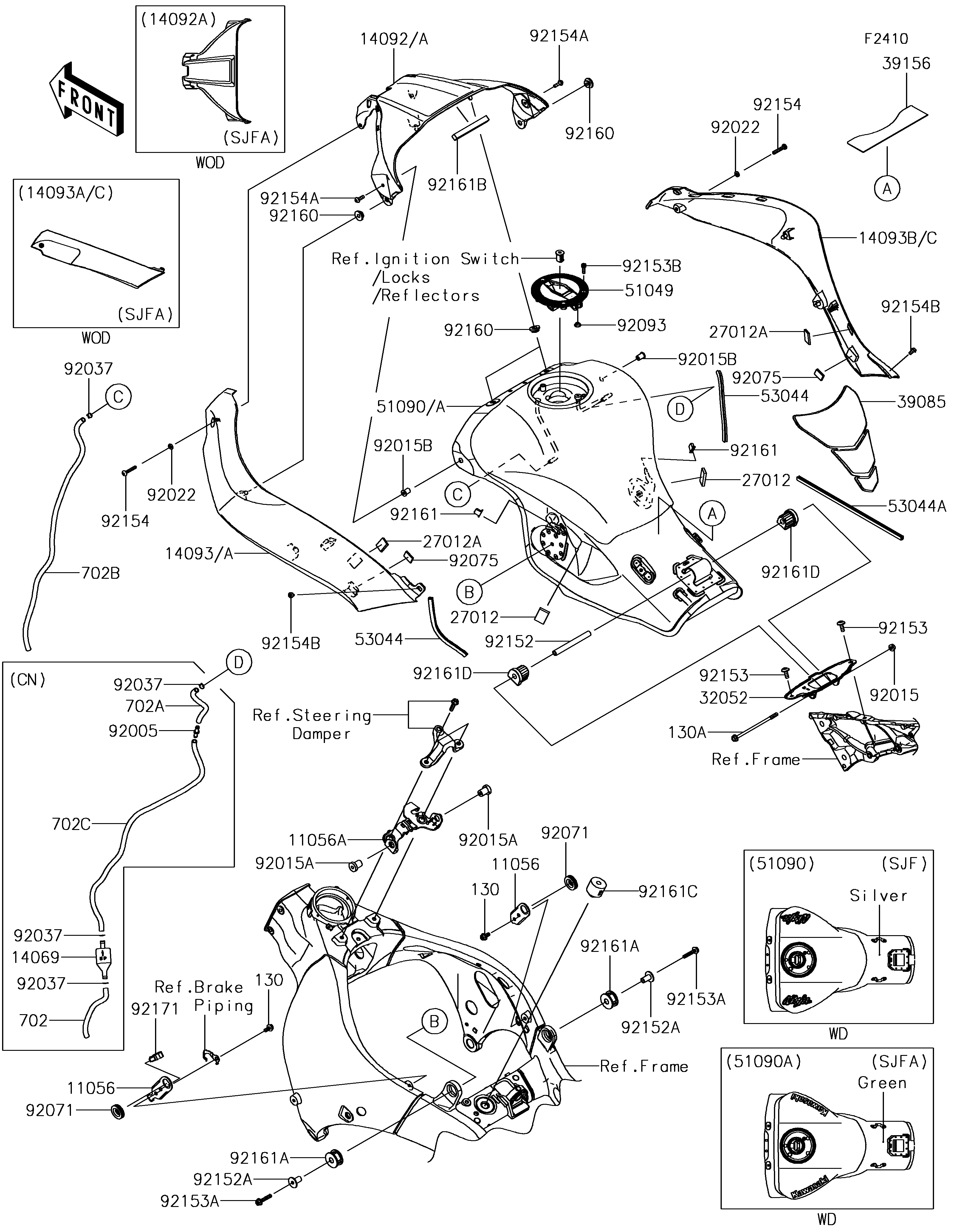

2018 NINJA® ZX™-10R ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056
11056
11056A
11056A
14069
14069
14092
14092
14093
14093
14093B
14093B
27012
27012
27012
27012
27012A
27012A
27012A
27012A
32052
32052
39085
39085
39156
39156
51049
51049
51090
51090
53044
53044
53044
53044
53044A
53044A
92005
92005
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022
92022
92071
92071
92071
92071
92075
92075
92075
92075
92093
92093
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
130
130
130
130
130A
130A
702
702
702A
702A
702B
702B
702C
702C
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TANK COVER,SIDE 11056 11056-0242 2
BRACKET,TANK COVER,FR 11056A 11056-7782 1
BREATHER,TANK 14069 14069-0008 1 CN
COVER,TANK,CNT,N.M.SILVER 14092 14092-0786-60S 1
COVER,TANK,LH,N.M.SILVER 14093 14093-0680-60S 1
COVER,TANK,RH,N.M.SILVER 14093B 14093-0681-60S 1
HOOK 27012 27012-0170 2
HOOK 27012A 27012-0171 2
BRACKET-TANK 32052 32052-0154 1
PAD-TANK 39085 39085-0054 1
PAD,40X180X1.0 39156 39156-0745 1
CAP-TANK 51049 51049-0721 1
TANK-COMP-FUEL,N.M.SILVER 51090 51090-5170-60S 1
TRIM,L=157 53044 53044-1276 2
TRIM 53044A 53044-1296 1
FITTING 92005 92005-0721 1 CN
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,RUBBER,6MM 92015A 92015-1692 2
NUT,WELL,5MM 92015B 92015-1757 2
WASHER,6.2X11X1.5 92022 92022-183 2
GROMMET 92071 92071-1043 2
DAMPER,IGNITION 92075 92075-1982 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.8X10X60 92152 92152-1182 1
COLLAR,6.8X10X20.1 92152A 92152-2200 2
BOLT,SOCKET,6X16 92153 92153-1526 2
BOLT,FLANGED,6X28 92153A 92153-1580 2
BOLT,SOCKET,5X16 92153B 92153-1616 3
BOLT,SOCKET,6X30 92154 92154-0206 2
BOLT,SOCKET,5X16 92154A 92154-0209 2
BOLT,SOCKET,5X10 92154B 92154-0211 2
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X75 130A 130BA0675 1
TUBE-RUBBER,6X9X120 702 702A06120 1 CN
TUBE-RUBBER,6X9X145 702A 702A06145 1 CN
TUBE-RUBBER,6X9X660 702B 702A06660 1
TUBE-RUBBER,6X9X700 702C 702A06700 1 CN
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0365 2
DAMPER,10X30X16 92161A 92161-0869 2
DAMPER,10X90X10 92161B 92161-0963 1
DAMPER 92161C 92161-1116 1
DAMPER,FUEL TANK,RR 92161D 92161-1330 2
CLAMP 92171 92171-0782 1
