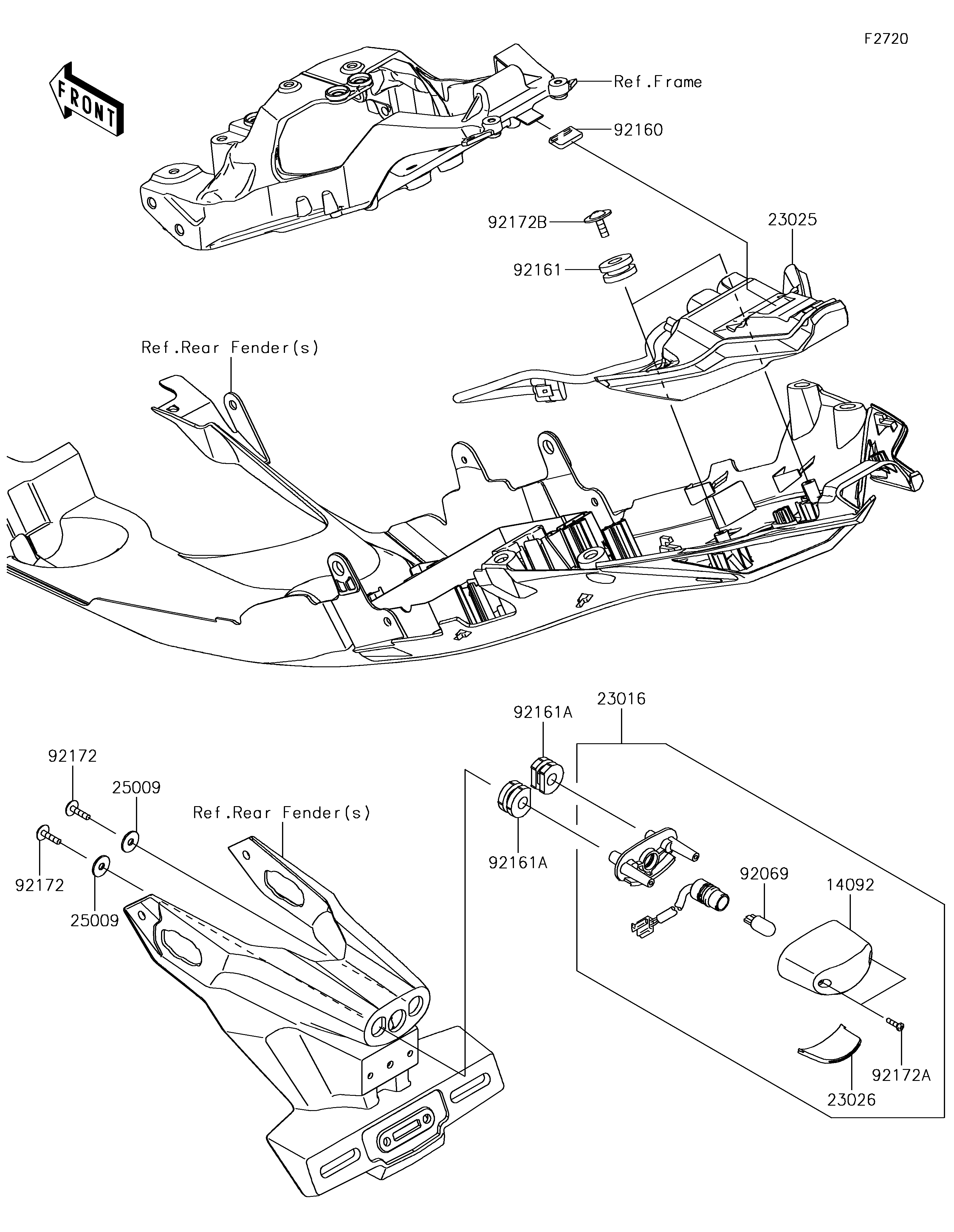

14092
23016
23025
23026
25009
25009
92069
92160
92161
92161A
92161A
92172
92172
92172A
92172B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0607 1
LAMP-TAIL,LED 23025 23025-0332 1
LENS,LICENCE LAMP 23026 23026-0028 1
WASHER,5.2X16X1.2 25009 25009-004 2
BULB,12V 5W 92069 92069-1016 1
DAMPER 92160 92160-1190 1
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-0776 2
SCREW,TAPPING,5X16 92172 92172-0238 2
SCREW,TAPPING,2.9X13 92172A 92172-0343 2
SCREW,TAPTITE,5X16 92172B 92172-0481 2
