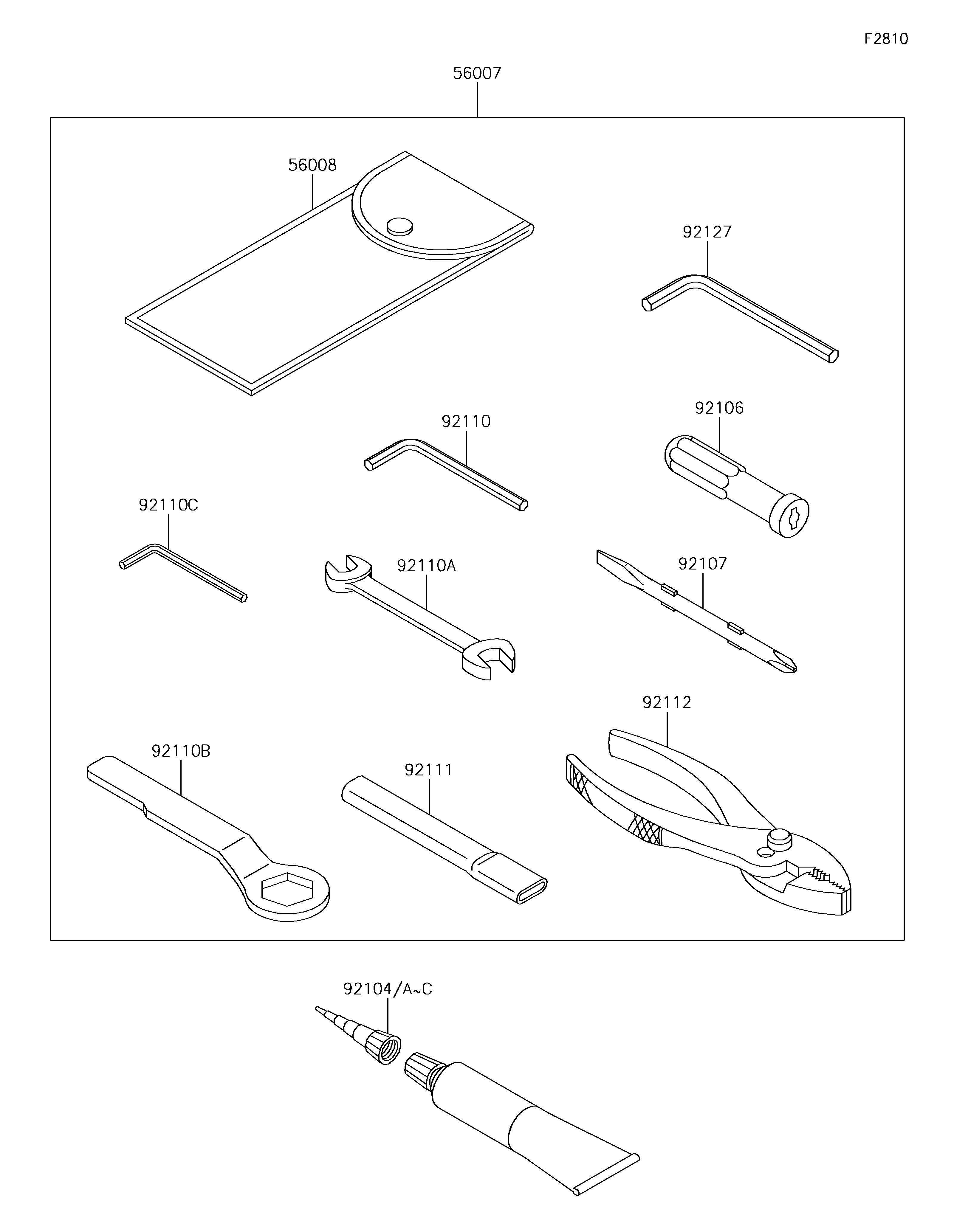

56007
56008
92104
92104A
92104B
92104C
92106
92107
92110
92110A
92110B
92110C
92111
92112
92127
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL-KIT 56007 56007-0141 1
BAG,TOOL 56008 56008-1075 1
GASKET-LIQUID,TB1211F,CLEAR 92104 92104-0004 1
GASKET-LIQUID,TB1216,GRAY 92104A 92104-1063 1
GASKET-LIQUID,TB1216B,BLACK 92104B 92104-1064 1
GASKET-LIQUID,TB1207B,BLACK 92104C 92104-2068 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107 92107-1051 1
TOOL-WRENCH,ALLEN,5MM 92110 92110-1015 1
TOOL-WRENCH,OPEN END,10X12 92110A 92110-1152 1
TOOL-WRENCH,BOX END,32MM 92110B 92110-1161 1
TOOL-WRENCH,ALLEN,4MM 92110C 92110-3703 1
TOOL-BAR,BOX END WRENCH 92111 92111-1051 1
TOOL-PLIERS 92112 92112-1001 1
TOOL-WRENCH,ALLEN,6MM 92127 92127-003 1
