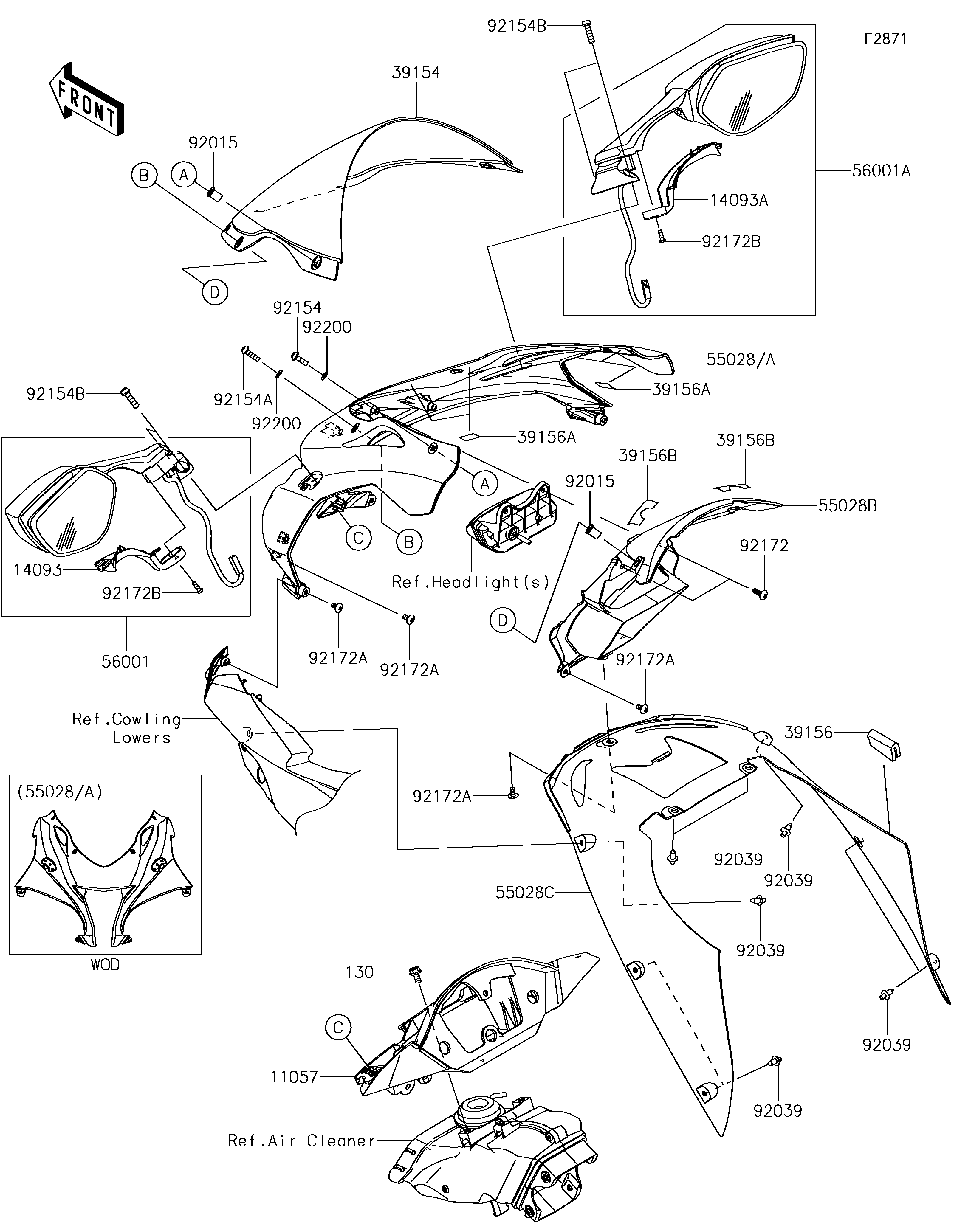

2018 NINJA® ZX™-10R ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11057
130
14093
14093A
39154
39156
39156A
39156A
39156B
39156B
55028
55028B
55028C
56001
56001A
92015
92015
92039
92039
92039
92039
92039
92154
92154A
92154B
92154B
92172
92172A
92172A
92172A
92172A
92172B
92172B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11057 11057-0072 1
BOLT-FLANGED,6X12 130 130BA0612 3
COVER,MIRROR,LH 14093 14093-0343 1
COVER,MIRROR,RH 14093A 14093-0344 1
WINDSHIELD 39154 39154-0351 1
PAD 39156 39156-0292 1
PAD,15X20X0.2 39156A 39156-1784 8
PAD 39156B 39156-2105 2
COWLING,UPP,N.M.SILVER 55028 55028-0572-60S 1
COWLING,RAM AIR 55028B 55028-0573 1
COWLING,FR,CNT 55028C 55028-0578 1
MIRROR-ASSY,LH 56001 56001-0322 1
MIRROR-ASSY,RH 56001A 56001-0323 1
NUT,WELL,5MM 92015 92015-1757 4
RIVET 92039 92039-0068 8
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,SOCKET,5X20 92154A 92154-0210 2
BOLT,SOCKET,6X22,MEC 92154B 92154-2736 4
SCREW,TAPPING,5X16 92172 92172-0175 2
SCREW,TAPPING,5X10 92172A 92172-0335 7
SCREW-PAN-CROS,4X10 92172B 92172-0871 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
