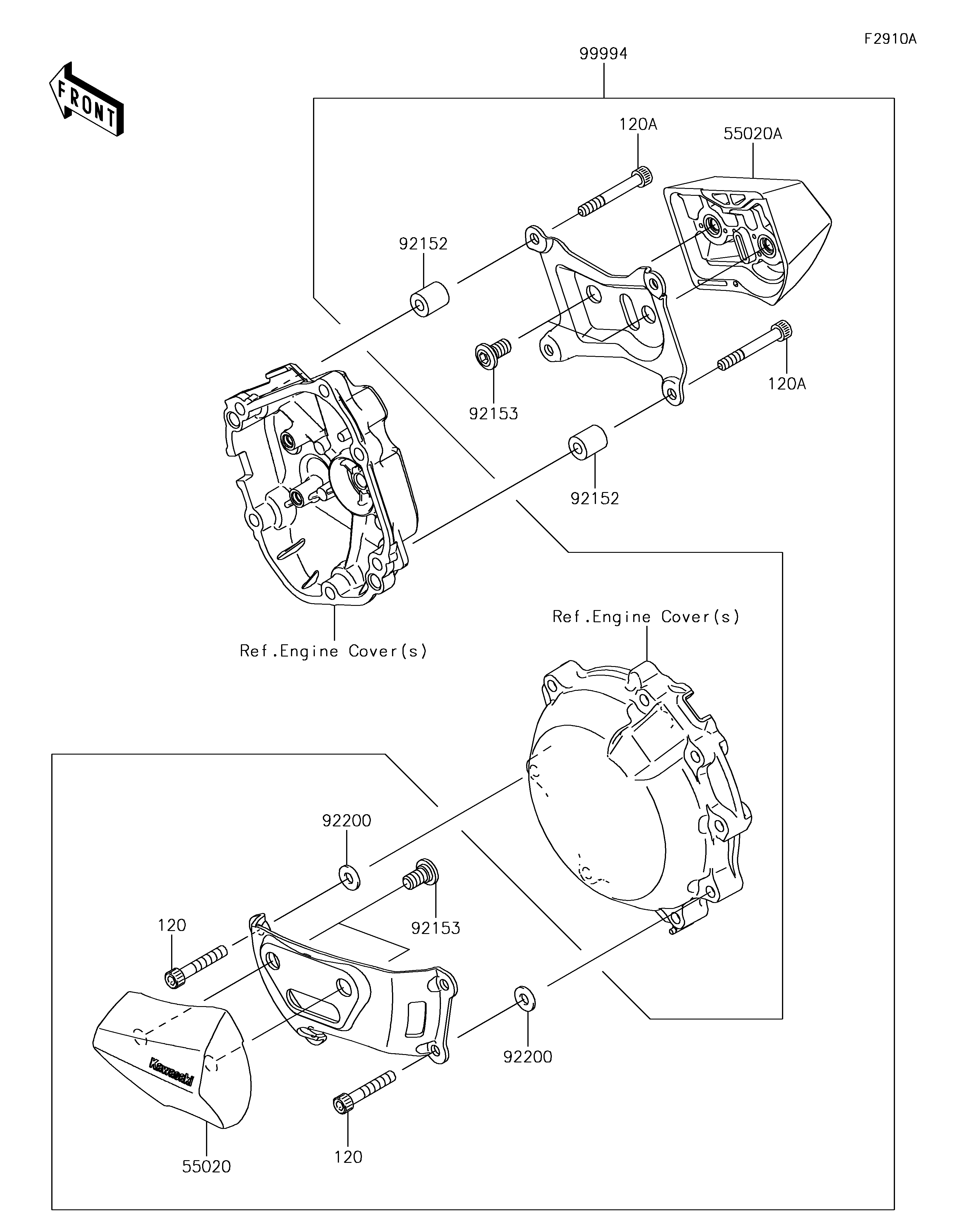

2018 NINJA® ZX-10R ABS - Accessory(Frame Slider)

120
120
120A
120A
55020
55020A
92152
92152
92153
92153
92200
92200
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X35 120 120CC0635 4
BOLT-SOCKET,6X45 120A 120CC0645 4
GUARD,ENGINE,LH 55020 55020-0595 1
GUARD,ENGINE,RH 55020A 55020-0596 1
COLLAR,6.5X14X16 92152 92152-0940 4
BOLT,SOCKET,8X15 92153 92153-1810 4
WASHER,6.5X14.5X1.5 92200 92200-3775 4
KIT-ACCESSORY,SLIDER 99994 99994-0210 1
