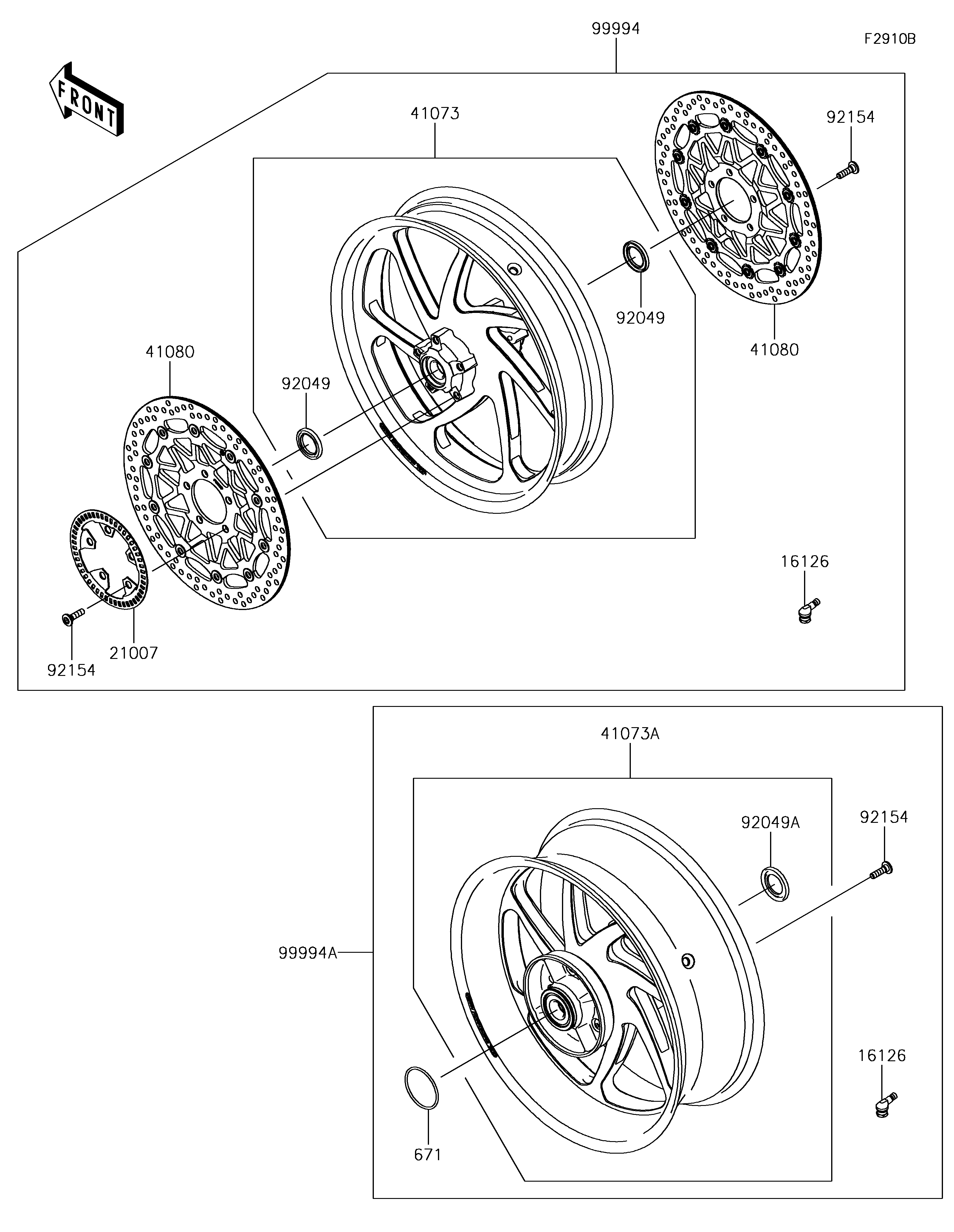

2018 NINJA® ZX-10R ABS - Accessory(Marchesini Wheel)

16126
16126
21007
41073
41073A
41080
41080
671
92049
92049
92049A
92154
92154
92154
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-0735 2
ROTOR,FR WHEEL 21007 21007-0651 1
WHEEL-ASSY,FR,M.BLACK+GRN 41073 41073-0717-60M 1
WHEEL-ASSY,RR,M.BLACK+GRN 41073A 41073-0718-60M 1
DISC,FR,BLACK+BLK 41080 41080-0675-18U 2
O RING,60MM 671 671B2560 1
SEAL-OIL,BJN-C2 32X47X5 92049 92049-0050 2
SEAL-OIL,31X52X5 92049A 92049-0722 1
BOLT,SOCKET,8X30 92154 92154-1865 14
MARCHESINI WHEEL KIT,FRONT 99994 99994-1007 1
MARCHESINI WHEEL KIT,REAR 99994A 99994-1008 1
