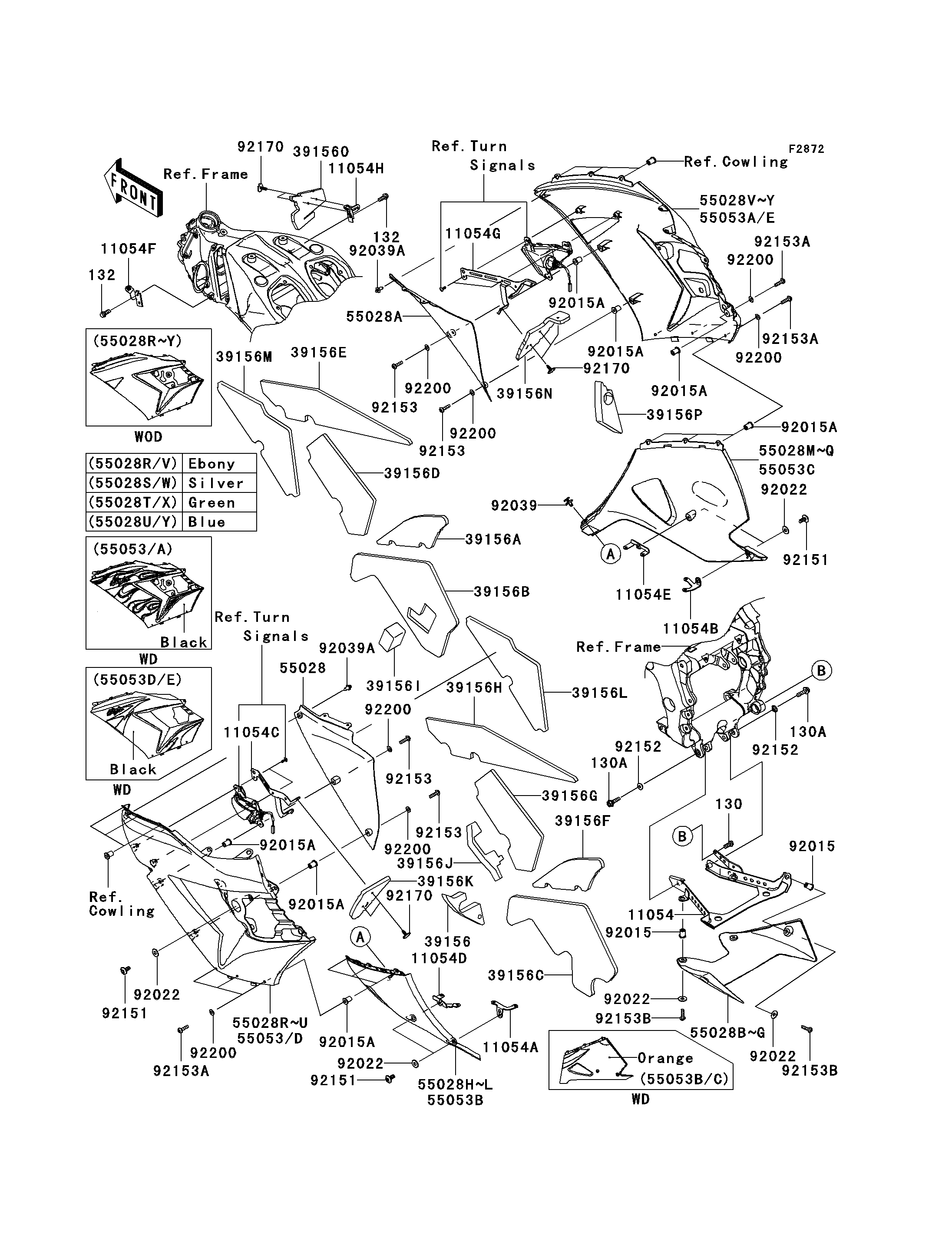

Parts Diagrams |
11054
11054
11054
11054A
11054A
11054A
11054B
11054B
11054B
11054C
11054C
11054C
11054D
11054D
11054D
11054E
11054E
11054E
11054F
11054F
11054F
11054G
11054G
11054G
11054H
11054H
11054H
39156
39156
39156
39156A
39156A
39156A
39156B
39156B
39156B
39156C
39156C
39156C
39156D
39156D
39156D
39156E
39156E
39156E
39156F
39156F
39156F
39156G
39156G
39156G
39156H
39156H
39156H
39156I
39156I
39156I
39156J
39156J
39156J
39156K
39156K
39156K
39156L
39156L
39156L
39156M
39156M
39156M
39156N
39156N
39156N
39156O
39156O
39156O
39156P
39156P
39156P
55028
55028
55028
55028A
55028A
55028A
55028G
55028G
55028G
55028L
55028L
55028L
55028Q
55028Q
55028Q
55028U
55028U
55028U
55028Y
55028Y
55028Y
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92151
92151
92151
92151
92151
92151
92151
92151
92151
92152
92152
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92170
92170
92170
92170
92170
92170
92170
92170
92170
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
130
130
130
130A
130A
130A
130A
130A
130A
132
132
132
132
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING | 11054 | 11054-0042 | 1 | ||
| BRACKET,CNT COWLING,RR,LH | 11054A | 11054-0562 | 1 | ||
| BRACKET,CNT COWLING,RR,RH | 11054B | 11054-0563 | 1 | ||
| BRACKET,HOT WIND COVER,LH | 11054C | 11054-0677 | 1 | ||
| BRACKET,CNT COWLING,FR,LH | 11054D | 11054-0722 | 1 | ||
| BRACKET,CNT COWLING,FR,RH | 11054E | 11054-0723 | 1 | ||
| BRACKET,CNT COWLING,HEAD PIPE | 11054F | 11054-0770 | 1 | ||
| BRACKET,HOT WIND COVER,RH | 11054G | 11054-0842 | 1 | ||
| BRACKET,CNT COWLING,HEAD PIPE | 11054H | 11054-0843 | 1 | ||
| PAD,CNT COWLING,LH | 39156 | 39156-0151 | 1 | ||
| PAD,CNT COWLING,RH,LWR | 39156A | 39156-0152 | 1 | ||
| PAD,LWR COWLING,RH | 39156B | 39156-0153 | 1 | ||
| PAD,LWR COWLING,LH | 39156C | 39156-0154 | 1 | ||
| PAD,CNT COWLING,RH,FR | 39156D | 39156-0162 | 1 | ||
| PAD,CNT COWLING,RH,UPP | 39156E | 39156-0163 | 1 | ||
| PAD,CNT COWLING,LH,LWR | 39156F | 39156-0164 | 1 | ||
| PAD,CNT COWLING,LH,FR | 39156G | 39156-0165 | 1 | ||
| PAD,CNT COWLING,LH,UPP | 39156H | 39156-0166 | 1 | ||
| PAD,LWR COWLING,RH | 39156I | 39156-0167 | 1 | ||
| PAD,CNT COWLING,LH | 39156J | 39156-0171 | 1 | ||
| PAD,HOT WIND COVER | 39156K | 39156-0175 | 1 | ||
| PAD,FR COWLING,LH | 39156L | 39156-0177 | 1 | ||
| PAD,FR COWLING,RH | 39156M | 39156-0178 | 1 | ||
| PAD,HOT WIND COVER | 39156N | 39156-0182 | 1 | ||
| PAD | 39156O | 39156-0183 | 1 | ||
| PAD,CNT COWLING,RH | 39156P | 39156-0196 | 1 | ||
| COWLING,FR,LH | 55028 | 55028-0059 | 1 | ||
| COWLING,FR,RH | 55028A | 55028-0060 | 1 | ||
| COWLING,LWR,RR,M.M.S.BLUE | 55028G | 55028-0063-19A | 1 | ||
| COWLING,LWR,LH,M.M.S.BLUE | 55028L | 55028-0084-19A | 1 | ||
| COWLING,LWR,RH,M.M.S.BLUE | 55028Q | 55028-0085-19A | 1 | ||
| COWLING,CNT,LH,M.M.S.BLUE | 55028U | 55028-0218-19A | 1 | ||
| COWLING,CNT,RH,M.M.S.BLUE | 55028Y | 55028-0219-19A | 1 | ||
| NUT | 92015 | 92015-1700 | 4 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 11 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 9 | ||
| RIVET | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0023 | 2 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 5 | ||
| COLLAR | 92152 | 92152-0378 | 2 | ||
| BOLT,SOCKET,5X20 | 92153 | 92153-0873 | 4 | ||
| BOLT,SOCKET,5X16 | 92153A | 92153-1244 | 7 | ||
| BOLT,SOCKET,6X23 | 92153B | 92153-1267 | 4 | ||
| CLAMP | 92170 | 92170-1442 | 7 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 11 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 1 | ||
| BOLT-FLANGED,6X22 | 130A | 130BA0622 | 2 | ||
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 2 | ||
| COWLING,LWR,RR,SILVER | 55028E | 55028-0063-17M | 1 | CAUS | |
| COWLING,LWR,LH,SILVER | 55028J | 55028-0084-17M | 1 | CAUS | |
| COWLING,LWR,RH,SILVER | 55028O | 55028-0085-17M | 1 | CAUS | |
| COWLING,CNT,LH,SILVER | 55028S | 55028-0218-17M | 1 | CAUS | |
| COWLING,CNT,RH,SILVER | 55028W | 55028-0219-17M | 1 | CAUS |
| BRACKET,LWR COWLING | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CNT COWLING,RR,LH | |
| REF # | 11054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CNT COWLING,RR,RH | |
| REF # | 11054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HOT WIND COVER,LH | |
| REF # | 11054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CNT COWLING,FR,LH | |
| REF # | 11054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CNT COWLING,FR,RH | |
| REF # | 11054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CNT COWLING,HEAD PIPE | |
| REF # | 11054F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HOT WIND COVER,RH | |
| REF # | 11054G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CNT COWLING,HEAD PIPE | |
| REF # | 11054H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,LH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,RH,LWR | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,RH | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,LH | |
| REF # | 39156C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,RH,FR | |
| REF # | 39156D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,RH,UPP | |
| REF # | 39156E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,LH,LWR | |
| REF # | 39156F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,LH,FR | |
| REF # | 39156G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,LH,UPP | |
| REF # | 39156H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,RH | |
| REF # | 39156I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,LH | |
| REF # | 39156J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,HOT WIND COVER | |
| REF # | 39156K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,FR COWLING,LH | |
| REF # | 39156L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,FR COWLING,RH | |
| REF # | 39156M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,HOT WIND COVER | |
| REF # | 39156N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,CNT COWLING,RH | |
| REF # | 39156P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR,LH | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR,RH | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RR,M.M.S.BLUE | |
| REF # | 55028G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,M.M.S.BLUE | |
| REF # | 55028L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,M.M.S.BLUE | |
| REF # | 55028Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,M.M.S.BLUE | |
| REF # | 55028U |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,RH,M.M.S.BLUE | |
| REF # | 55028Y |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X20 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X23 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLONE,5.3X11.5X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RR,SILVER | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| COWLING,LWR,LH,SILVER | |
| REF # | 55028J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| COWLING,LWR,RH,SILVER | |
| REF # | 55028O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| COWLING,CNT,LH,SILVER | |
| REF # | 55028S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| COWLING,CNT,RH,SILVER | |
| REF # | 55028W |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
