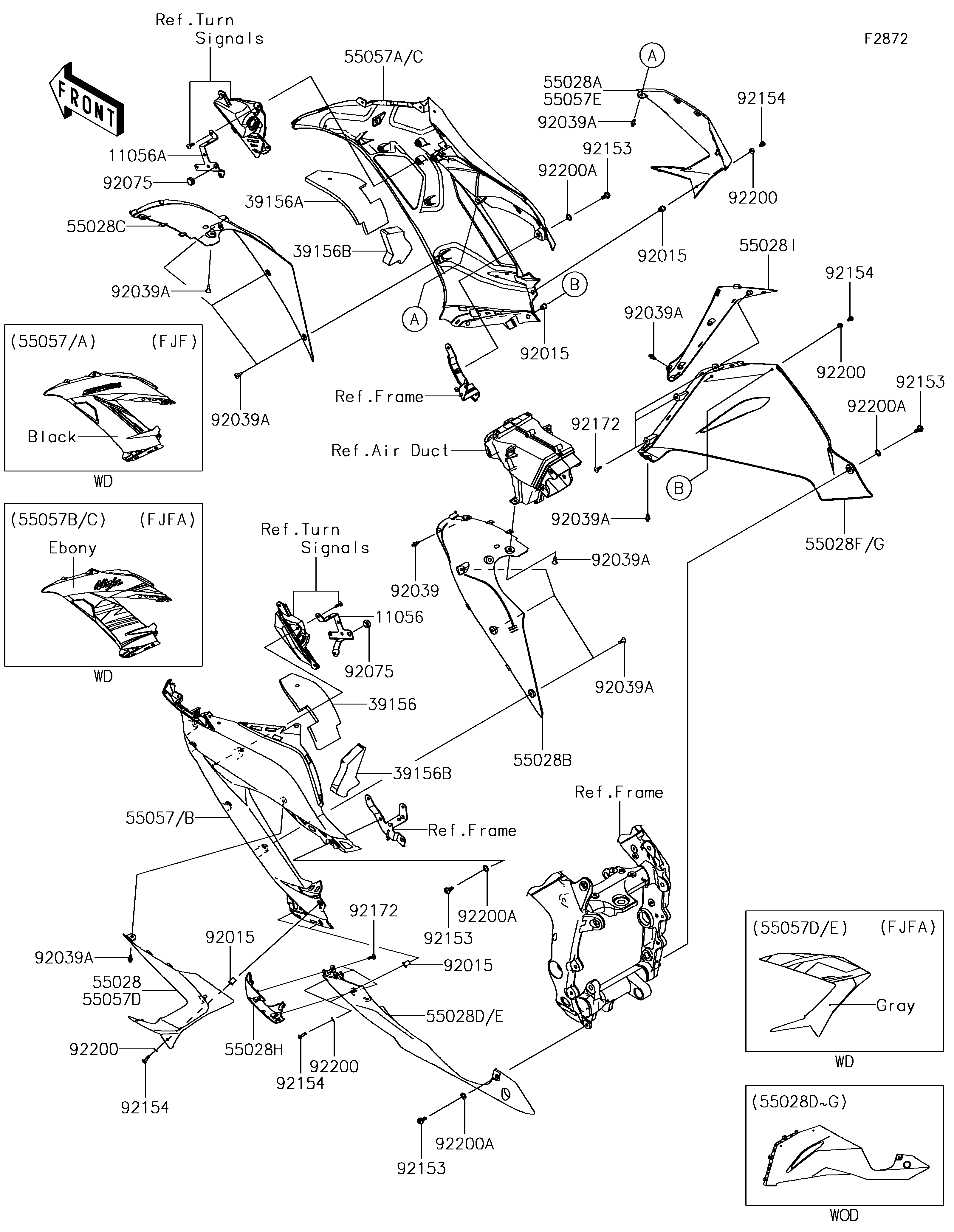

2018 NINJA® ZX™-6R ABS - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
39156
39156A
39156B
39156B
55028
55028A
55028B
55028C
55028D
55028F
55028H
55028I
55057
55057A
92015
92015
92015
92015
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92075
92075
92153
92153
92153
92153
92154
92154
92154
92154
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE COWLING,LH 11056 11056-2186 1
BRACKET,SIDE COWLING,RH 11056A 11056-2187 1
PAD,T10,COWLING LH 39156 39156-0944 1
PAD,T10,COWLING RH 39156A 39156-0945 1
PAD,T20 39156B 39156-0958 2
COWLING,FIN,LH,M.M.F.SILVER 55028 55028-0446-60S 1
COWLING,FIN,RH,M.M.F.SILVER 55028A 55028-0447-60S 1
COWLING,FR,LH 55028B 55028-0448 1
COWLING,FR,RH 55028C 55028-0449 1
COWLING,LWR,LH,M.F.S.BLACK 55028D 55028-0450-739 1
COWLING,LWR,RH,M.F.S.BLACK 55028F 55028-0451-739 1
COWLING,LWR,FR,LH 55028H 55028-0452 1
COWLING,LWR,FR,RH 55028I 55028-0453 1
COWLING,SIDE,LH,M.F.S.BLACK 55057 55057-5427-739 1
COWLING,SIDE,RH,M.F.S.BLACK 55057A 55057-5428-739 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0051 1
RIVET 92039A 92039-0068 12
DAMPER 92075 92075-1983 2
BOLT,SOCKET,6MM 92153 92153-0489 4
BOLT,SOCKET,5X16 92154 92154-0209 6
SCREW,TAPPING,5X10 92172 92172-0262 6
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
WASHER,10.4X15.9X0.5 92200A 92200-0157 4
