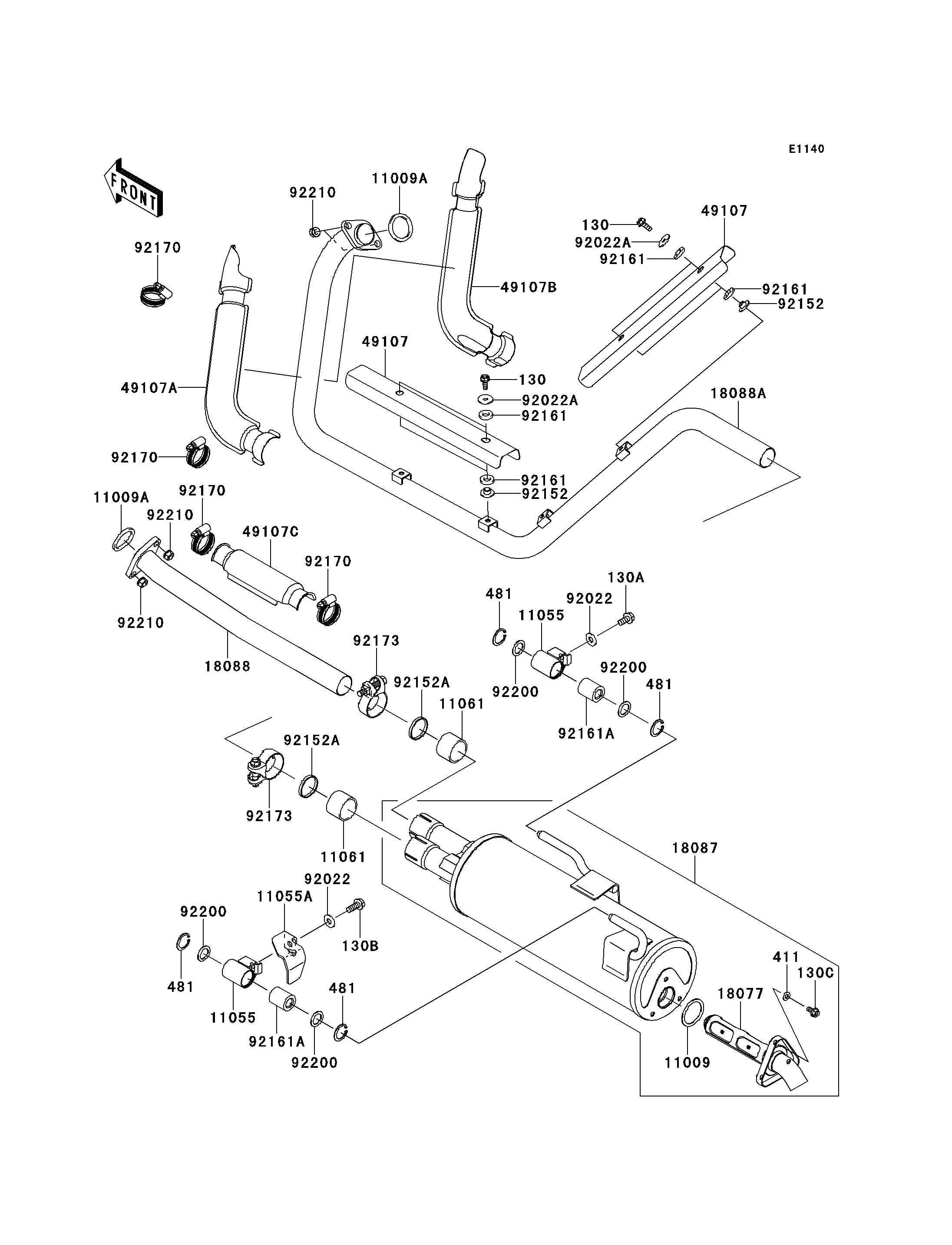

2012 TERYX® 750 FI 4x4 LE SGE - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
130C
411
481
481
481
481
11009
11009A
11009A
11055
11055
11055A
11061
11061
18077
18087
18088
18088A
49107
49107
49107A
49107B
49107C
92022
92022
92022A
92022A
92152
92152
92152A
92152A
92161
92161
92161
92161
92161A
92161A
92170
92170
92170
92170
92173
92173
92200
92200
92200
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BD0616 4
BOLT-FLANGED,8X16 130A 130CB0816 1
BOLT-FLANGED,8X20 130B 130CB0820 1
BOLT-FLANGED,6X12 130C 130CD0612 3
WASHER-PLAIN,6MM 411 411S0600 3
CIRCLIP-TYPE-C,25MM 481 481J2500 4
GASKET,EXHAUST PIPE HOLDER 11009 11009-1856 1
GASKET,EXHAUST HOLDER 11009A 11009-1894 2
BRACKET 11055 11055-0825 2
BRACKET 11055A 11055-1374 1
GASKET,MUFFLER CONNECTING 11061 11061-0360 2
ARRESTER-SPARK 18077 18077-0027 1
MUFFLER 18087 18087-0205 1
PIPE-EXHAUST,RR 18088 18088-0466 1
PIPE-EXHAUST,FR 18088A 18088-0490 1
COVER-EXHAUST PIPE,MIDDLE 49107 49107-0118 2
COVER-EXHAUST PIPE,FR,LH 49107A 49107-0147 1
COVER-EXHAUST PIPE,FR,RH 49107B 49107-0148 1
COVER-EXHAUST PIPE,RR 49107C 49107-0149 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 2
WASHER,6.5X22X1.6 92022A 92022-237 4
COLLAR 92152 92152-0423 4
COLLAR 92152A 92152-0741 2
DAMPER 92161 92161-0319 8
DAMPER 92161A 92161-0594 2
CLAMP 92170 92170-1036 4
CLAMP,39.5MM 92173 92173-0009 2
WASHER,17X24.5X1.2 92200 92200-0421 4
NUT,8MM 92210 92210-1242 4
