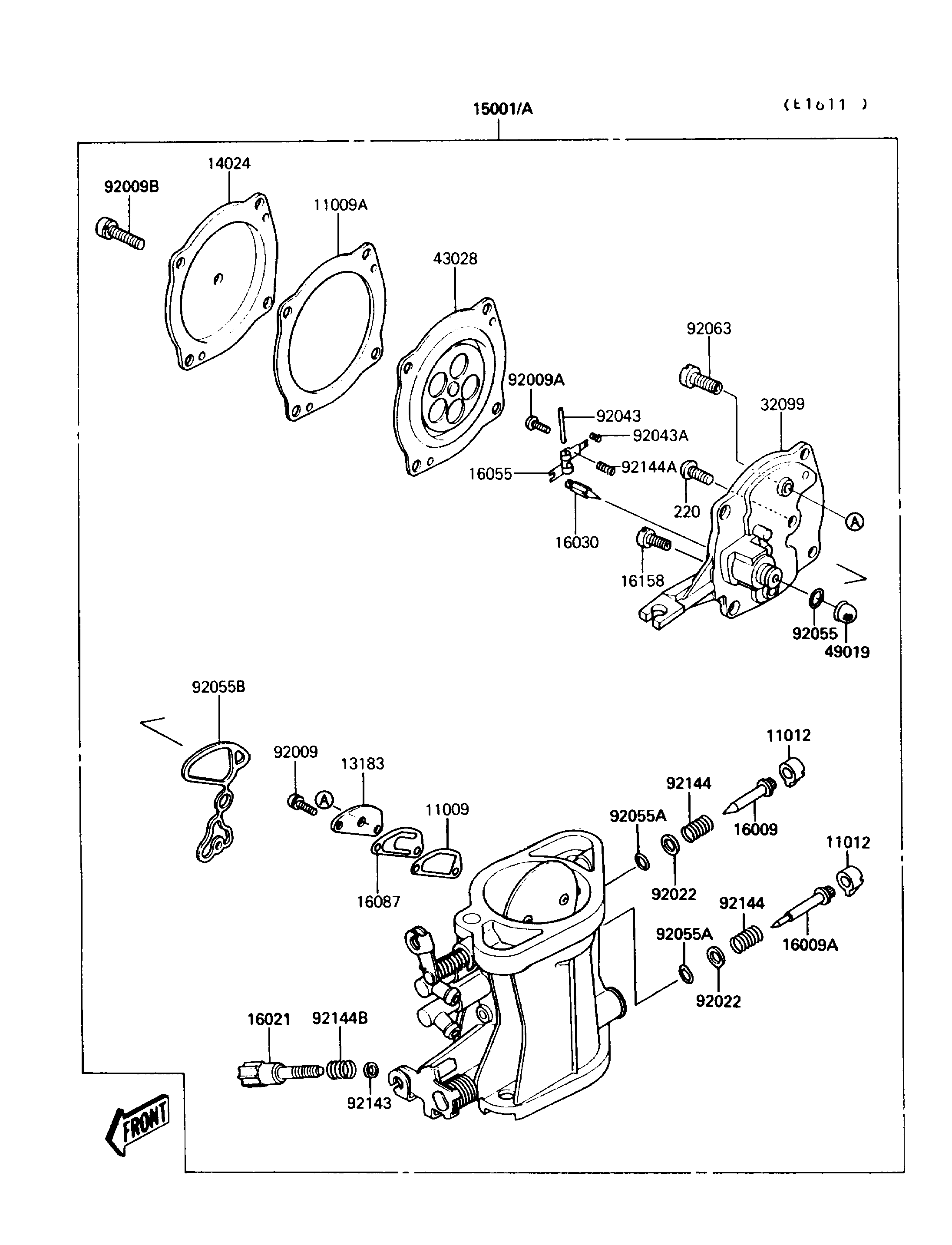

1990 650 SX - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009A
11012
11012
13183
14024
15001A
16009
16009A
16021
16030
16055
16087
16158
220
32099
43028
49019
92009
92009A
92009B
92022
92022
92043
92043A
92055
92055A
92055A
92055B
92063
92143
92144
92144
92144A
92144B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CHOKE VALVE 11009 11009-3729 1
GASKET,DIAPHRAGM 11009A 11009-3730 1
CAP,JET NEEDLE 11012 11012-3727 2
PLATE 13183 13183-3707 1
COVER,CARBURETOR 14024 14024-3720 1
CARBURETOR-ASSY 15001A 15001-3747 1
NEEDLE-JET,HIGH SPEED 16009 16009-3705 1
NEEDLE-JET,LOW SPEED 16009A 16009-3706 1
SCREW-THROTTLE STOP 16021 16021-3702 1
VALVE-FLOAT 16030 16030-3701 1
ARM-FLOAT 16055 16055-3701 1
VALVE-CHECK 16087 16087-3702 1
JET-SLOW,#48 16158 16158-3701 1
SCREW-PAN-CROS 220 220D0408 1
CASE,CARBURETOR 32099 32099-3729 1
DIAPHRAGM,CARBURETOR 43028 43028-3704 1
FILTER-FUEL,STRAINER 49019 49019-3707 1
SCREW,3X6 92009 92009-3710 2
SCREW,3X6 92009A 92009-3712 1
SCREW,4X16 92009B 92009-3739 4
WASHER,ADJUST SCREW 92022 92022-3745 2
PIN,FLOAT 92043 92043-1209 1
PIN,THROTTLE STOP SCREW 92043A 92043-3712 1
RING-O 92055 92055-1246 1
RING-O,ADJUST SCREW 92055A 92055-3713 2
RING-O 92055B 92055-3720 1
JET-MAIN,2ND,#125 92063 92063-1069 1
COLLAR,THROTTLE STOP SCREW 92143 92143-3709 1
SPRING,ADJUST SCREW 92144 92144-3704 2
SPRING,FLOAT VALVE 92144A 92144-3705 1
SPRING,THROTTLE STOP SCREW 92144B 92144-3706 1
