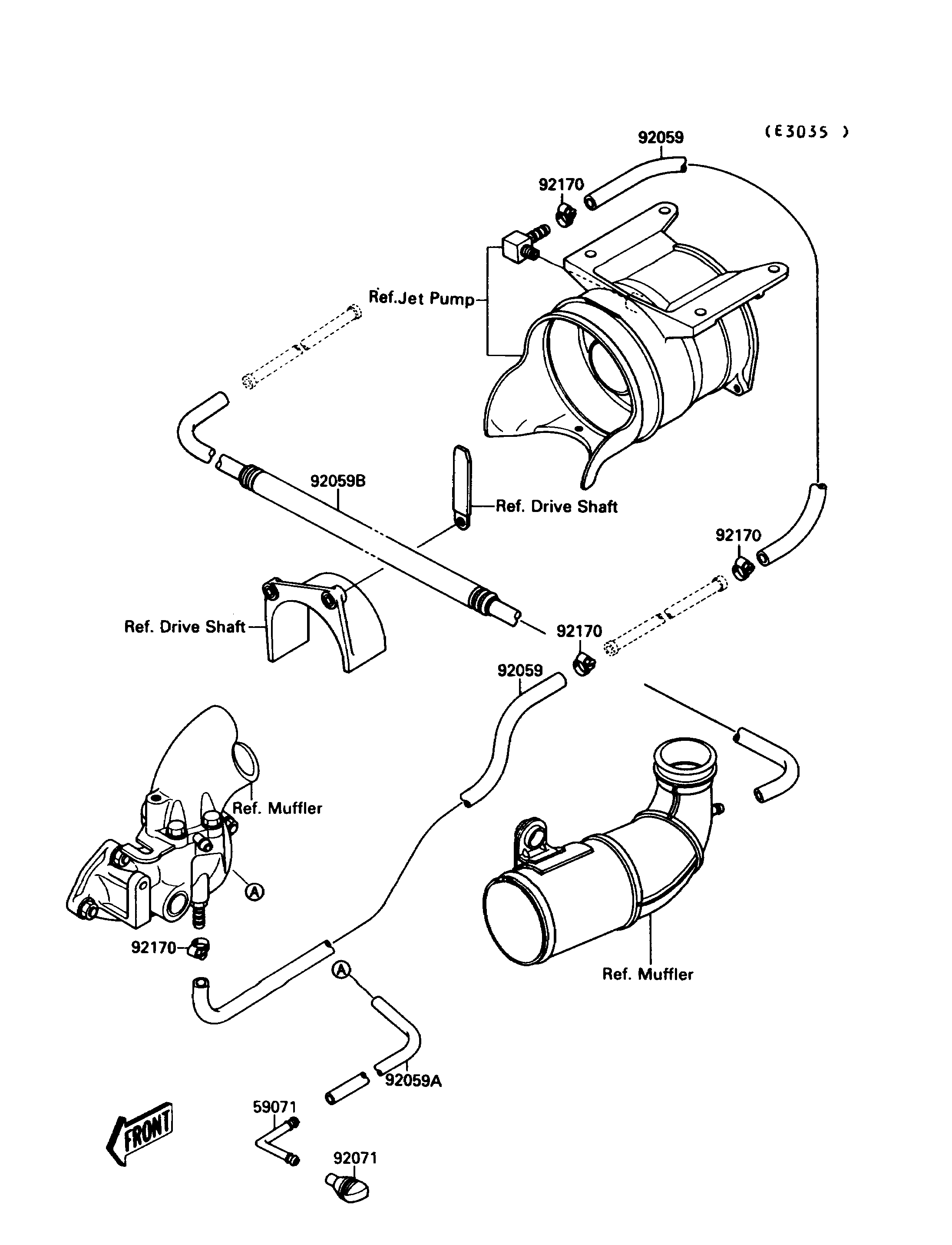

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
JOINT 59071 59071-3706 1
TUBE,9X16X400 92059 92059-3793 2
TUBE 92059A 92059-3813 1
TUBE,L=490 92059B 92059-3862 1
GROMMET 92071 92071-3736 1
CLAMP 92170 92170-3718 4
