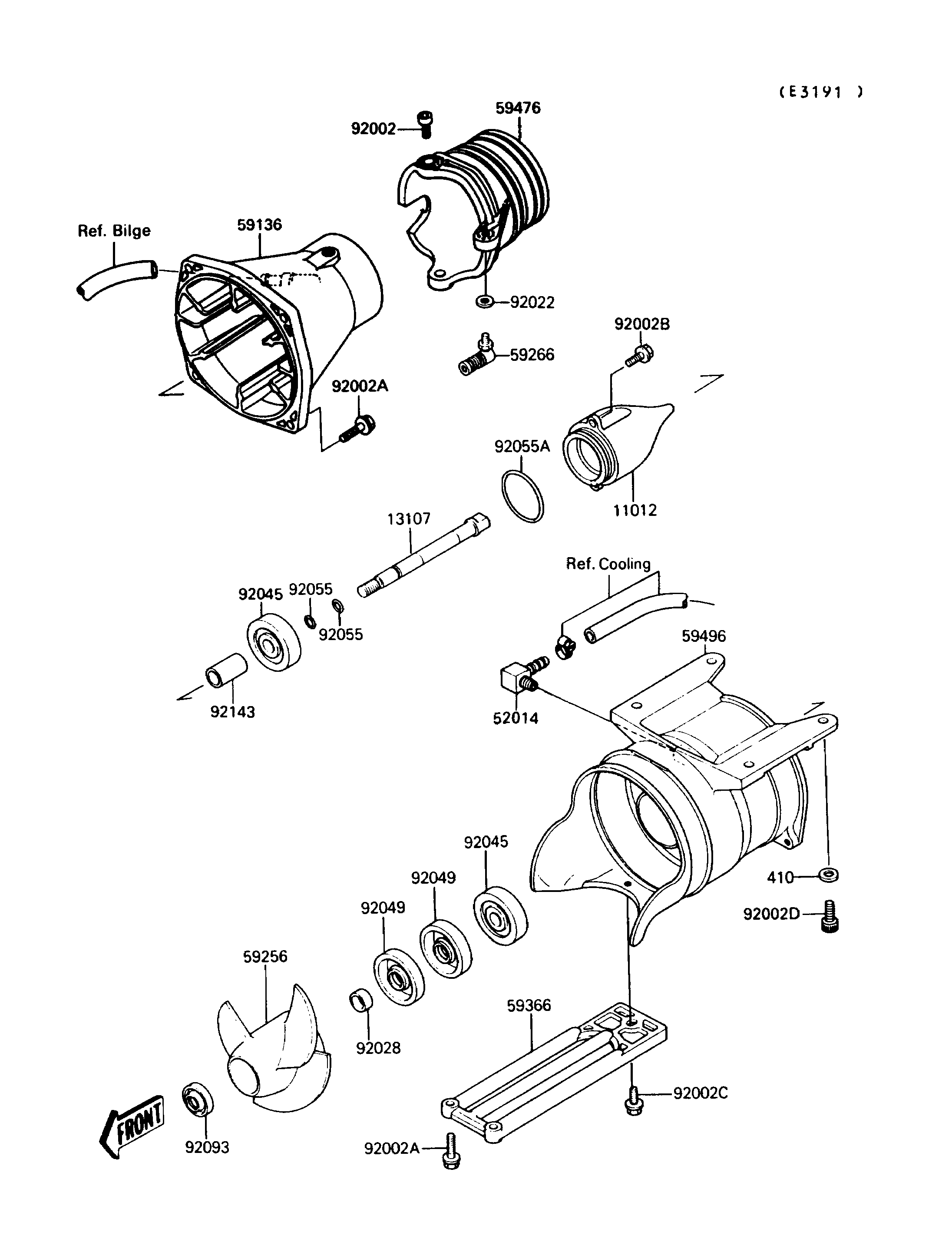

Parts Diagrams |
11012
13107
410
52014
59136
59256
59266
59366
59476
59496
92002
92002A
92002A
92002B
92002C
92002D
92022
92028
92045
92045
92049
92049
92055
92055
92055A
92093
92143
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,JET PUMP | 11012 | 11012-3712 | 1 | ||
SHAFT,JET PUMP | 13107 | 13107-3708 | 1 | ||
WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 4 | ||
ELBOW | 52014 | 52014-3002 | 1 | ||
NOZZLE-PUMP | 59136 | 59136-3710 | 1 | ||
IMPELLER | 59256 | 59256-3705 | 1 | ||
JOINT-BALL | 59266 | 59266-3701 | 1 | ||
GRATE | 59366 | 59366-3702 | 1 | ||
NOZZLE-STRG | 59476 | 59476-3711 | 1 | ||
VANE-GUIDE | 59496 | 59496-3701 | 1 | ||
BOLT,SOCKET,6X11 | 92002 | 92001-3701 | 2 | ||
BOLT,6X25 | 92002A | 92002-3714 | 6 | ||
BOLT,6X16 | 92002B | 92002-3728 | 2 | ||
BOLT,6X12 | 92002C | 92002-3763 | 1 | ||
BOLT,SOCKET,8X20 | 92002D | 92002-3771 | 4 | ||
WASHER | 92022 | 92022-567 | 1 | ||
BUSHING,17X25X15 | 92028 | 92028-3717 | 1 | ||
BEARING-BALL,#63032RD | 92045 | 92045-3706 | 2 | ||
SEAL-OIL,S625476 | 92049 | 92049-3708 | 2 | ||
RING-O,13X1.9 | 92055 | 92055-1021 | 2 | ||
RING-O | 92055A | 92055-3706 | 1 | ||
SEAL | 92093 | 92093-3702 | 1 | ||
COLLAR,17.4X25.4X53 | 92143 | 92143-3708 | 1 |
