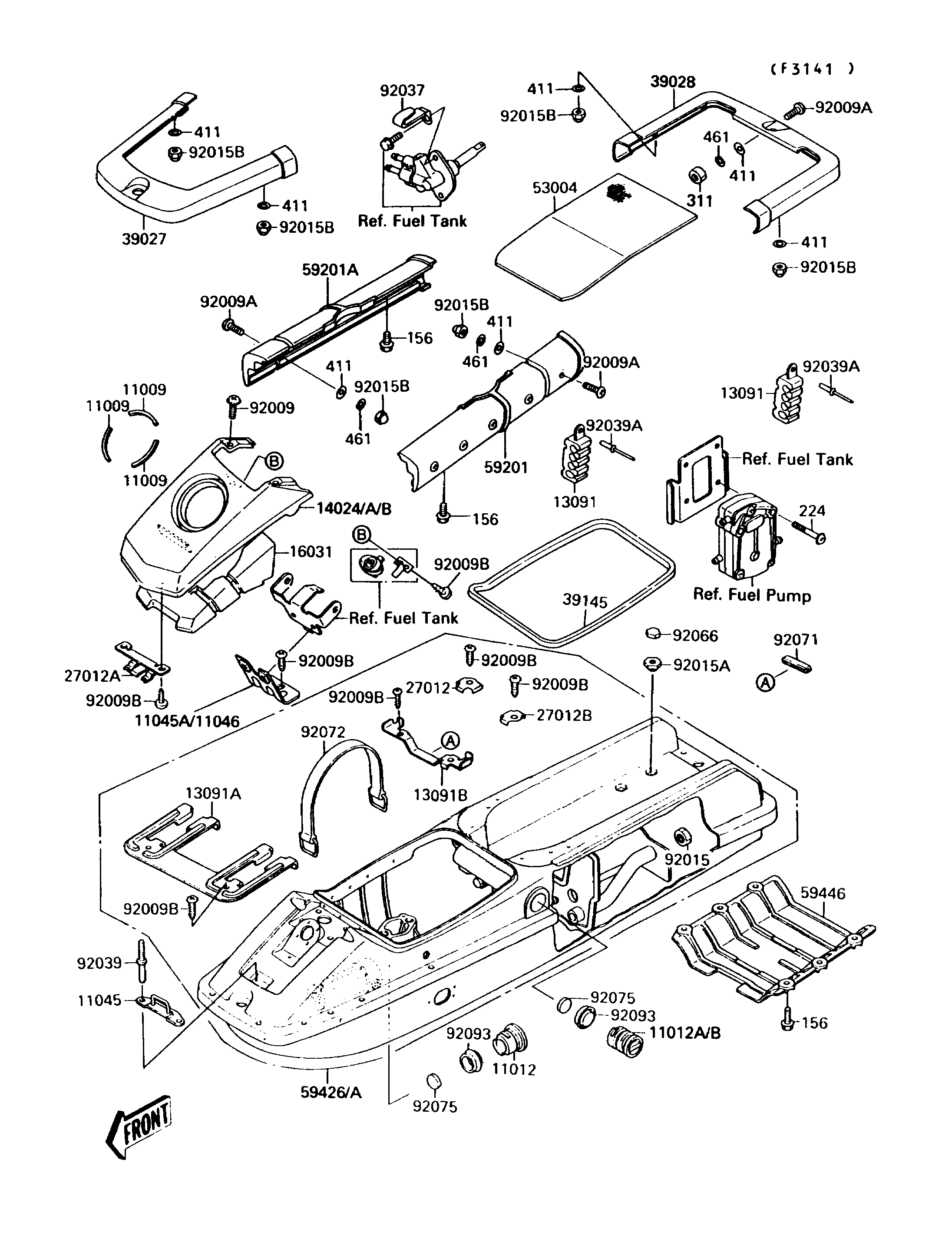

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
11009
11009
11009
11009
11012
11012
11012B
11012B
11045
11045
11045
11045
13091
13091
13091
13091
13091A
13091A
13091B
13091B
14024
14024
16031
16031
27012
27012
27012A
27012A
27012B
27012B
39027
39027
39028
39028
39145
39145
53004
53004
59201
59201
59201A
59201A
59426A
59426A
59446
59446
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92037
92037
92039
92039
92039A
92039A
92039A
92039A
92066
92066
92071
92071
92072
92072
92075
92075
92075
92075
92093
92093
92093
92093
156
156
156
156
156
156
224
224
311
311
411
411
411
411
411
411
411
411
411
411
411
411
411
411
461
461
461
461
461
461
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CAP | 11009 | 11009-3732 | 3 | ||
| CAP | 11012 | 11012-3708 | 1 | ||
| CAP | 11012B | 11012-3746 | 1 | ||
| BRACKET,FRONT DECK | 11045 | 11045-3730 | 1 | ||
| HOLDER | 13091 | 13091-3715 | 3 | ||
| HOLDER | 13091A | 13091-3722 | 1 | ||
| HOLDER | 13091B | 13091-3725 | 1 | ||
| COVER,TANK CAP,M.Z.BLUE | 14024 | 14024-3732-EM | 1 | ||
| FLOAT | 16031 | 16031-3733 | 1 | ||
| HOOK | 27012 | 27012-3713 | 1 | ||
| HOOK,FRONT DECK | 27012A | 27012-3715 | 1 | ||
| HOOK | 27012B | 27012-501 | 1 | ||
| BUMPER-FRONT | 39027 | 39027-3706 | 1 | ||
| BUMPER-REAR | 39028 | 39028-3707 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3706 | 1 | ||
| MAT,DECK | 53004 | 53004-3722 | 1 | ||
| BUMPER,SIDE,LH | 59201 | 59201-3714 | 1 | ||
| BUMPER,SIDE,RH | 59201A | 59201-3715 | 1 | ||
| HULL-COMP,JET WHITE | 59426A | 59426-5510-8C | 1 | ||
| COVER-JET PUMP | 59446 | 59446-3705 | 1 | ||
| SCREW,5X16 | 92009 | 92009-3726 | 2 | ||
| SCREW,6X23.5 | 92009A | 92009-3745 | 13 | ||
| SCREW,TAPPING | 92009B | 92011-561 | 11 | ||
| NUT,20MM | 92015 | 92015-3738 | 1 | ||
| NUT,8MM | 92015A | 92015-3744 | 4 | ||
| NUT,CAP,6MM | 92015B | 92015-3755 | 24 | ||
| CLAMP,L=100 | 92037 | 92037-3736 | 1 | ||
| RIVET | 92039 | 92039-3702 | 2 | ||
| RIVET | 92039A | 92039-3714 | 3 | ||
| PLUG | 92066 | 92066-3713 | 2 | ||
| GROMMET | 92071 | 92071-3755 | 1 | ||
| BAND,L=384 | 92072 | 92072-3713 | 2 | ||
| DAMPER | 92075 | 92075-3719 | 2 | ||
| SEAL,OSR70X82X7.5 | 92093 | 92093-3704 | 2 | ||
| BOLT-WP,6X20 | 156 | 156R0620 | 14 | ||
| SCREW-PAN-WP-CROS,6X40 | 224 | 224R0640 | 2 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 3 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 27 | ||
| WASHER-SPRING,6MM | 461 | 461S0600 | 13 | ||
| BRACKET,CENTER | 11046 | 11046-3836 | 1 |
| GASKET,CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FRONT DECK | |
| REF # | 11045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TANK CAP,M.Z.BLUE | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT | |
| REF # | 16031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,FRONT DECK | |
| REF # | 27012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK | |
| REF # | 27012B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-FRONT | |
| REF # | 39027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR | |
| REF # | 39028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,DECK | |
| REF # | 53004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,SIDE,LH | |
| REF # | 59201 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,SIDE,RH | |
| REF # | 59201A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HULL-COMP,JET WHITE | |
| REF # | 59426A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-JET PUMP | |
| REF # | 59446 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X23.5 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=100 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=384 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,OSR70X82X7.5 | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-WP,6X20 | |
| REF # | 156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS,6X40 | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 27 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CENTER | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
