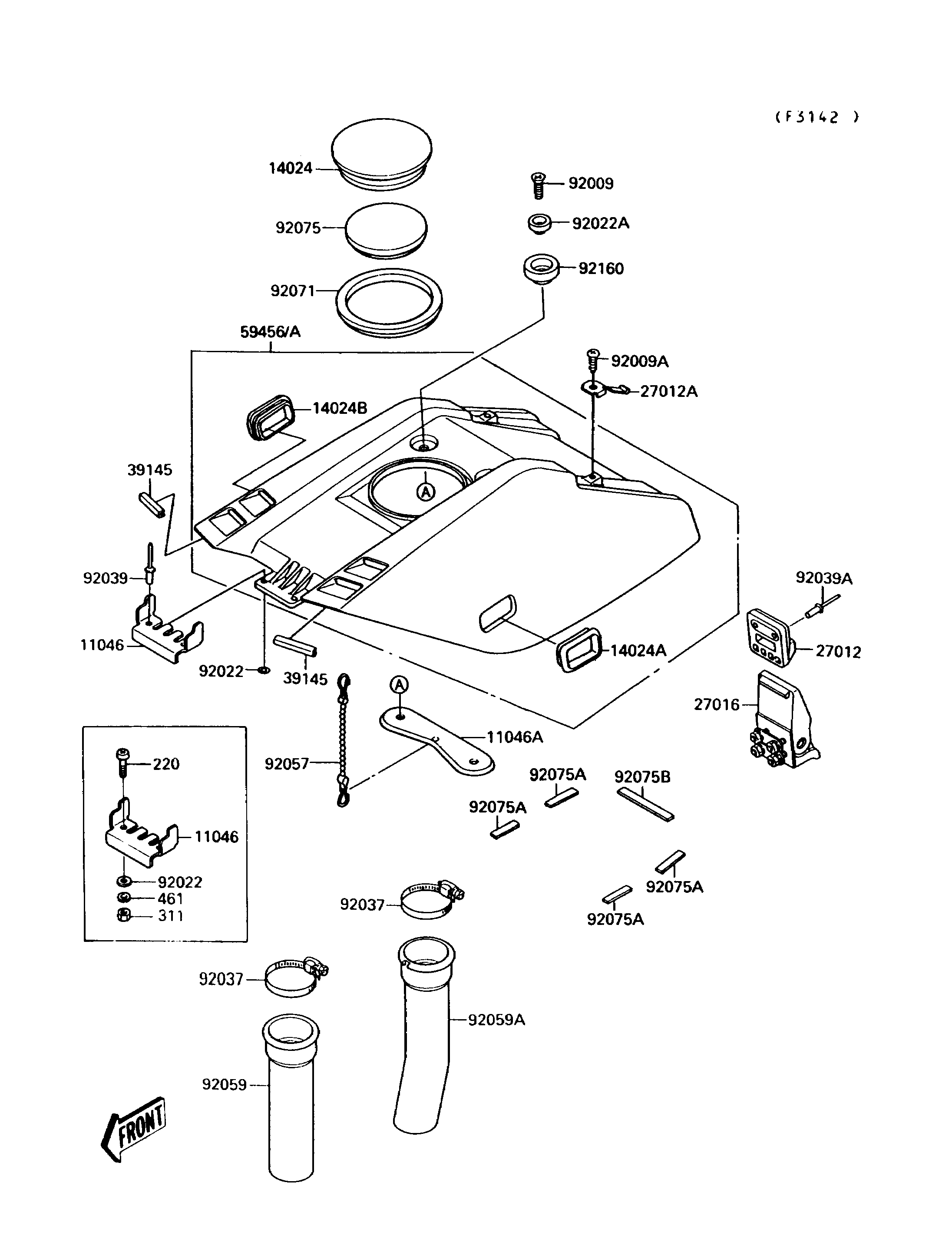

1990 650 SX - Engine Hood

DOWNLOAD PDF
SELECT A NEW PART
11046
11046
11046A
14024
14024A
14024B
220
27012
27012A
27016
311
39145
39145
461
59456A
92009
92009A
92022
92022
92022A
92037
92037
92039A
92057
92059
92059A
92071
92075
92075A
92075A
92075A
92075A
92075B
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11046 11046-3703 1
BRACKET 11046A 11046-3748 1
COVER 14024 14024-3748 1
COVER,LH,J.WHITE 14024A 14024-3771-8C 1
COVER,RH,J.WHITE 14024B 14024-3772-8C 1
SCREW-PAN-CROS,5X20 220 220R0520 2
HOOK 27012 27012-3711 1
HOOK,FOR PAD 27012A 27012-3716 2
LOCK-ASSY 27016 27016-3703 1
NUT-HEX,5MM 311 311R0500 2
TRIM-SEAL 39145 39145-3708 2
WASHER-SPRING,5MM 461 461S0500 2
HOOD-COMP-ENGINE,J.WHITE 59456A 59456-3714-8C 1
SCREW,6X25 92009 92009-3717 2
SCREW,TAPPING 92009A 92011-561 2
WASHER,5X16X1.5 92022 92022-3041 2
WASHER 92022A 92022-3732 2
CLAMP 92037 92037-3738 2
RIVET 92039A 92039-3722 2
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE 92059 92059-3803 1
TUBE 92059A 92059-3815 1
GROMMET 92071 92071-3742 1
DAMPER 92075 92075-3737 1
DAMPER,DUCT,RR,LH 92075A 92075-3744 4
DAMPER,DUCT,REAR 92075B 92075-3746 1
DAMPER 92160 92160-3709 2
