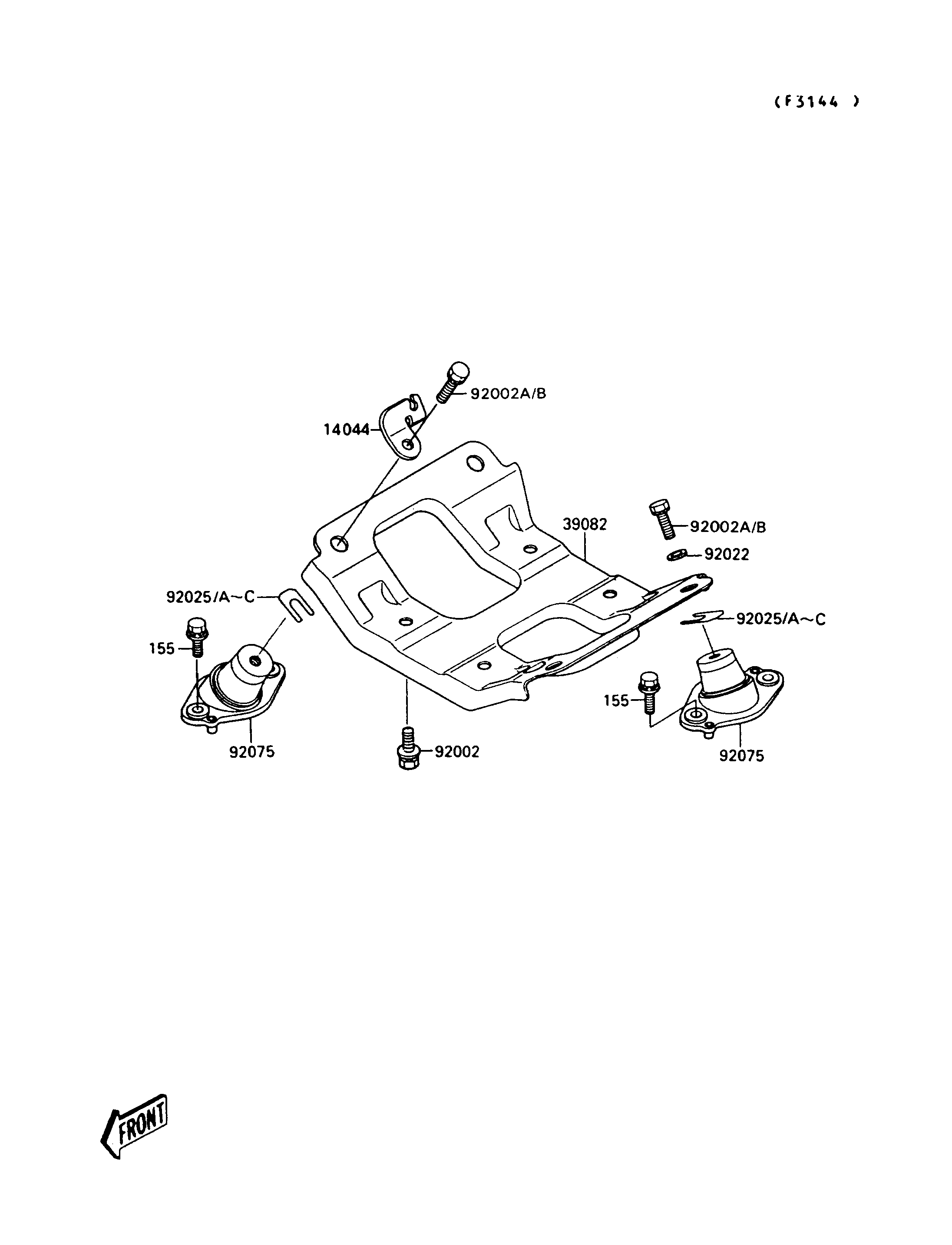

1990 650 SX - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
14044
155
155
39082
92002
92002A
92002A
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-CABLE 14044 14044-3709 1
BOLT-WSP-SMALL,8X20 155 155R0820 8
MOUNT-ENGINE 39082 39082-3705 1
BOLT,10X25 92002 92002-3765 4
BOLT,10X25 92002A 92002-3770 4
WASHER,32X10.5X4 92022 92022-3023 3
SHIM,T=0.3MM 92025 92025-3705 AR
SHIM,T=0.5MM 92025A 92025-3706 AR
SHIM,T=1.0MM 92025B 92025-3707 AR
SHIM,T=1.5MM 92025C 92025-3708 AR
DAMPER,ENGINE MOUNT 92075 92075-3724 4
