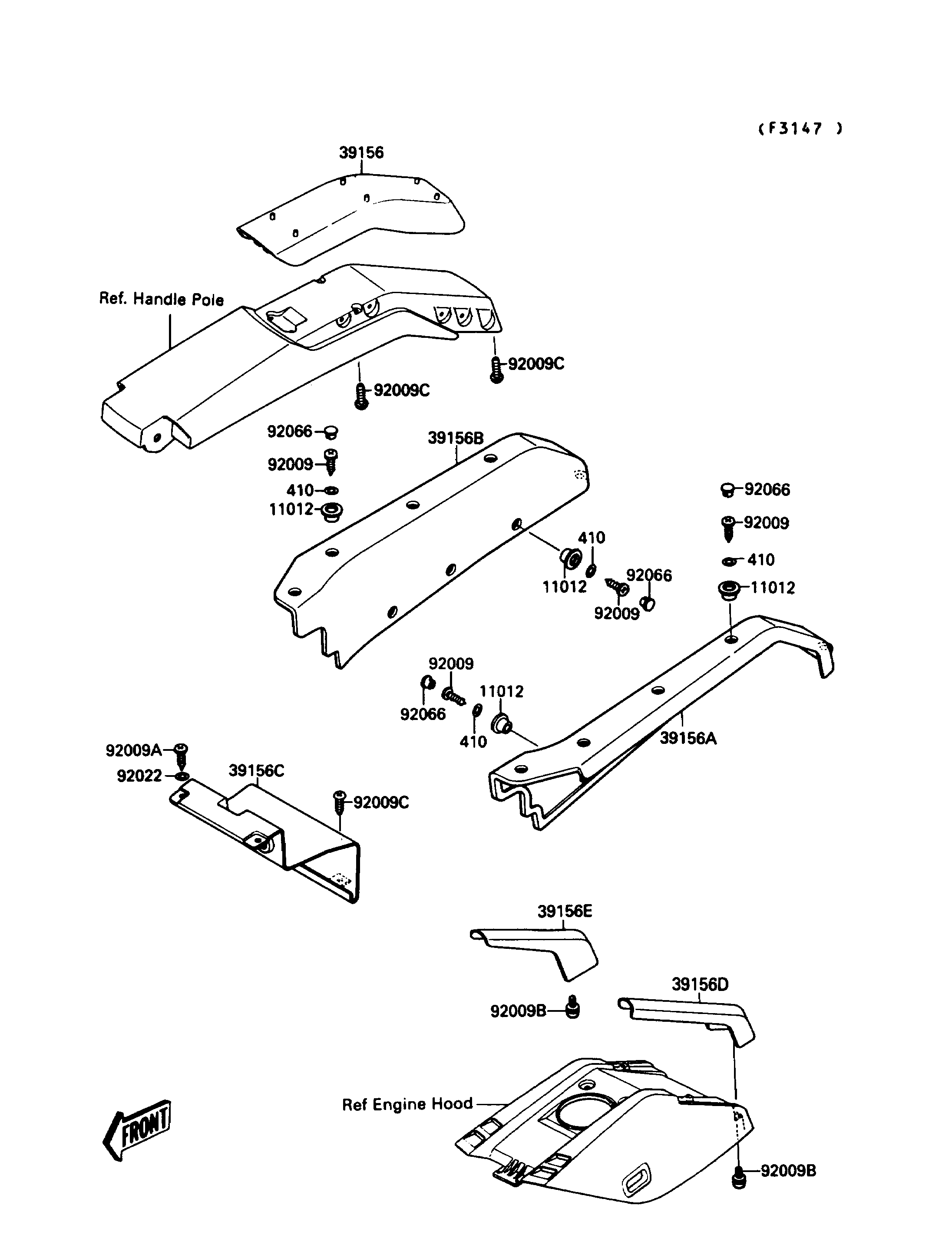

Parts Diagrams |
11012
11012
11012
11012
39156
39156A
39156B
39156C
39156D
39156E
410
410
410
410
92009
92009
92009
92009
92009A
92009B
92009B
92009C
92009C
92009C
92022
92066
92066
92066
92066
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3725 | 14 | ||
| PAD,HANDLE POLE | 39156 | 39156-3714 | 1 | ||
| PAD,HULL DECK,LH | 39156A | 39156-3717 | 1 | ||
| PAD,HULL DECK,RH | 39156B | 39156-3718 | 1 | ||
| PAD,METER | 39156C | 39156-3719 | 1 | ||
| PAD,ENGINE HOOD,LH | 39156D | 39156-3728 | 1 | ||
| PAD,ENGINE HOOD,RH | 39156E | 39156-3729 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 14 | ||
| SCREW,TAPPING,5X20 | 92009 | 92009-3716 | 14 | ||
| SCREW | 92009A | 92009-3728 | 2 | ||
| SCREW,5X12 | 92009B | 92009-3740 | 2 | ||
| SCREW,TAPPING | 92009C | 92011-561 | 6 | ||
| WASHER,6MM | 92022 | 92022-3747 | 2 | ||
| PLUG | 92066 | 92066-3716 | 14 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| PAD,HANDLE POLE | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,HULL DECK,LH | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,HULL DECK,RH | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,METER | |
| REF # | 39156C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,ENGINE HOOD,LH | |
| REF # | 39156D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,ENGINE HOOD,RH | |
| REF # | 39156E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,6MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
