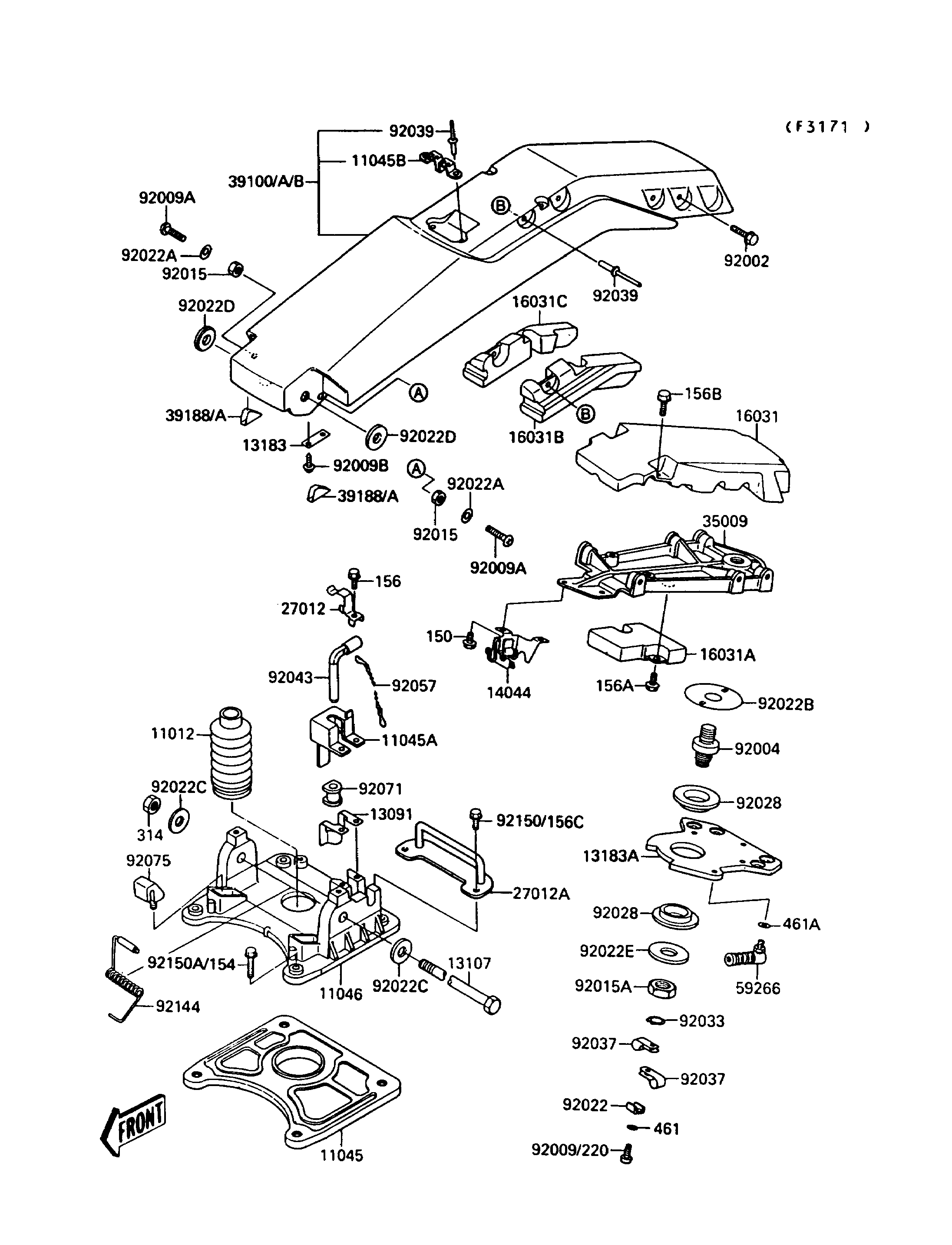

1990 650 SX - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11045
11045
11045A
11045A
11045B
11045B
11046
11046
13091
13091
13107
13107
13183
13183
13183A
13183A
14044
14044
16031
16031
16031A
16031A
16031B
16031B
16031C
16031C
27012
27012
27012A
27012A
35009
35009
39100B
39100B
39188
39188
39188
39188
39188A
39188A
39188A
39188A
59266
59266
92002
92002
92004
92004
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92022C
92022C
92022D
92022D
92022D
92022D
92022E
92022E
92028
92028
92028
92028
92033
92033
92037
92037
92037
92037
92039
92039
92039
92039
150
150
156
156
156A
156A
156B
156B
314
314
461A
461A
92043
92043
92057
92057
92071
92071
92075
92075
92144
92144
92150
92150
92150
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP. 11012 59176-514 1
BRACKET,BACK-UP PLATE 11045 11045-3722 1
BRACKET,POLE STOPPER 11045A 11045-3728 1
BRACKET,HANDLE POLE PAD 11045B 11045-3733 1
BRACKET,PIVOT SHAFT 11046 11046-3715 1
HOLDER 13091 13091-3717 1
SHAFT,PIVOT 13107 13107-3709 1
PLATE 13183 13183-3720 1
PLATE,HANDLEBAR 13183A 13183-3755 1
HOLDER-CABLE 14044 14044-3001 1
FLOAT 16031 16031-3715 1
FLOAT,CNT 16031A 16031-3737 1
FLOAT,LH 16031B 16031-3738 1
FLOAT,RH 16031C 16031-3752 1
HOOK 27012 27012-3717 1
HOOK,ENGINE HOOD 27012A 27012-3733 1
BRACE 35009 35009-3702 1
POLE-COMP-HANDLE,M.Z.BLUE 39100B 39100-3707-EM 1
TAPE,(RED) 39188 39188-3701 AR
TAPE,(BLUE) 39188A 39188-3703 AR
JOINT-BALL 59266 59266-3701 1
BOLT,6X12 92002 92002-3763 6
STUD 92004 92004-3713 1
SCREW,5X16 92009 92009-3736 1
SCREW 92009A 92009-3738 2
SCREW 92009B 92011-562 2
NUT 92015 92015-3015 2
NUT,18MM 92015A 92015-3746 1
WASHER,CLAMP 92022 92022-3014 1
WASHER 92022A 92022-3042 2
WASHER 92022B 92022-3716 1
WASHER,15X34X2.0 92022C 92022-3738 2
WASHER,15X36X4.5 92022D 92022-3741 2
WASHER 92022E 92022-571 1
BUSHING 92028 92028-3726 2
RING-SNAP,15MM 92033 92033-3710 1
CLAMP,LEAD WIRE 92037 92037-3007 2
RIVET 92039 92039-3701 4
BOLT-WS,6X12 150 150R0612 2
BOLT-WP,5X10 156 156R0510 2
BOLT-WP,5X12 156A 156R0512 2
BOLT-WP,5X14 156B 156R0514 2
NUT-HEX-FINE,14MM 314 314R1400 1
WASHER-SPRING,6MM 461A 461S0600 1
PIN,POLE STOPPER 92043 92043-3714 1
CHAIN,COVER,L=100 92057 92057-3704 1
GROMMET 92071 92071-3752 1
DAMPER,POLE STOPPER 92075 92075-3742 2
SPRING,HANDLE POLE 92144 92144-3716 1
BOLT,6X12 92150 92150-3709 2
BOLT,8X30 92150A 92150-3721 4
