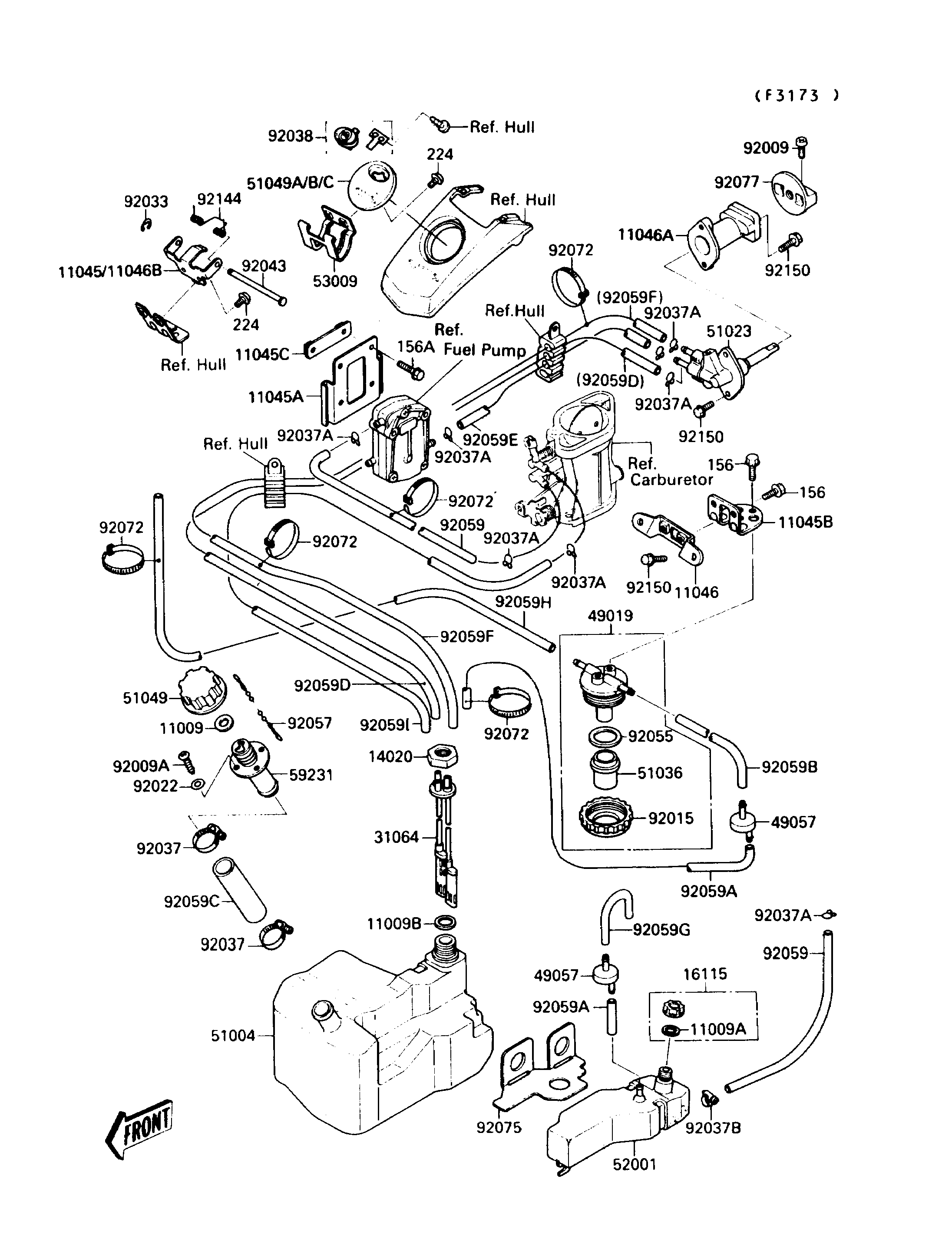

1990 650 SX - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11009B
11009B
11045A
11045A
11045B
11045B
11045B
11045B
11045C
11045C
11046
11046
11046A
11046A
14020
14020
16115
16115
31064
31064
49019
49019
49057
49057
49057
49057
51004
51004
51023
51023
51036
51036
51049
51049
51049A
51049A
52001
52001
53009
53009
59231
59231
92009
92009
92009A
92009A
92015
92015
92022
92022
92033
92033
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92038
92038
92043
92043
92055
92055
92057
92057
92059
92059
92059
92059
92059A
92059A
92059A
92059A
92059B
92059B
156
156
156
156
156A
156A
224
224
224
224
92059C
92059C
92059D
92059D
92059D
92059D
92059E
92059E
92059F
92059F
92059F
92059F
92059G
92059G
92059H
92059H
92059I
92059I
92072
92072
92072
92072
92072
92072
92072
92072
92072
92072
92075
92075
92077
92077
92144
92144
92150
92150
92150
92150
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET,OIL FILLER CAP 11009A 11009-3736 1
GASKET 11009B 92065-504 1
BRACKET,FUEL PUMP 11045A 11045-3734 1
BRACKET,STRAINER 11045B 11045-3735 1
BRACKET 11045C 11045-3765 1
BRACKET,STRAINER 11046 11046-3706 1
BRACKET,FUEL TAP 11046A 11046-3828 1
RETAINER 14020 23072-501 1
CAP-OIL FILLER 16115 16115-3704 1
PIPE-COMP,FUEL 31064 31064-3708 1
FILTER-FUEL 49019 49019-3706 1
VALVE-RELIEF 49057 49057-3001 2
TANK-FUEL 51004 51004-3705 1
TAP-ASSY,FUEL 51023 51023-3706 1
CUP,FUEL FILTER 51036 51036-3702 1
CAP-TANK 51049 51049-3001 1
CAP-TANK,M.Z.BLUE 51049A 51049-3711-EM 1
TANK-OIL 52001 52001-3705 1
HINGE 53009 53009-3706 1
FILLER,FUEL TANK 59231 59231-3001 1
SCREW,4X8 92009 92009-3729 1
SCREW 92009A 92011-562 4
NUT,RING 92015 92015-3013 1
WASHER 92022 92022-563 4
RING-SNAP,2MM 92033 92033-3711 1
CLAMP 92037 92037-3009 2
CLAMP,11MM 92037A 92037-3723 8
CLAMP 92037B 92037-3726 1
KEY 92038 92038-3701 1
PIN 92043 92043-3713 1
RING-O,FILTER CUP 92055 92055-3006 1
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE,FUEL,6.5X11.5X310 92059 92059-1252 2
TUBE,5.8X12.2X55 92059A 92059-3026 2
TUBE,5.8X10.8X200 92059B 92059-3721 1
BOLT-WP,6X12 156 156R0612 4
BOLT-WP,6X16 156A 156R0616 2
SCREW-PAN-WP-CROS,5X10 224 224R0510 4
TUBE,45X53X125 92059C 92059-3781 1
TUBE,ON,5.8X10.8X1050 92059D 92059-3789 1
TUBE,5.8X10.8X380 92059E 92059-3790 1
TUBE,RES,5.8X10.8X1050 92059F 92059-3795 1
TUBE 92059G 92059-3802 1
TUBE,5.8X10.8X1100 92059H 92059-3810 1
TUBE,RETURN,7X12X800 92059I 92059-3814 1
BAND,L=123 92072 92072-030 5
DAMPER 92075 92075-3740 1
KNOB 92077 92077-3709 1
SPRING 92144 92144-3710 1
BOLT,5X14 92150 92150-3702 6
BRACKET,HINGE 11046B 11046-3837 1
