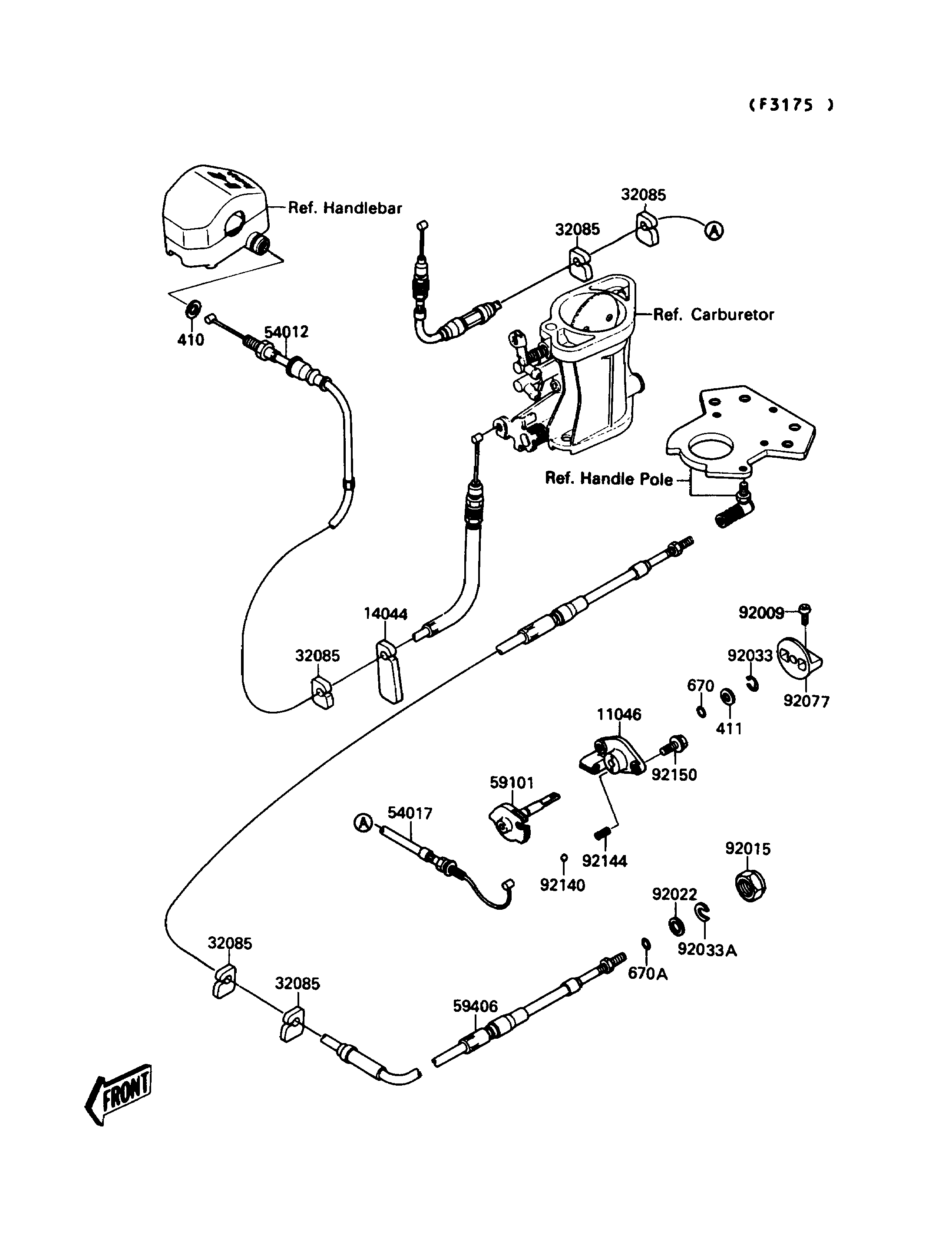

1990 650 SX - Cables

DOWNLOAD PDF
SELECT A NEW PART
11046
14044
32085
32085
32085
32085
32085
410
411
54012
54017
59101
59406
670
670A
92009
92015
92022
92033
92033A
92077
92140
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STARTER CABLE 11046 11046-3712 1
HOLDER-CABLE 14044 14044-3706 1
DETENT 32085 59346-504 5
W-PLAIN-S,10MM 410 410S1000 1
WASHER-PLAIN,8MM 411 411S0800 1
CABLE-THROTTLE 54012 54012-3711 1
CABLE-STARTER 54017 54017-3706 1
REEL 59101 59101-3703 1
CABLE-STRG 59406 59406-3708 1
O RING,8MM 670 670B1508 1
O RING,11MM 670A 670B2011 1
SCREW,4X8 92009 92009-3729 1
NUT,20MM 92015 92015-526 1
WASHER 92022 92022-535 1
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92033A 92036-501 1
KNOB 92077 92077-3709 1
BALL,3MM 92140 92140-3702 2
SPRING 92144 92144-3712 2
BOLT,5X14 92150 92150-3702 2
