56007
56008
92104
92107
92107A
92110
92110A
92110B
92110C
92112

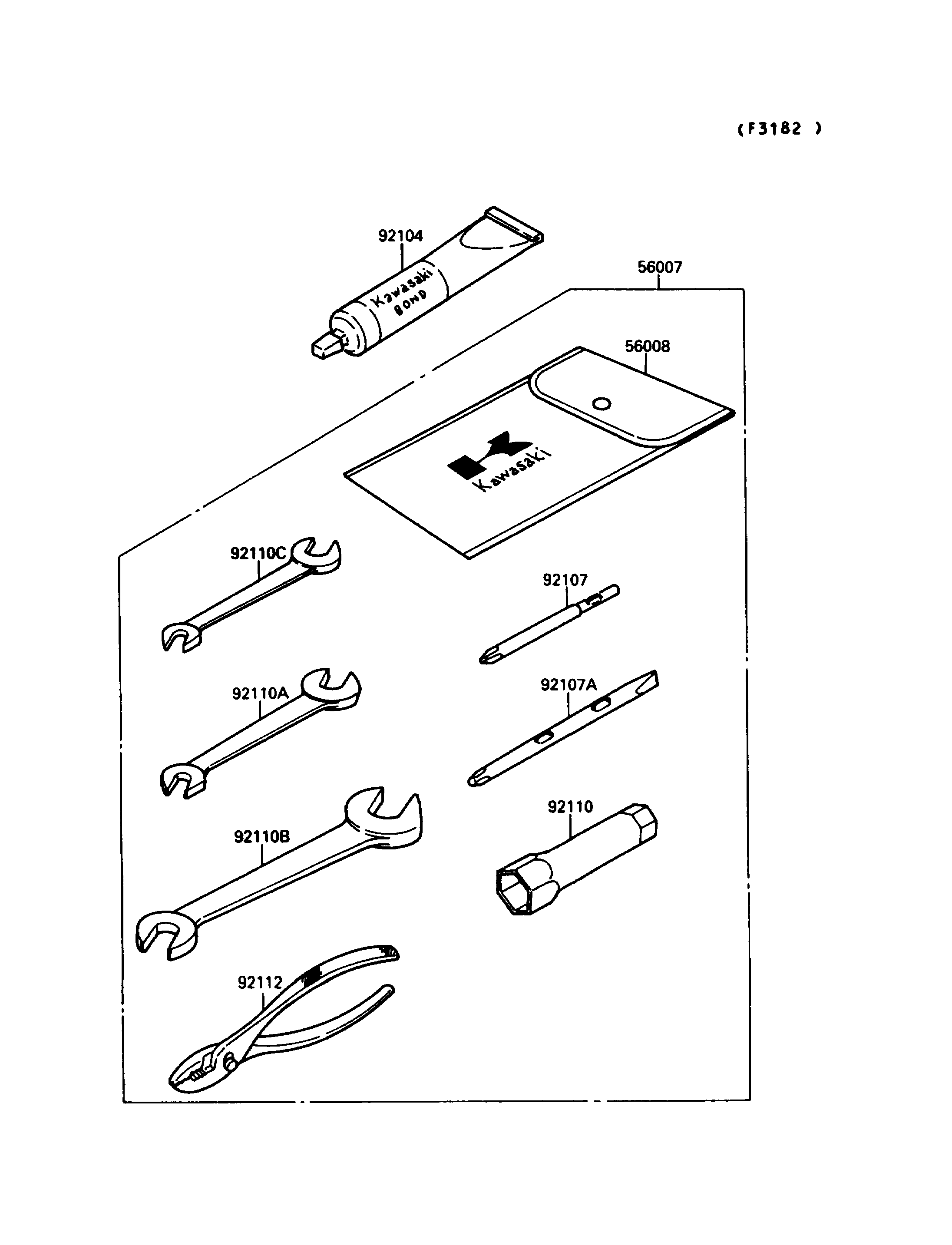

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOLKIT 56007 56007-3707 1
BAG,TOOL 56008 56008-1007 1
GASKET-LIQUID,TUBE,100G,SILVER 92104 92104-002 AR (OPTION)
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107A 92107-1051 1
TOOL-WRENCH,BOX,21MM 92110 92110-1113 1
TOOL-WRENCH,OPEN END,10X12 92110A 92110-1152 1
TOOL-WRENCH,OPEN END,14X17 92110B 92110-1153 1
TOOL-WRENCH,OPEN END,8X10 92110C 92126-001 1
TOOL-PLIERS 92112 92112-003 1
