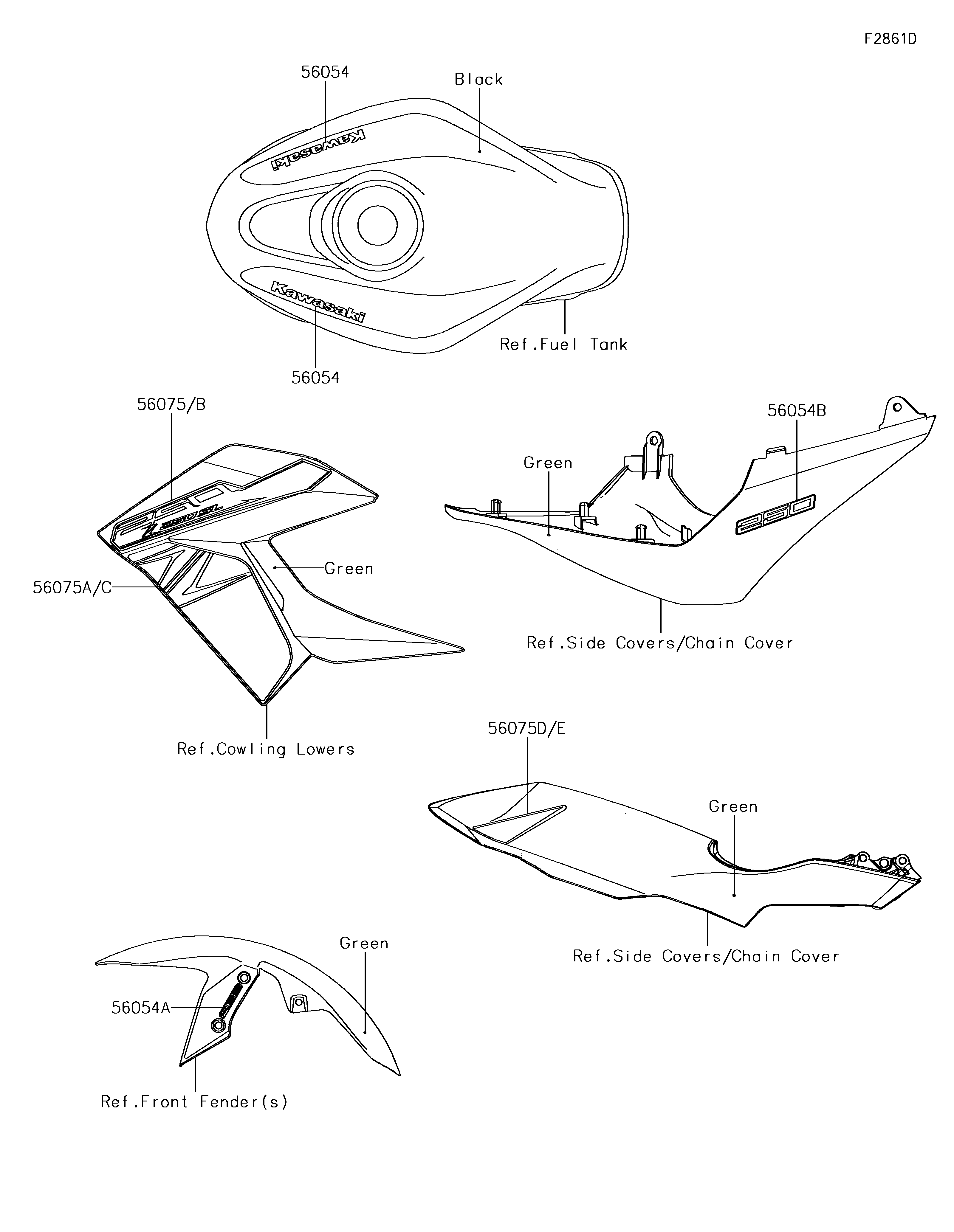

56054
56054
56054A
56054B
56075
56075A
56075B
56075C
56075D
56075E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,KAWASAKI 56054 56054-1204 2
MARK,FR FENDER,ABS 56054A 56054-1412 2
MARK,TAIL COVER,250 56054B 56054-2031 2
PATTERN,SHROUD,LH,UPP 56075 56075-1716 1
PATTERN,SHROUD,LH,LWR 56075A 56075-1717 1
PATTERN,SHROUD,RH,UPP 56075B 56075-1718 1
PATTERN,SHROUD,RH,LWR 56075C 56075-1719 1
PATTERN,SIDE COVER,LH 56075D 56075-1720 1
PATTERN,SIDE COVER,RH 56075E 56075-1721 1
