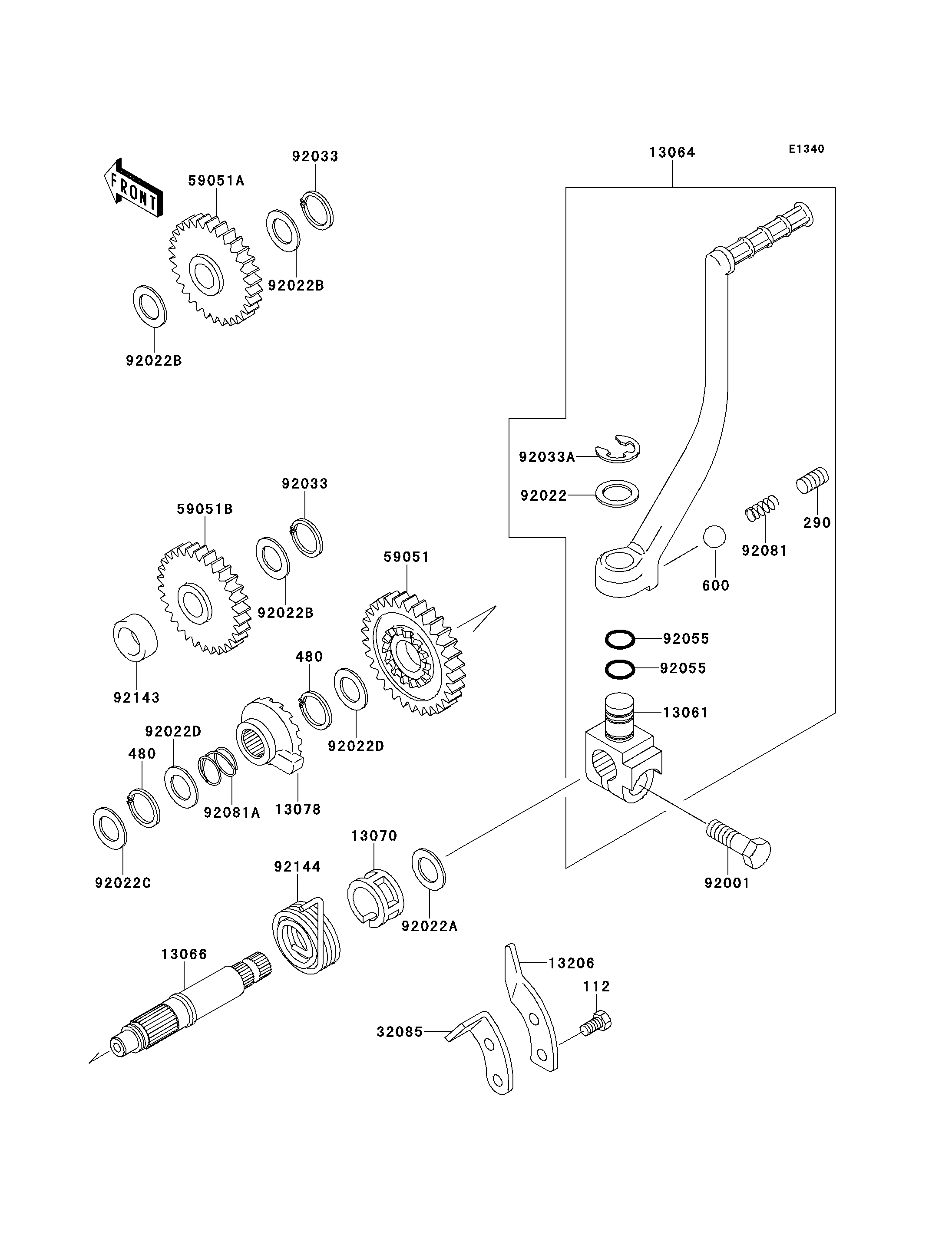

1997 Mojave 250 - Kickstarter Mechanism(-SF250A026491)
112
290
480
480
600
13061
13064
13066
13070
13078
13206
32085
59051
59051A
59051B
92001
92022
92022A
92022B
92022B
92022B
92022C
92022D
92022D
92033
92033
92033A
92055
92055
92081
92081A
92143
92144
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET | 112 | 112G0618 | 2 | ||
SCREW-SET-SOCKET,8X8 | 290 | 290Q0808 | 1 | ||
CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 2 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
BOSS,KICK PEDAL | 13061 | 13061-1189 | 1 | ||
LEVER-ASSY-KICK | 13064 | 13064-1127 | 1 | ||
SHAFT-KICK | 13066 | 13066-1062 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-011 | 1 | ||
RATCHET | 13078 | 13078-1053 | 1 | ||
GUIDE-KICK | 13206 | 13206-1056 | 1 | ||
STOPPER | 32085 | 32085-1237 | 1 | ||
GEAR-SPUR,KICKSTARTER,30T | 59051 | 59051-1328 | 1 | ||
GEAR-SPUR,REVERSE SHAFT,21T | 59051A | 59051-1329 | 1 | ||
GEAR-SPUR,KICKSTARTER IDLE,25 | 59051B | 59051-1330 | 1 | ||
BOLT,8X28 | 92001 | 92001-1042 | 1 | ||
WASHER,15.2X20X1 | 92022 | 92022-1019 | 1 | ||
WASHER,18.5X23X1.2 | 92022A | 92022-118 | 1 | ||
WASHER,17.3X22X0.5 | 92022B | 92022-1799 | 3 | ||
WASHER,12.3X20X0.5 | 92022C | 92022-269 | 1 | ||
WASHER,16.8X22X0.5 | 92022D | 92022-315 | 2 | ||
RING-SNAP | 92033 | 92033-032 | 2 | ||
RING-SNAP,10MM | 92033A | 92033-1166 | 1 | ||
RING-O,10X1.5 | 92055 | 92055-061 | 2 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
COLLAR,17.1X24X9 | 92143 | 92143-1330 | 1 | ||
SPRING,KICKSTARTER | 92144 | 92144-1001 | 1 |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-SET-SOCKET,8X8 | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,16MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BALL-STEEL,1/4" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOSS,KICK PEDAL | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-KICK | |
REF # | 13064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-KICK | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-KICK | |
REF # | 13206 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,KICKSTARTER,30T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,REVERSE SHAFT,21T | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,KICKSTARTER IDLE,25 | |
REF # | 59051B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X28 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,15.2X20X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,18.5X23X1.2 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,17.3X22X0.5 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER,12.3X20X0.5 | |
REF # | 92022C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,16.8X22X0.5 | |
REF # | 92022D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,10MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,10X1.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RATCHET | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,17.1X24X9 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICKSTARTER | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
