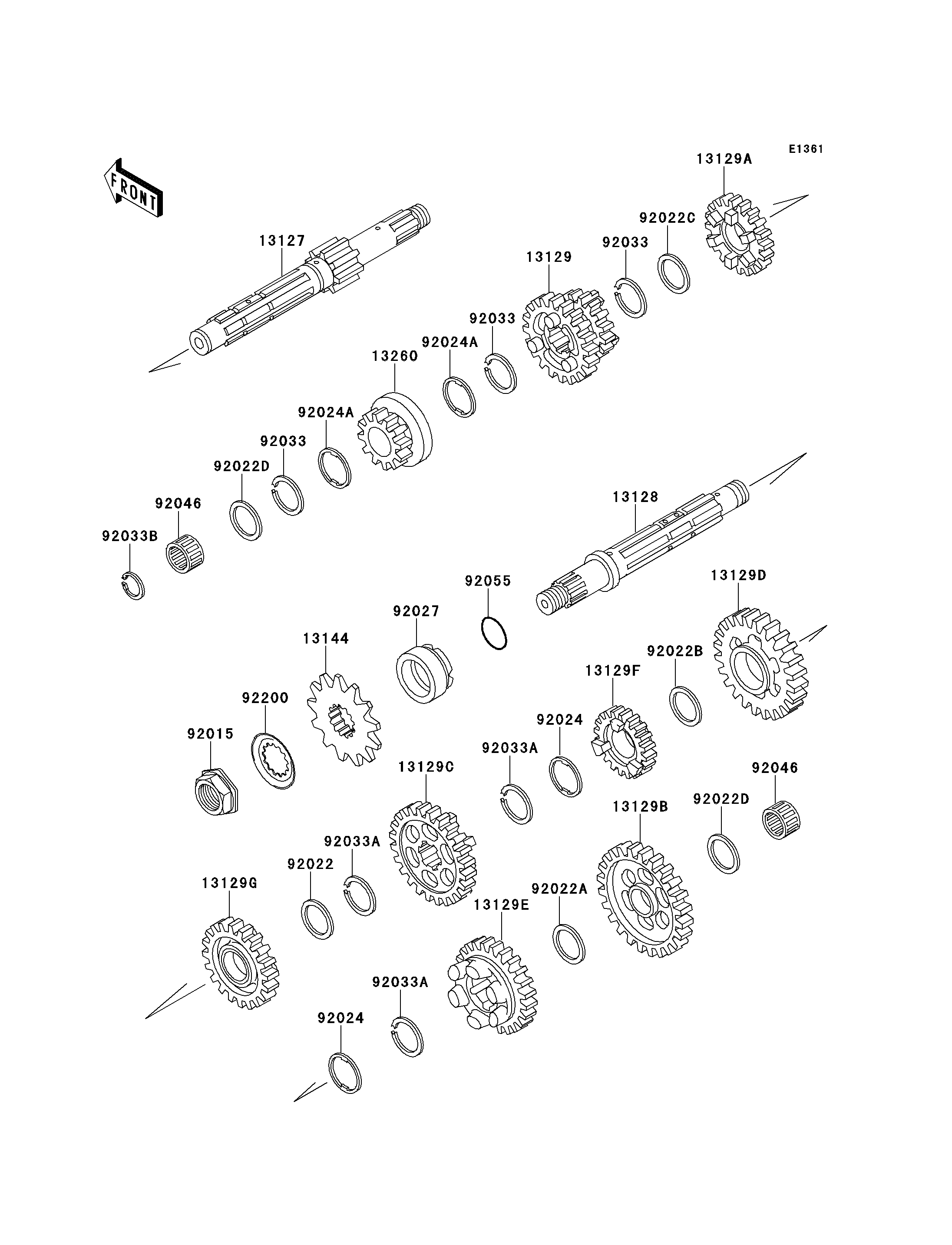

1997 Mojave 250 - Transmission(-SF250A026491)

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
13144
13260
92015
92022
92022A
92022B
92022C
92022D
92022D
92024
92024
92024A
92024A
92027
92033
92033
92033
92033A
92033A
92033A
92033B
92046
92046
92055
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT 13127 13127-1139 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1171 1
GEAR,INPUT 3RD&5TH,16T&20T 13129 13129-1798 1
GEAR,INPUT 4TH,20T 13129A 13129-1799 1
GEAR,OUTPUT LOW,30T 13129B 13129-1800 1
GEAR,OUTPUT 2ND,30T 13129C 13129-1801 1
GEAR,OUTPUT 3RD,24T 13129D 13129-1802 1
GEAR,OUTPUT 4TH,25T 13129E 13129-1803 1
GEAR,OUTPUT 5TH,21T 13129F 13129-1804 1
GEAR,OUTPUT REVERSE,24T 13129G 13129-1805 1
SPROCKET-OUTPUT,12T 13144 13144-1255 1
GEAR,INPUT 2ND,15T 13260 13260-1077 1
NUT,20MM 92015 92015-1963 1
WASHER,25.3X30X0.5 92022 92022-159 1
WASHER,17.3X25X0.5 92022A 92022-1614 1
WASHER,25.3X32X1 92022B 92022-1800 1
WASHER,22.3X27X0.5 92022C 92022-198 1
WASHER,17.3X28X1 92022D 92022-255 2
WASHER,TOOTHED,22.5X31X0.5 92024 92024-038 2
WASHER,TOOTHED,22.5X27X0.5 92024A 92024-039 2
COLLAR,25X32X15.3 92027 92027-1800 1
RING-SNAP,20X25.5X1.2 92033 92033-025 3
RING-SNAP,24MM 92033A 92033-026 3
RING-SNAP 92033B 92033-032 1
BEARING-NEEDLE,K17X25X13.8X1 92046 92046-1156 2
RING-O,21.5MM 92055 92055-1293 1
WASHER 92200 92200-1065 1
