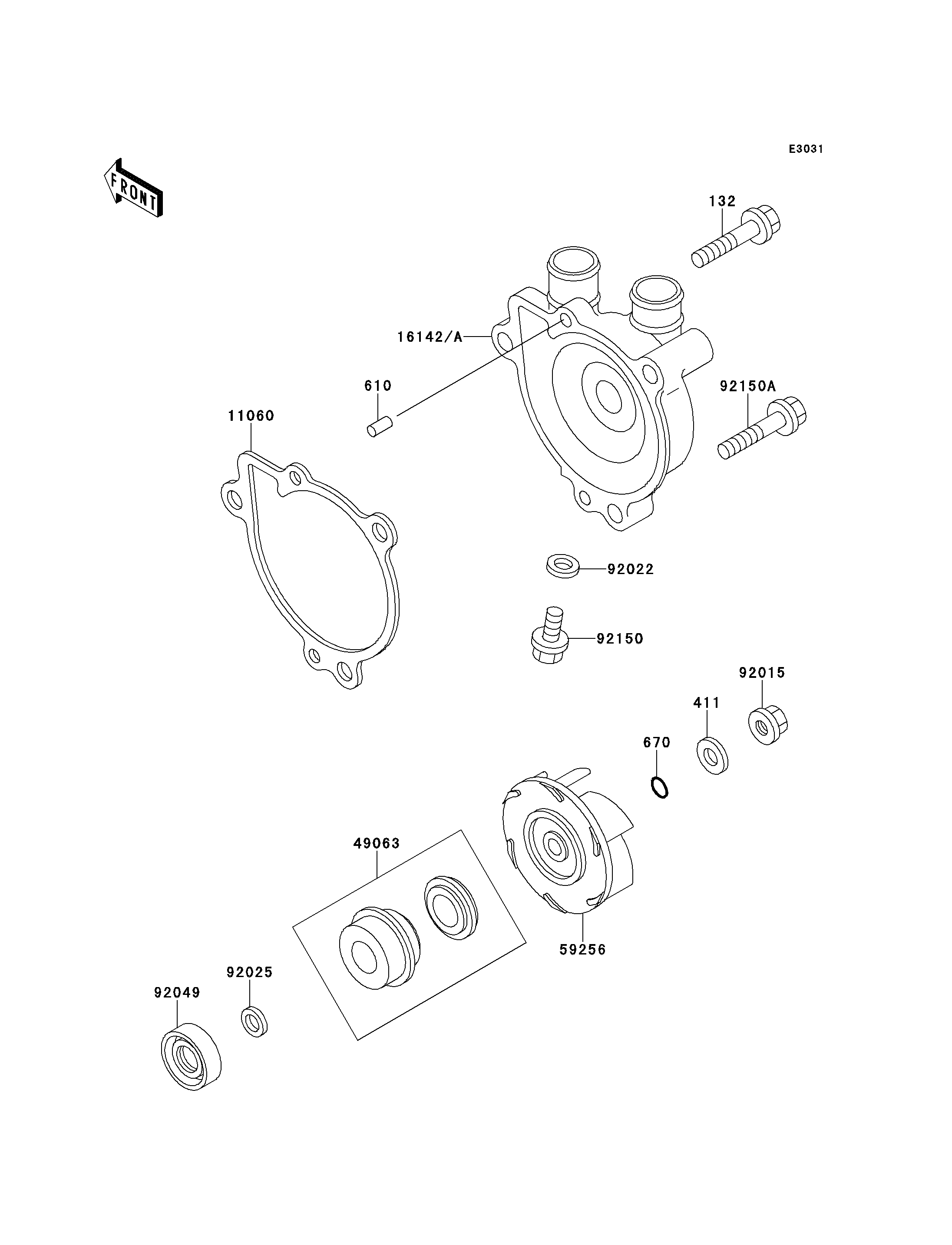

132
411
610
670
11060
16142A
49063
59256
92015
92022
92025
92049
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0645 1
WASHER-PLAIN,6MM,BLACK 411 411F0600 1
ROLLER,4X8 610 610A0408 2
O RING,6MM 670 670B1506 1
GASKET,PUMP COVER 11060 11060-1241 1
COVER-PUMP 16142A 16142-1140 1
SEAL-MECHANICAL 49063 49063-1054 1
IMPELLER 59256 59256-1055 1
NUT,FLANGED,6MM 92015 92015-1078 1
WASHER,6.2X11X1 92022 92022-304 1
SHIM,T=0.8 92025 92025-1507 1
SEAL-OIL,SC10227 92049 92049-1157 1
BOLT,6X8 92150 92150-1966 1
BOLT,6X35 92150A 92150-1967 1
