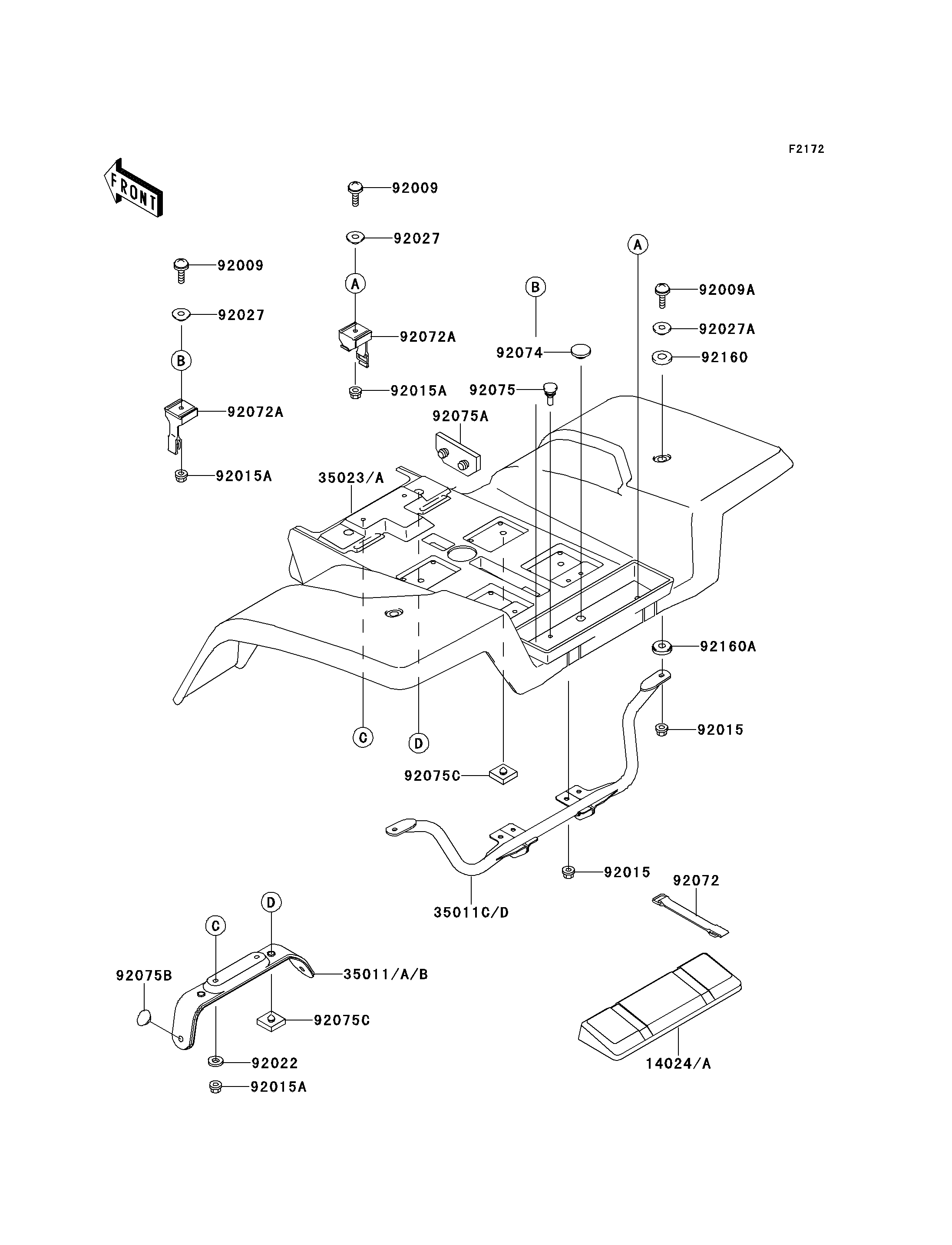

2000 Mojave 250 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14024A
35011
35011C
35023A
92009
92009
92009A
92015
92015
92015A
92015A
92015A
92022
92027
92027
92027A
92072
92072A
92072A
92074
92075
92075A
92075B
92075C
92075C
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,REAR FENDER,L.GREEN 14024A 14024-1283-6W 1
STAY,REAR FENDER,FR,L.GREEN 35011 35011-1644-CC 1
STAY,REAR FENDER,RR,L.GREEN 35011C 35011-1698-CC 1
FENDER-REAR,L.GREEN 35023A 35023-1167-6W 1
SCREW,6X14 92009 92009-1288 2
SCREW,6X25 92009A 92009-1465 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 6
NUT,LOCK,FLANGED,6MM 92015A 92015-1339 4
WASHER,6.5X20X1.6 92022 92022-1804 2
COLLAR,L=5.1 92027 92027-1260 2
COLLAR 92027A 92027-1767 2
BAND,L=150 92072 92072-1203 2
BAND 92072A 92072-1215 2
PLUG,11X3.2 92074 92074-038 1
DAMPER 92075 92075-1808 2
DAMPER 92075A 92075-1860 1
DAMPER 92075B 92075-1861 2
DAMPER 92075C 92075-1882 6
DAMPER 92160 92160-1011 2
DAMPER 92160A 92160-1017 2
