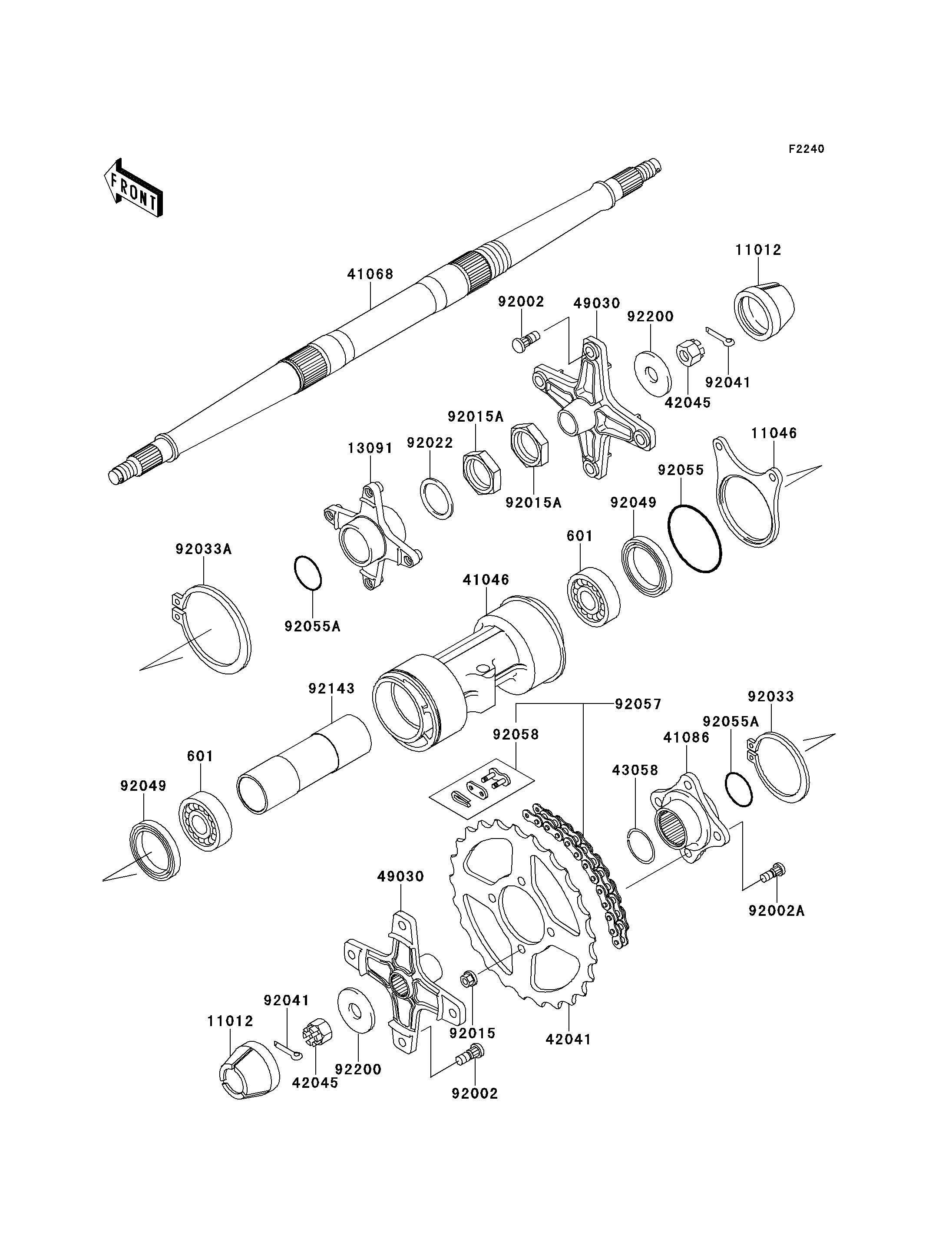

1997 Mojave 250 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
601
601
11012
11012
11046
13091
41046
41068
41086
42041
42045
42045
43058
49030
49030
92002
92002
92002A
92015
92015A
92015A
92022
92033
92033A
92041
92041
92049
92049
92055
92055A
92055A
92057
92058
92143
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6008UU 601 601A6008UU 2
CAP,WHEEL 11012 11012-1969 2
BRACKET,CALIPER 11046 11046-1062 1
HOLDER,DISC PLATE 13091 13091-1449 1
HOUSING-BEARING 41046 41046-1086 1
AXLE,RR 41068 41068-1235 1
FLANGE,REAR SPROCKET 41086 41086-1070 1
SPROCKET-HUB,43T 42041 42041-1433 1
NUT,CASTLE,18MM 42045 42045-018 2
RING,SNAP 43058 43058-1060 1
HUB,RR 49030 49030-1078 2
BOLT,10X30 92002 92002-1388 8
BOLT,10MM 92002A 92002-1459 4
NUT,FLANGED,10MM 92015 92015-1335 4
NUT,LOCK,37MM 92015A 92015-1545 2
WASHER,37.5X48X2.3 92022 92022-1746 1
RING-SNAP,95MM 92033 92033-1216 1
RING-SNAP,75MM 92033A 92033-1217 1
COTTER,4.0X35 92041 92041-1053 2
SEAL-OIL 92049 92049-1237 2
RING-O,76MM 92055 92055-1213 1
RING-O,38MM 92055A 92055-1317 2
CHAIN,DRIVE,EK520SR-O2X90L 92057 92057-1254 1
JOINT-CHAIN 92058 92058-1060 1
COLLAR,L=159 92143 92143-1036 1
WASHER,18.5X52X4.5 92200 92200-1474 2
