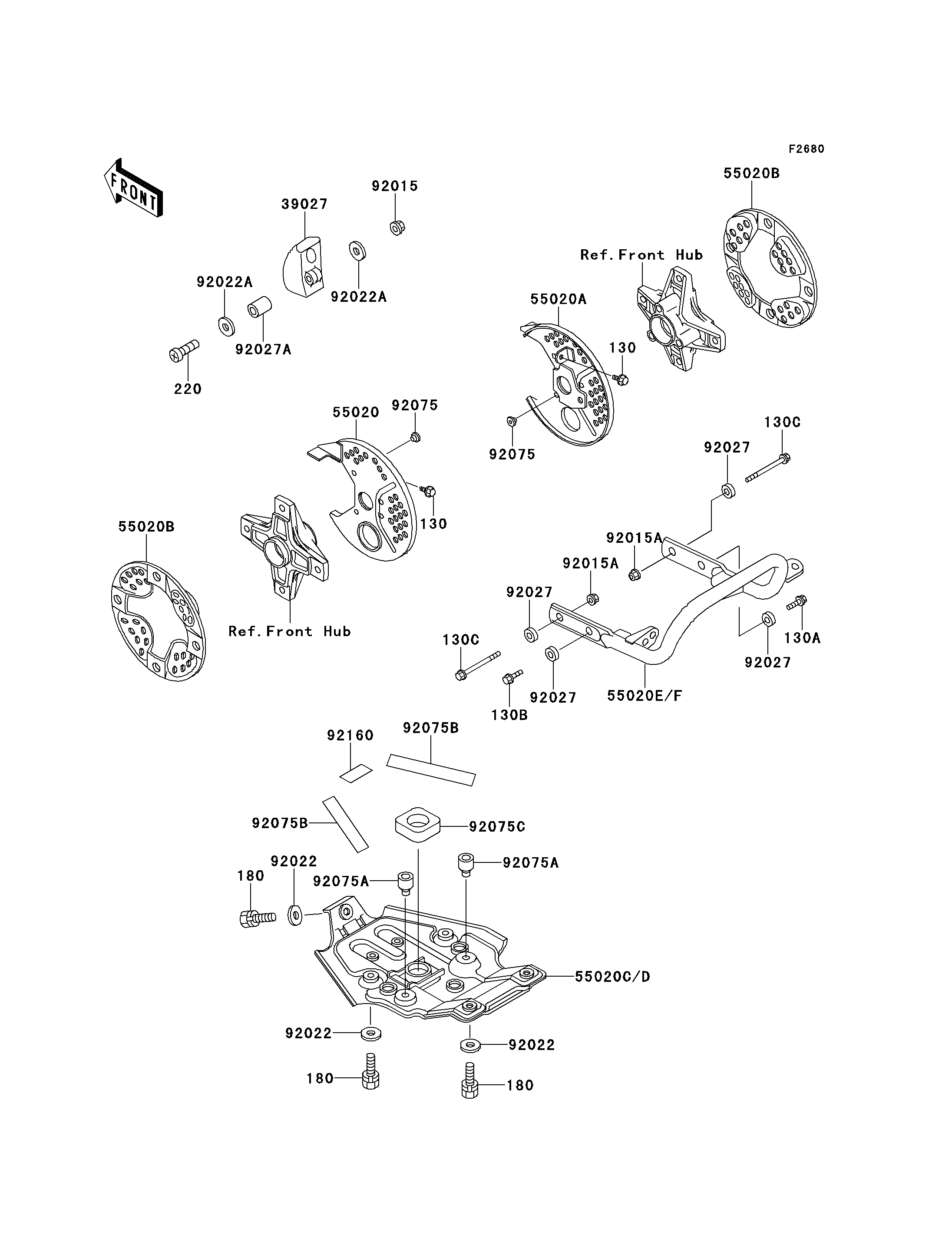

2000 Mojave 250 - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
130C
130C
180
180
180
220
39027
55020
55020A
55020B
55020B
55020C
55020F
92015
92015A
92015A
92022
92022
92022
92022A
92022A
92027
92027
92027
92027
92027A
92075
92075
92075A
92075A
92075B
92075B
92075C
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X25 130A 130G0825 1
BOLT-FLANGED,8X30 130B 130J0830 1
BOLT-FLANGED 130C 130Z0865 2
BOLT-UPSET-WS,6X16 180 180G0616 5
SCREW-PAN-CROS,6X30,BLACK 220 220C0630 2
BUMPER-FRONT 39027 39027-1051 2
GUARD,FRONT HUB,INNER,LH 55020 55020-1223 1
GUARD,FRONT HUB,INNER,RH 55020A 55020-1224 1
GUARD,FRONT HUB,OUTER 55020B 55020-1263 2
GUARD,ENGINE,L.GREEN 55020C 55020-1458-CC 1
GUARD,RR,P.C.GRAY 55020F 55020-1704-CQ 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,8MM 92015A 92015-1432 2
WASHER,6.5X20X1.6 92022 92022-125 5
WASHER,7X16X1.2 92022A 92022-1344 4
COLLAR,10X21.3X7 92027 92027-1817 4
COLLAR,6.8X10X20 92027A 92027-1856 2
DAMPER,INNER 92075 92075-1822 6
DAMPER 92075A 92075-1828 2
DAMPER 92075B 92075-1829 2
DAMPER 92075C 92075-1872 1
DAMPER 92160 92160-1102 1
