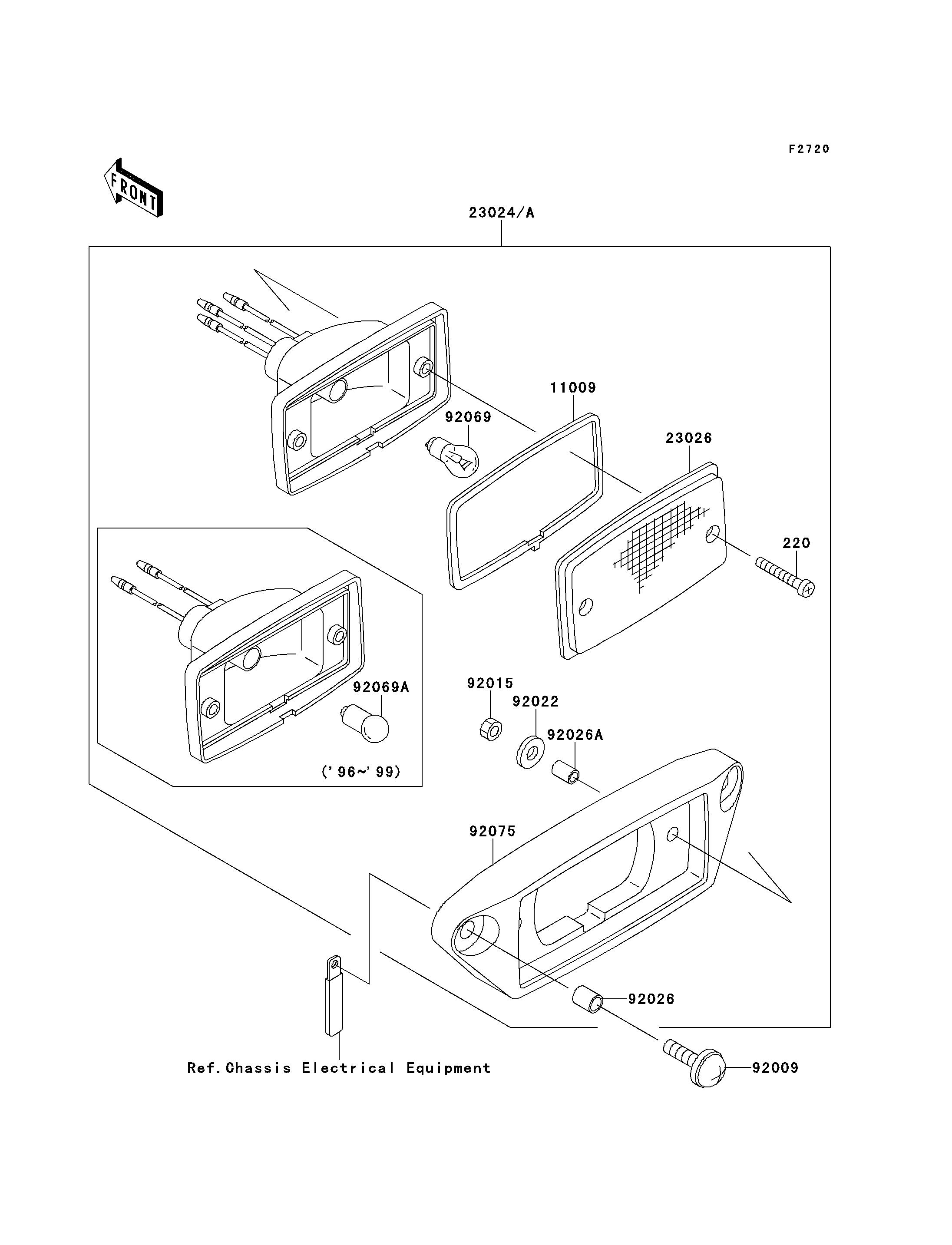

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220C0430 2
GASKET,TAIL LAMP 11009 11009-4004 1
LAMP-ASSY-TAIL 23024 23024-1122 1
LENS,TAIL LAMP 23026 23026-4003 1
SCREW,6X22,BLACK 92009 92009-1256 2
NUT,4MM 92015 92015-1550 2
WASHER,PLAIN,4MM 92022 92022-1762 2
SPACER,6.3X8.3X10 92026 92026-1260 2
SPACER,4.5X6.5X10 92026A 92026-1261 2
BULB,12V 27/8W 92069 92069-059 1
DAMPER,TAIL LAMP 92075 92075-1782 1
