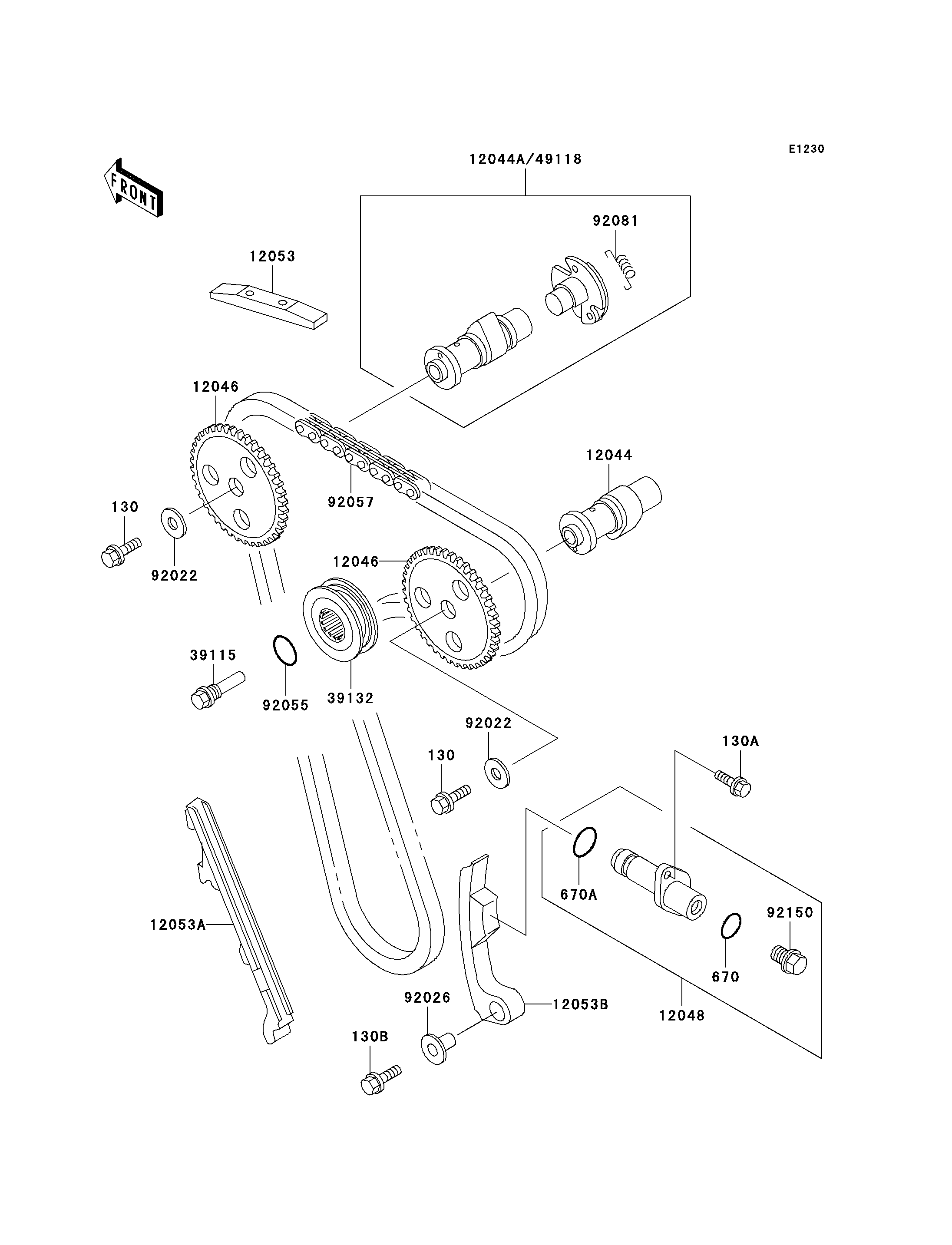

2003 Mojave 250 - Camshaft(s)/Tensioner
130
130
130A
130B
670
670A
12044
12046
12046
12048
12053
12053A
12053B
39115
39132
92022
92022
92026
92055
92057
92081
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,10X25 | 130 | 130G1025 | 2 | ||
BOLT-FLANGED,6X25 | 130A | 130J0625 | 2 | ||
BOLT-FLANGED,8X30 | 130B | 130P0830 | 1 | ||
O RING | 670 | 670D2010 | 1 | ||
O RING,21MM | 670A | 670D2021 | 1 | ||
CAMSHAFT-VALVE,INTAKE | 12044 | 12044-1348 | 1 | ||
SPROCKET,42T | 12046 | 12046-1063 | 2 | ||
TENSIONER-ASSY,CAM CHAIN | 12048 | 12048-1066 | 1 | ||
GUIDE-CHAIN,UPP | 12053 | 12053-1107 | 1 | ||
GUIDE-CHAIN,FR | 12053A | 12053-1125 | 1 | ||
GUIDE-CHAIN,RR | 12053B | 12053-1126 | 1 | ||
SHAFT-IDLER | 39115 | 39115-1051 | 1 | ||
SPROCKET-ASSY-IDLER | 39132 | 39132-1052 | 1 | ||
WASHER,10X22X3 | 92022 | 92022-1365 | 2 | ||
SPACER,L=28.3 | 92026 | 92026-1231 | 1 | ||
RING-O,ID=13.8 | 92055 | 92055-1141 | 1 | ||
CHAIN,CAM,79RH2010-158L | 92057 | 92057-1170 | 1 | ||
SPRING,DECOMPRESSOR | 92081 | 92081-1626 | 1 | ||
BOLT,TENSIONER | 92150 | 92150-1380 | 1 | ||
CAMSHAFT-VALVE,EXHAUST | 12044A | 12044-1427 | 1 | US | |
CAMSHAFT-COMP,EXHAUST | 49118 | 49118-1168 | 1 | CA |
BOLT-FLANGED,10X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X25 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X30 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,21MM | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,INTAKE | |
REF # | 12044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,42T | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY,CAM CHAIN | |
REF # | 12048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,UPP | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-IDLER | |
REF # | 39115 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-ASSY-IDLER | |
REF # | 39132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10X22X3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER,L=28.3 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ID=13.8 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,CAM,79RH2010-158L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,DECOMPRESSOR | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,TENSIONER | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-VALVE,EXHAUST | |
REF # | 12044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
CAMSHAFT-COMP,EXHAUST | |
REF # | 49118 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
