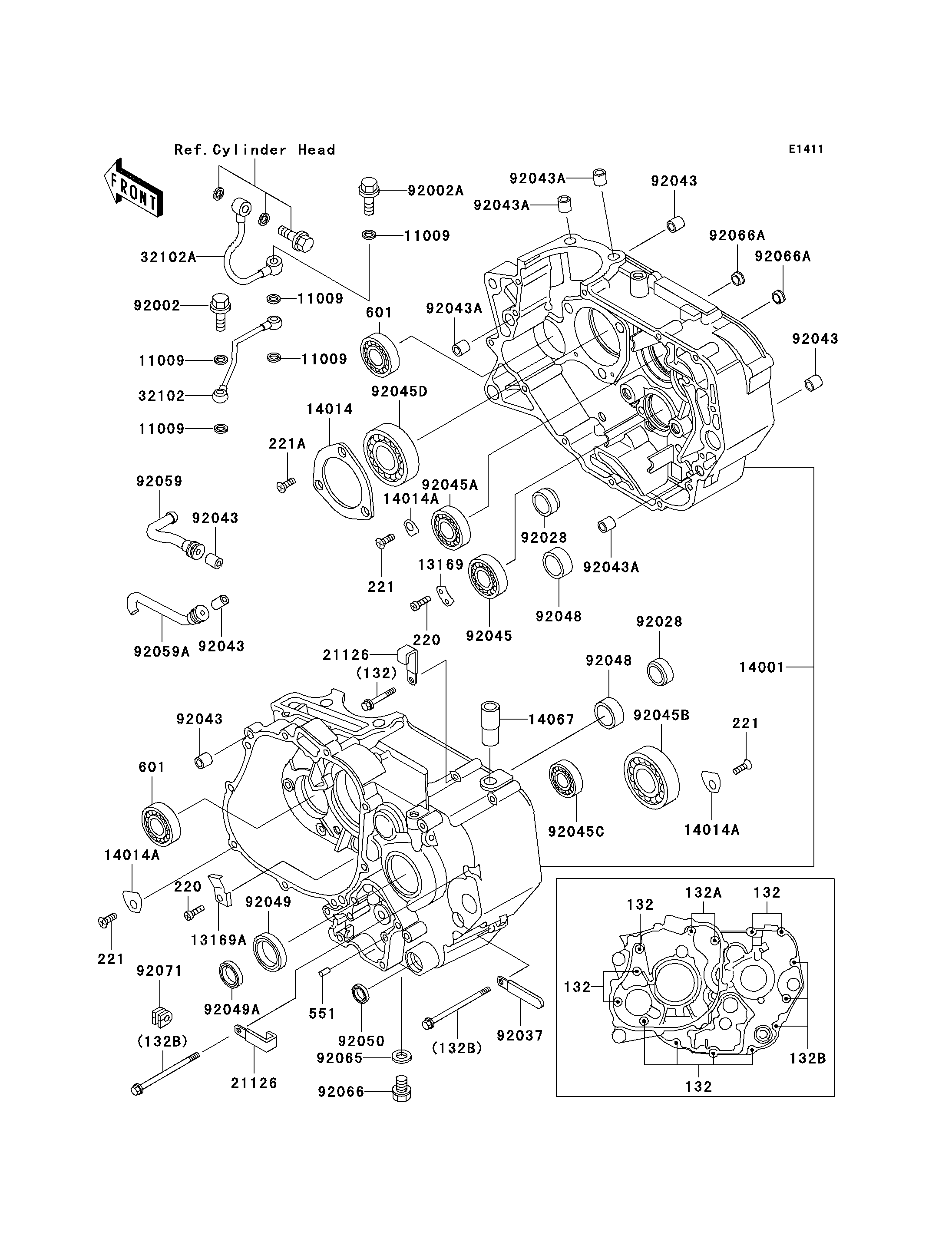

Parts Diagrams |
132
132
132
132
132A
132B
220
220
221
221
221
221A
551
601
601
11009
11009
11009
11009
11009
13169
13169A
14001
14014
14014A
14014A
14014A
14067
21126
21126
32102
32102A
92002
92002A
92028
92028
92037
92043
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92045
92045A
92045B
92045C
92045D
92048
92048
92049
92049A
92050
92059
92059A
92065
92066
92066A
92066A
92071
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X40 | 132 | 132J0640 | 9 | ||
BOLT-FLANGED-SMALL | 132A | 132J0675 | 2 | ||
BOLT-FLANGED-SMALL | 132B | 132J0695 | 3 | ||
SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 3 | ||
SCREW-CSK-CROS,6X12 | 221 | 221B0612 | 3 | ||
SCREW-CSK-CROS,6X16 | 221A | 221B0616 | 3 | ||
PIN-DOWEL,6X12 | 551 | 551A0612 | 2 | ||
BEARING-BALL,#6204 | 601 | 601A6204 | 2 | ||
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 5 | ||
PLATE,GEAR CHANGE DRUM | 13169 | 13169-014 | 1 | ||
PLATE | 13169A | 13169-1691 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5354 | 1 | ||
PLATE-POSITION,CRANK BEARING | 14014 | 14014-1004 | 1 | ||
PLATE-POSITION | 14014A | 14014-1057 | 3 | ||
FITTING,BREATHER | 14067 | 14067-006 | 1 | ||
CLAMP,WIRING HARNESS | 21126 | 21126-008 | 2 | ||
PIPE | 32102 | 32102-1127 | 1 | ||
PIPE | 32102A | 32102-1187 | 1 | ||
BOLT,BANJO,10X25 | 92002 | 92002-1170 | 1 | ||
BOLT,BANJO,10X36.5 | 92002A | 92002-1751 | 1 | ||
BUSHING,23X30X13 | 92028 | 92028-132 | 2 | ||
CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 6 | ||
PIN,10.1X12X14 | 92043A | 92043-4009 | 4 | ||
BEARING-BALL,#6905 | 92045 | 92045-036 | 1 | ||
BEARING-BALL,TMB204 JR | 92045A | 92045-1041 | 1 | ||
BEARING-BALL,TM-SX0597LU | 92045B | 92045-1127 | 1 | ||
BEARING-BALL,6804 | 92045C | 92045-1171 | 1 | ||
BEARING-BALL | 92045D | 92045-1172 | 1 | ||
RACE,26X33X13 | 92048 | 92048-1057 | 2 | ||
SEAL-OIL,TC32457 | 92049 | 92049-1159 | 1 | ||
SEAL-OIL | 92049A | 92049-1541 | 1 | ||
SEAL-OIL | 92050 | 92050-082 | 1 | ||
TUBE | 92059 | 92059-1694 | 1 | ||
TUBE | 92059A | 92059-1695 | 1 | ||
GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
PLUG | 92066A | 92066-1282 | 2 | ||
GROMMET | 92071 | 92071-1139 | 1 |
BOLT-FLANGED-SMALL,6X40 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X14 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X12 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X16 | |
REF # | 221A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PIN-DOWEL,6X12 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6204 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,10X14.5X1.5 | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PLATE,GEAR CHANGE DRUM | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13169A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION,CRANK BEARING | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
FITTING,BREATHER | |
REF # | 14067 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 21126 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32102A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,10X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,10X36.5 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,23X30X13 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,L=45 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PIN,10.1X12X14 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6905 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,TMB204 JR | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,TM-SX0597LU | |
REF # | 92045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6804 | |
REF # | 92045C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 92045D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RACE,26X33X13 | |
REF # | 92048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC32457 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,12X22X2,DRAIN PLUG | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
