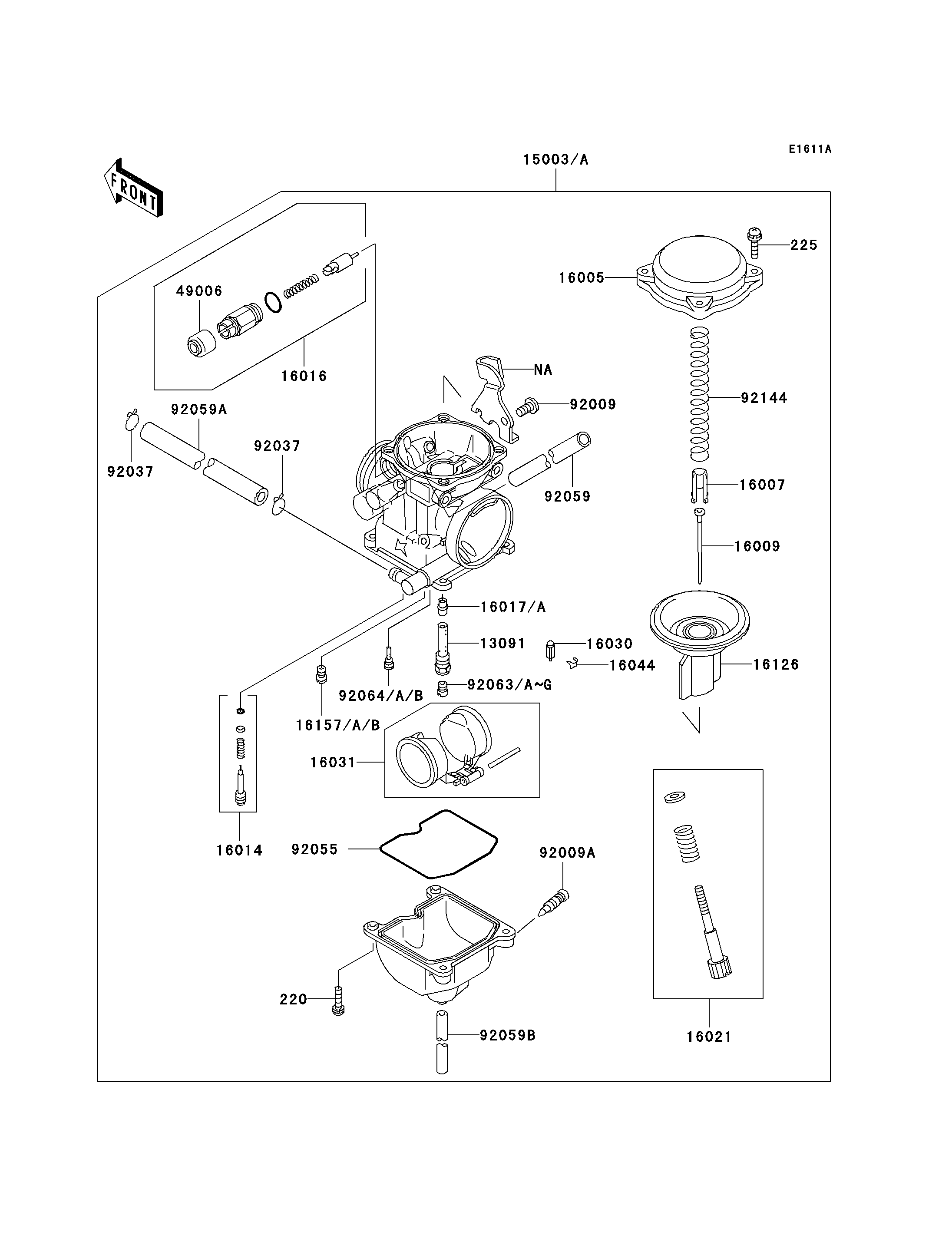

2003 Mojave 250 - Carburetor(KSF250-A17/A18)
13091
13091
16005
16005
16007
16007
16009
16009
16014
16014
16016
16016
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
16157
16157
16157A
16157A
16157B
16157B
92009
92009
92009A
92009A
92037
92037
92037
92037
92055
92055
92059
92059
92059A
92059A
92059B
92059B
92063A
92063A
92063B
92063B
220
220
225
225
92064
92064
92064A
92064A
92064B
92064B
92144
92144
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,NEEDLE JET | 13091 | 13091-1259 | 1 | ||
TOP-CHAMBER,MIXING,27/60 | 16005 | 16005-1057 | 1 | ||
SEAT-SPRING,VALVE | 16007 | 16007-1134 | 1 | ||
NEEDLE-JET,N54C | 16009 | 16009-1333 | 1 | ||
SCREW-PILOT AIR | 16014 | 16014-1080 | 1 | ||
PLUNGER,STARTER | 16016 | 16016-1101 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1201 | 1 | ||
VALVE-FLOAT | 16030 | 16030-1007 | 1 | ||
FLOAT | 16031 | 16031-1077 | 1 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
VALVE,VACUUM | 16126 | 16126-1180 | 1 | ||
JET-STARTER,#55 | 16157 | 16157-1056 | 1 | ||
JET-STARTER,#58 | 16157A | 16157-1057 | 1 | (OPTION) | |
JET-STARTER,#60 | 16157B | 16157-1058 | 1 | (OPTION) | |
SCREW,5X10 | 92009 | 92009-1365 | 1 | ||
SCREW,DRAIN,M6X0.75 | 92009A | 92009-1551 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1531 | 2 | ||
RING-O,FLOAT CHAMBER | 92055 | 92055-1222 | 1 | ||
TUBE,6.5X9.5X500 | 92059 | 92059-1465 | 1 | ||
TUBE,6.5X11.5X360 | 92059A | 92059-1751 | 1 | ||
TUBE,3.5X6.5X300 | 92059B | 92059-1752 | 1 | ||
JET-MAIN,#135 | 92063A | 92063-1014 | 1 | (OPTION) | |
JET-MAIN,#138 | 92063B | 92063-1015 | 1 | (OPTION) | |
SCREW-PAN-CROS | 220 | 220D0414 | 4 | ||
SCREW-PAN-WSP-CROS | 225 | 225C0418 | 4 | ||
JET-PILOT,#38 | 92064 | 92064-1050 | 1 | (OPTION) | |
JET-PILOT,#35 | 92064A | 92064-1101 | 1 | ||
JET-PILOT,#32 | 92064B | 92064-1117 | 1 | (OPTION) | |
SPRING,VACUUM VALVE | 92144 | 92144-1066 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-1747 | 1 | US | |
CARBURETOR-ASSY | 15003A | 15003-1748 | 1 | CA | |
JET-NEEDLE | 16017 | 16017-1319 | 1 | US | |
JET-NEEDLE,#6 | 16017A | 16017-1393 | 1 | CA | |
BOOT,STARTER PLUNGER | 49006 | 49006-1165 | 1 | US | |
JET-MAIN,#140 | 92063 | 92063-1013 | 1 | CA | |
JET-MAIN,#142 | 92063C | 92063-1016 | 1 | CA | (OPTION) |
JET-MAIN,#145 | 92063D | 92063-1017 | 1 | CA | (OPTION) |
JET-MAIN,#128 | 92063E | 92063-1074 | 1 | US | (OPTION) |
JET-MAIN,#130 | 92063F | 92063-1075 | 1 | US | (OPTION) |
JET-MAIN,#132 | 92063G | 92063-1076 | 1 | US |
