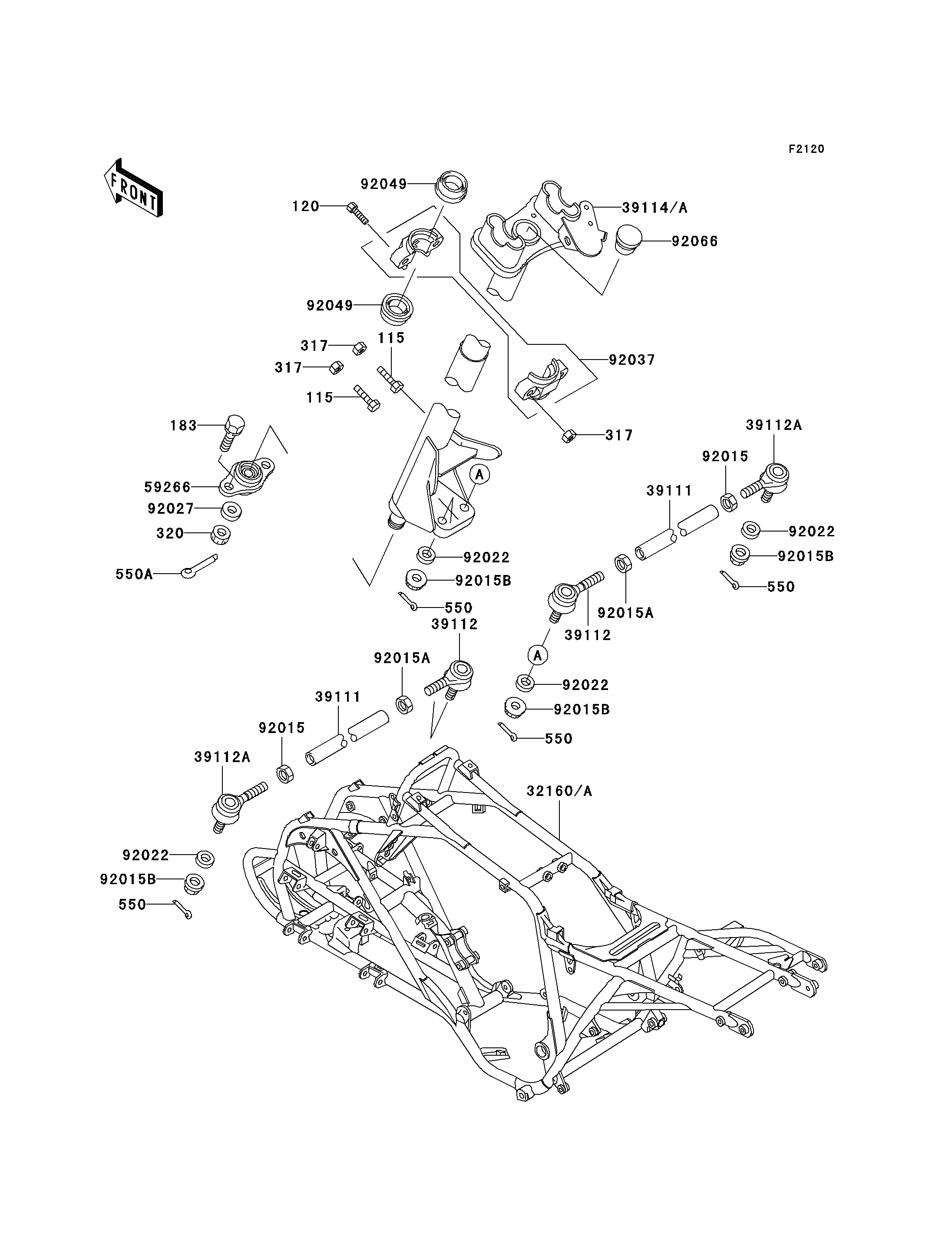

Parts Diagrams |
115
115
120
183
317
317
317
320
550
550
550
550
550A
32160A
39111
39111
39112
39112
39112A
39112A
39114A
59266
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022
92022
92027
92037
92049
92049
92066
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SMALL-UPSET,8X30 | 115 | 115G0830 | 2 | ||
BOLT-SOCKET,8X50 | 120 | 120P0850 | 2 | ||
BOLT-UPSET-WS-SMALL | 183 | 183G0822 | 2 | ||
NUT-HEX-SMALL,8MM | 317 | 317G0800 | 4 | ||
NUT-CASTLE | 320 | 320H1000 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 4 | ||
PIN-COTTER,2.5X18 | 550A | 550D2518 | 1 | ||
FRAME-COMP,G.GRAY | 32160A | 32160-1279-HN | 1 | ||
ROD-TIE | 39111 | 39111-1069 | 2 | ||
RODEND-TIE | 39112 | 39112-1063 | 2 | ||
RODEND-TIE | 39112A | 39112-1064 | 2 | ||
SHAFT-COMP-STRG,G.GRAY | 39114A | 39114-1080-HN | 1 | ||
JOINT-BALL | 59266 | 59266-1066 | 1 | ||
NUT,10MM,LH,THREAD | 92015 | 92015-1460 | 2 | ||
NUT,10MM | 92015A | 92015-1494 | 2 | ||
NUT,LOCK,FLANGED,10MM | 92015B | 92015-1717 | 4 | ||
WASHER,10.5X20X1 | 92022 | 92022-239 | 4 | ||
COLLAR,10X21.3X7 | 92027 | 92027-1817 | 1 | ||
CLAMP,STEERING SHAFT | 92037 | 92037-1839 | 1 | ||
SEAL-OIL,SR7 25 34 7.8 NS | 92049 | 92049-1278 | 2 | ||
PLUG | 92066 | 92066-1220 | 1 |
BOLT-SMALL-UPSET,8X30 | |
REF # | 115 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,8X50 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS-SMALL | |
REF # | 183 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 317 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT-CASTLE | |
REF # | 320 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.5X18 | |
REF # | 550A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRAME-COMP,G.GRAY | |
REF # | 32160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT-COMP-STRG,G.GRAY | |
REF # | 39114A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,10MM,LH,THREAD | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,10MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.5X20X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,10X21.3X7 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,STEERING SHAFT | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SR7 25 34 7.8 NS | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
