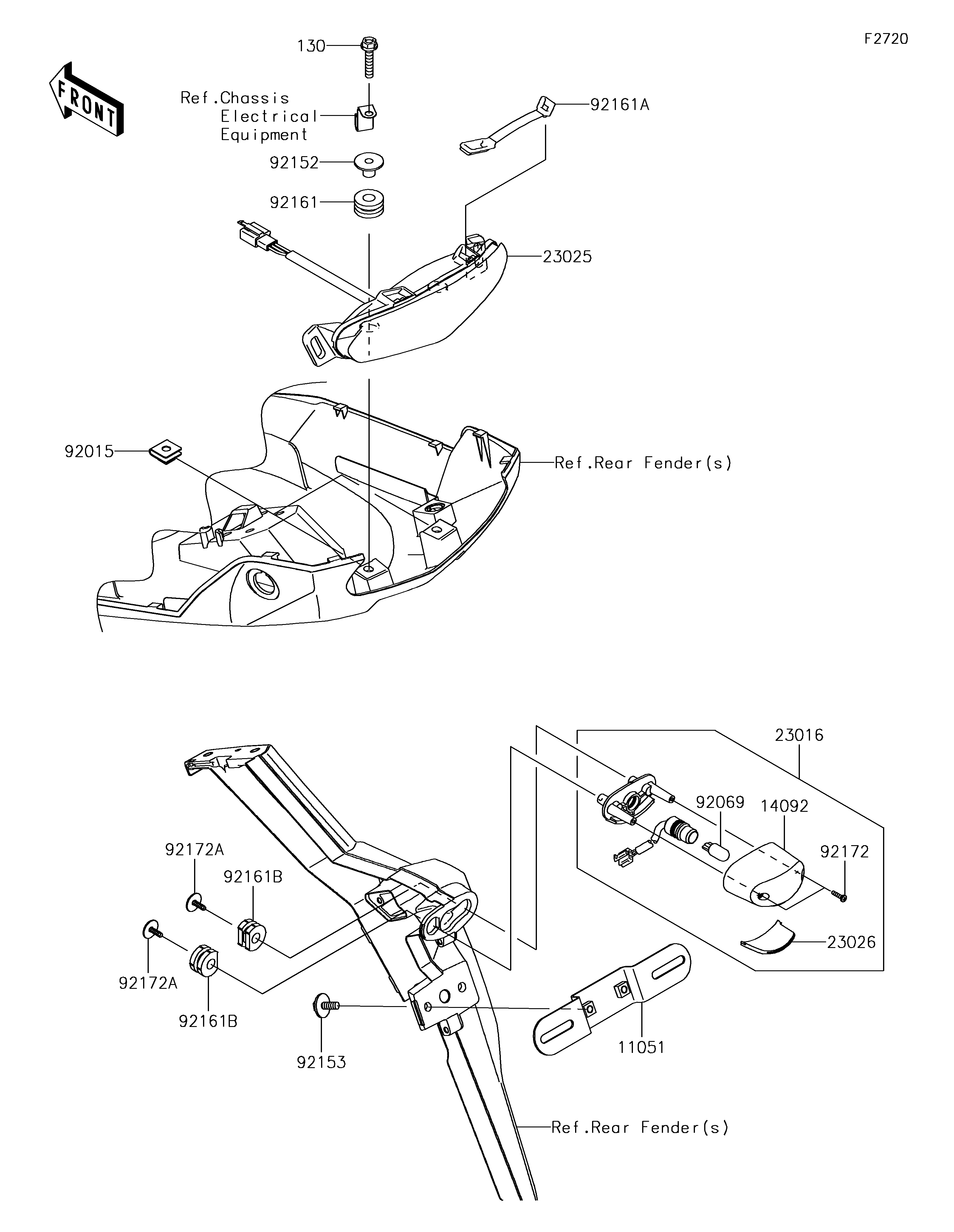

Parts Diagrams |
11051
130
14092
23016
23025
23026
92015
92069
92152
92153
92161
92161A
92161B
92161B
92172
92172A
92172A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LICENSE | 11051 | 11051-1503 | 1 | ||
BOLT-FLANGED,6X30 | 130 | 130BA0630 | 2 | ||
COVER,LICENSE LAMP | 14092 | 14092-0001 | 1 | ||
LAMP-ASSY,LICENCE | 23016 | 23016-0583 | 1 | ||
LAMP-TAIL,CCC | 23025 | 23025-0347 | 1 | ||
LENS,LICENCE LAMP | 23026 | 23026-0023 | 1 | ||
NUT,6MM | 92015 | 92015-1094 | 2 | ||
BULB,12V 5W | 92069 | 92069-1016 | 1 | ||
COLLAR,6.4X9.5X15.1 | 92152 | 92152-2331 | 2 | ||
BOLT,6X16 | 92153 | 92153-1423 | 2 | ||
DAMPER | 92161 | 92161-0163 | 2 | ||
DAMPER,TAIL LAMP UPP | 92161A | 92161-0625 | 1 | ||
DAMPER | 92161B | 92161-0776 | 2 | ||
SCREW,TAPPING,2.9X13 | 92172 | 92172-0343 | 2 | ||
SCREW,TAPTITE,5X16 | 92172A | 92172-0481 | 2 |
BRACKET,LICENSE | |
REF # | 11051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X30 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,LICENSE LAMP | |
REF # | 14092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY,LICENCE | |
REF # | 23016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-TAIL,CCC | |
REF # | 23025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,LICENCE LAMP | |
REF # | 23026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 5W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,6.4X9.5X15.1 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,TAIL LAMP UPP | |
REF # | 92161A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,2.9X13 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPTITE,5X16 | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
