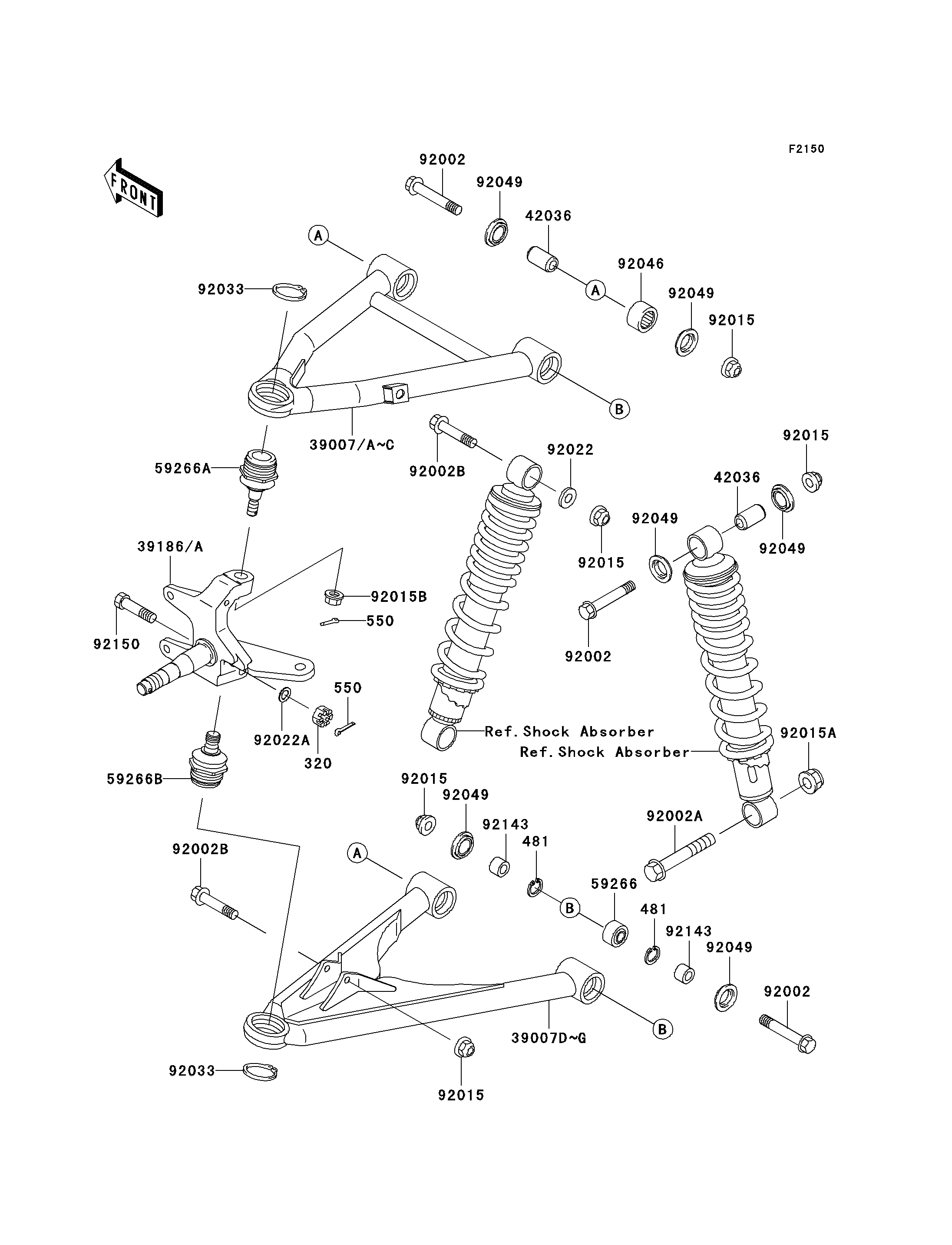

2003 Mojave 250 - Suspension

DOWNLOAD PDF
SELECT A NEW PART
320
481
481
550
550
39007A
39007C
39007E
39007G
39186
39186A
42036
42036
59266
59266A
59266B
92002
92002
92002
92002A
92002B
92002B
92015
92015
92015
92015
92015
92015A
92015B
92022
92022A
92033
92033
92046
92049
92049
92049
92049
92049
92049
92143
92143
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-CASTLE 320 320H1000 2
CIRCLIP 481 481J2400 8
PIN-COTTER,2.0X15 550 550D2015 4
ARM-SUSP,LH,UPP,G.GRAY 39007A 39007-1220-HN 1
ARM-SUSP,RH,UPP,G.GRAY 39007C 39007-1221-HN 1
ARM-SUSP,FR,LH,LWR,G.GRAY 39007E 39007-1222-HN 1
ARM-SUSP,FR,RH,LWR,G.GRAY 39007G 39007-1223-HN 1
KNUCKLE,LH 39186 39186-1062 1
KNUCKLE,RH 39186A 39186-1064 1
SLEEVE,10X17X40 42036 42036-1183 5
JOINT-BALL 59266 59266-1011 4
JOINT-BALL 59266A 59266-1075 2
JOINT-BALL 59266B 59266-1098 2
BOLT,FLANGED,10X61 92002 92002-1738 9
BOLT,FLANGED,12X78 92002A 92002-1739 1
BOLT,FLANGED,10X46 92002B 92002-1740 4
NUT,LOCK,10MM 92015 92015-1597 13
NUT,FLANGED,LOCK,12MM 92015A 92015-1617 1
NUT,LOCK,FLANGED,10MM 92015B 92015-1717 2
WASHER,10X22X3.2 92022 92022-176 2
WASHER,10.2X16X1 92022A 92022-1829 2
RING-SNAP,30MM 92033 92033-1218 4
BEARING-NEEDLE 92046 92046-1046 4
SEAL-OIL,MHA17245.7F 92049 92049-1223 18
COLLAR,10X17X12 92143 92143-1010 8
BOLT,10X44 92150 92150-1226 2
