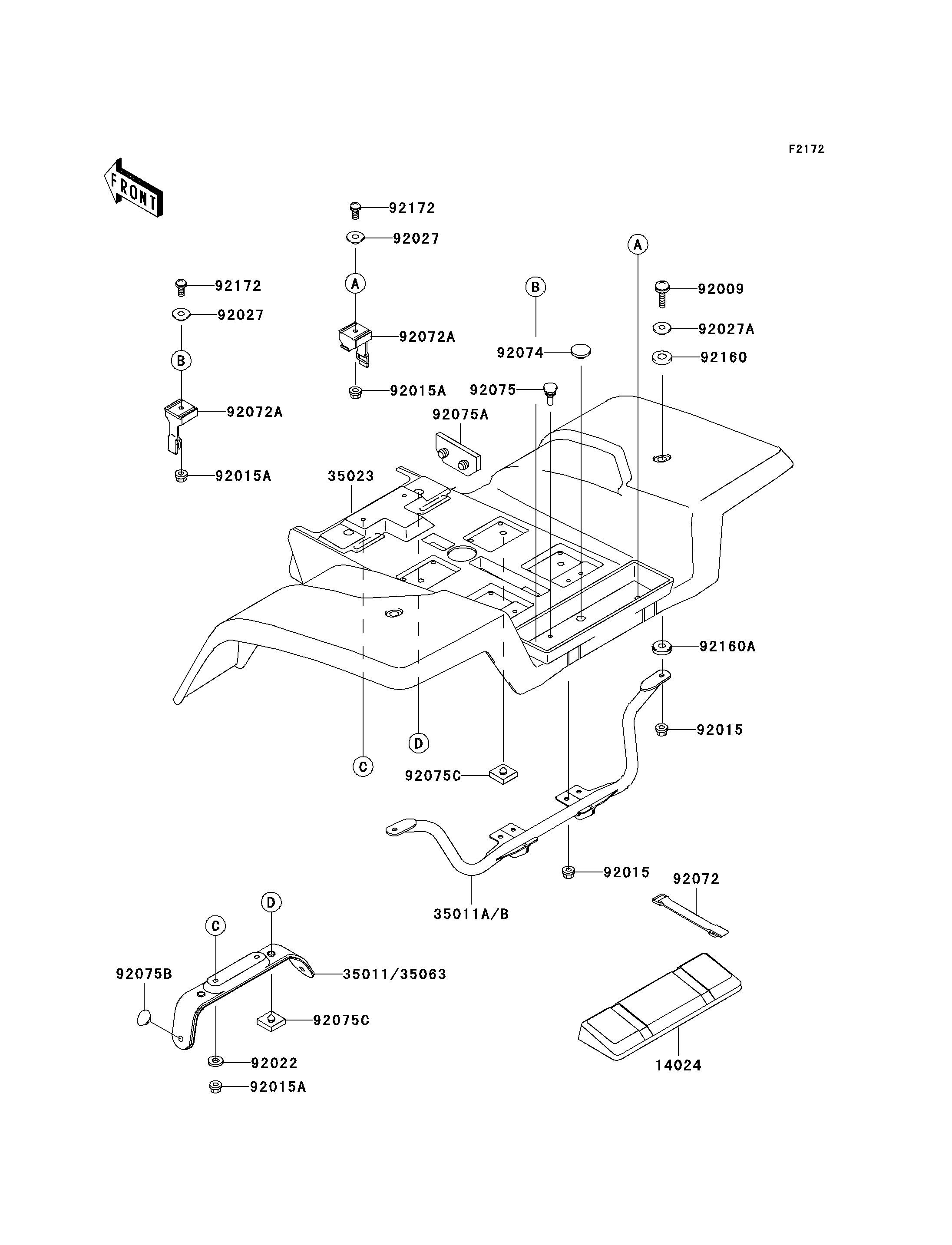

2003 Mojave 250 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14024
35011B
35023
35063
92009
92015
92015
92015A
92015A
92015A
92022
92027
92027
92027A
92072
92072A
92072A
92074
92075
92075A
92075B
92075C
92075C
92160
92160A
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,REAR FENDER,L.GREEN 14024 14024-1283-6W 1
STAY,REAR FENDER,RR,G.GRAY 35011B 35011-1698-HN 1
FENDER-REAR,L.GREEN 35023 35023-1167-6W 1
STAY,REAR FENDER,FR 35063 35063-1170 1
SCREW,6X25 92009 92009-1465 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 6
NUT,LOCK,FLANGED,6MM 92015A 92015-1339 4
WASHER,6.5X20X1.6 92022 92022-1804 2
COLLAR,L=5.1 92027 92027-1260 2
COLLAR 92027A 92027-1767 2
BAND,L=150 92072 92072-1203 2
BAND 92072A 92072-1215 2
PLUG,11X3.2 92074 92074-038 1
DAMPER 92075 92075-1808 2
DAMPER 92075A 92075-1860 1
DAMPER 92075B 92075-1861 2
DAMPER 92075C 92075-1882 6
DAMPER 92160 92160-1011 2
DAMPER 92160A 92160-1017 2
SCREW,6X14 92172 92172-0004 2
