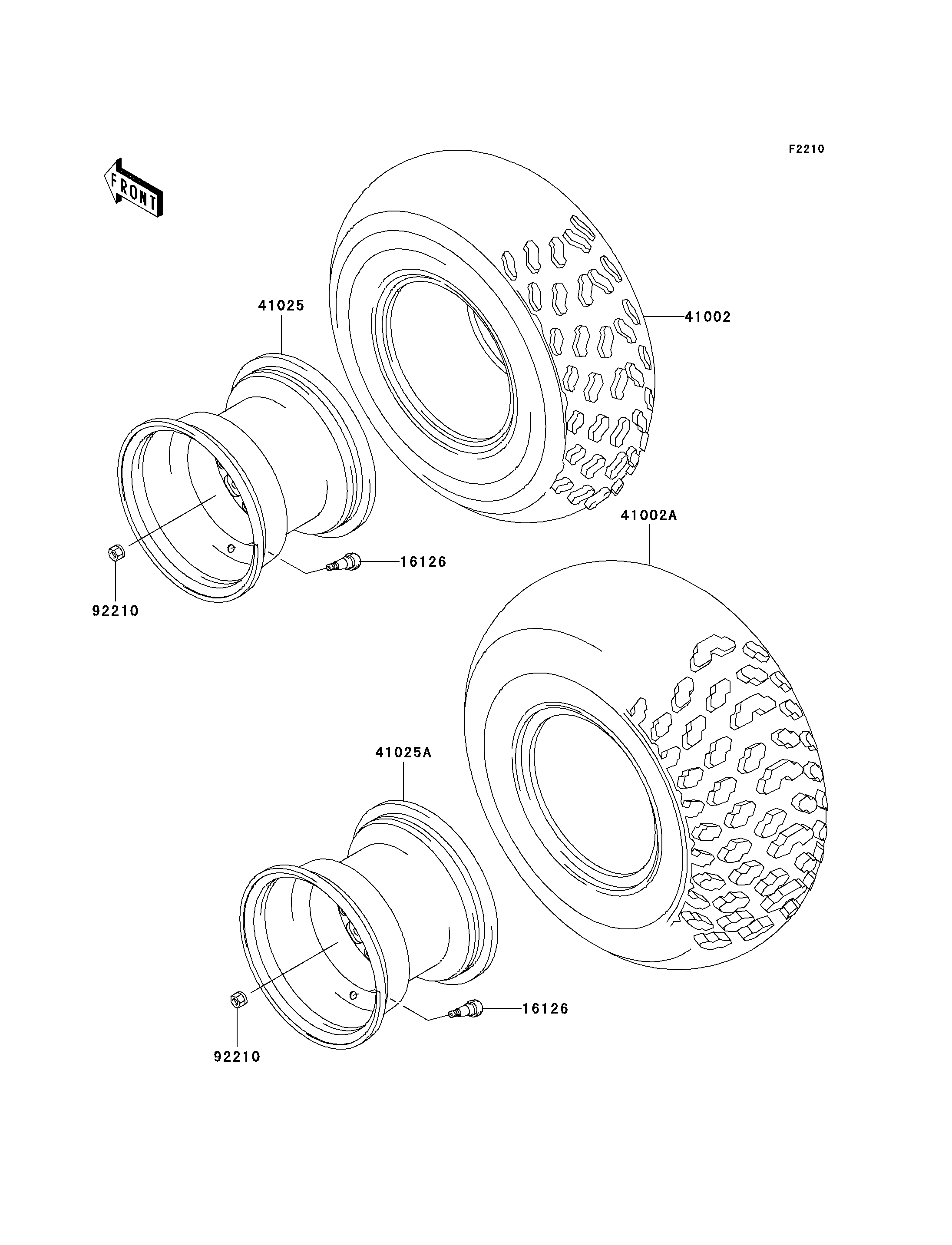

16126
16126
41002
41002A
41025
41025A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,21X7.00-10,KT846(D) 41002 41002-1588 2
TIRE,RR,AT22X10-10,KT847M(D) 41002A 41002-1671 2
RIM,FR,10X5.5,SILVER NO.40 41025 41025-1150-5A 2
RIM,RR,10X8.5,SILVER NO.40 41025A 41025-1151-5A 2
NUT,LOCK,10MM 92210 92210-1204 16
